P720

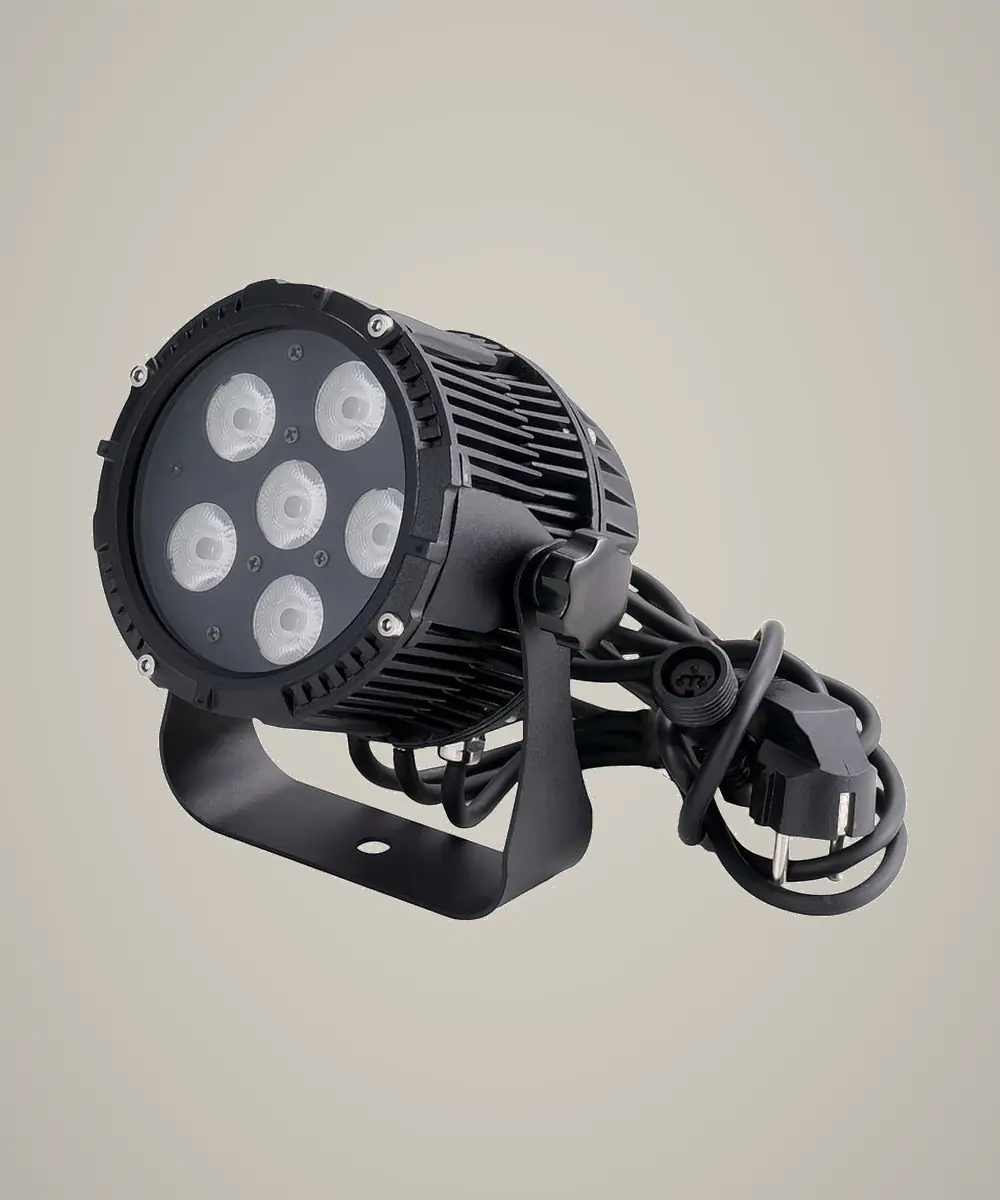

P720 is an IP65 LED PAR light with 6pcs 20W RGBW LEDs, 12° / 20° / 40° optional optical angles, 4/8CH DMX512 channel modes, Sound active, Master-slave, Auto color change and DMX512 control. It supports RGBW dimming, CTO color mixing, 0-100% linear dimming and 1-25Hz strobe.
| Power consumption | Approx. 80W |
|---|---|
| Power input | AC90-240V |
| Light source | 6pcs 20W RGBW LED |
| LED configuration | 6pcs 20W RGBW LEDs |
| Color system | RGBW; 8 built-in common colors; CTO color mixing: 3000K-8000K; Color jump; Color fade; Color pulse; Sound active color effect |
| CCT / color temperature | CTO 3000K-8000K |
| Beam angle | 12° / 20° / 40° optional |
| Control | DMX512; Sound active; Master-slave; Auto color change |
| DMX channels | 4/8CH |
| Dimming | RGBW dimming; Master dimming; 0-100% linear dimming |
| Strobe | 1-25Hz |

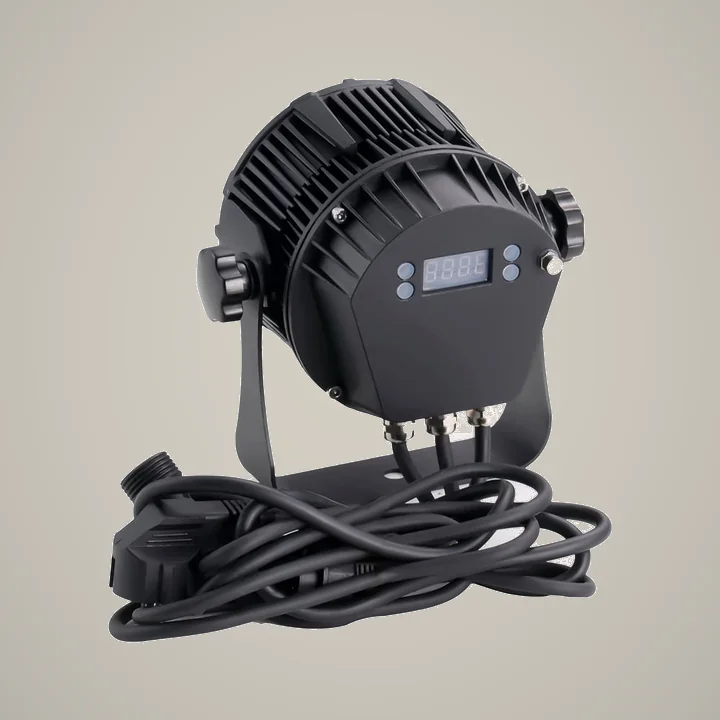

| Display | Digital display; MENU / UP / DOWN / ENTER buttons |
| IP rating | IP65 |
| Working temperature | -25℃ to 40℃ |
| Housing material | High-strength aluminum alloy |
| Product size | 17 x 11 x 17cm |
| Net weight | 1.7KG |
Specifications are based on the current P720 product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is P720?
P720 is a LED PAR Light. P720 is an IP65 LED PAR light with 6pcs 20W RGBW LEDs, 12° / 20° / 40° optional optical angles, 4/8CH DMX512 channel modes, Sound active, Master-slave, Auto color change and DMX512 control. It supports RGBW dimming, CTO color mixing, 0-100% linear dimming and 1-25Hz strobe.
What light source does P720 use?
The published light-source specification for P720 is 6pcs 20W RGBW LED.
What is the IP rating of P720?
The published protection rating for P720 is IP65. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does P720 provide?
The published optical range for P720 is 12° / 20° / 40° optional.
Which DMX channel modes does P720 support?
The current product record lists 4/8CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is P720 typically used?
Recommended applications include Outdoor events, Stage performance and concerts, Clubs, bars and small stages, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with P720
Overview
P720 is a led par light in the LED PAR range. Its published light-source specification is 6pcs 20W RGBW LED, the optical record lists 12° / 20° / 40° optional, and the enclosure rating is IP65. The available control record lists 4/8CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Outdoor events, Stage performance and concerts, Clubs, bars and small stages, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 12° / 20° / 40° optional optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP65 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 4/8CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 6pcs 20W RGBW LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
