PAR5403

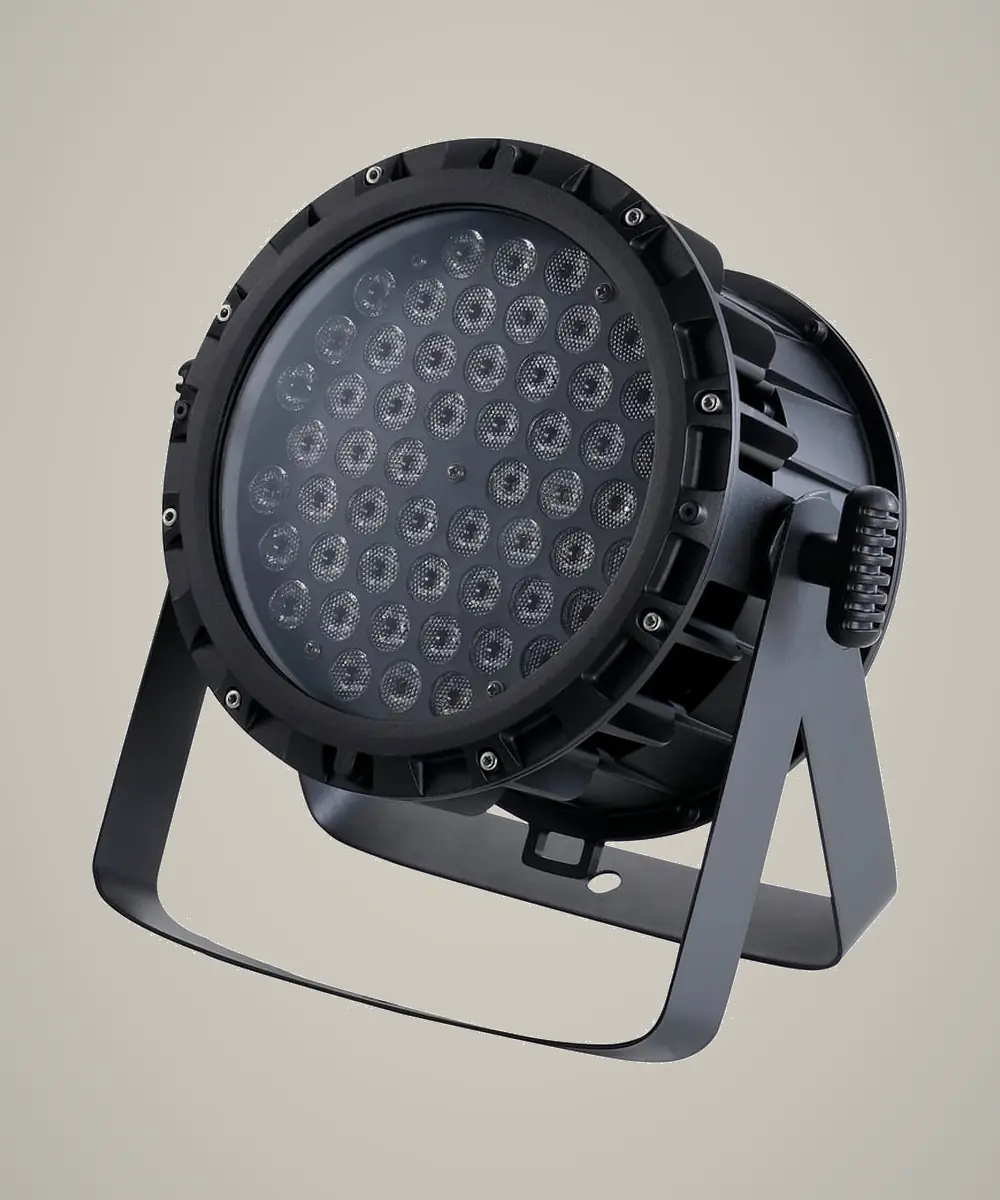

PAR5403 is an LED PAR light with 54pcs 3W RGBW LEDs, approx. 170W power consumption, 4/8CH DMX512 channel modes, Sound active, Master-slave, Auto color change and DMX512 control. It supports RGBW dimming, total dimming, strobe, built-in colors, color jump, color fade and pulse effects.
| Power consumption | Approx. 170W |
|---|---|
| Power input | AC90-240V |
| Light source | 54pcs 3W RGBW LED |
| LED configuration | 54pcs 3W RGBW LEDs |
| Color system | RGBW; 8 built-in common colors; Color jump; Color fade; Color pulse; Sound active color effect |
| Control | DMX512; Sound active; Master-slave; Auto color change |
| DMX channels | 4/8CH |
| Dimming | RGBW dimming; Master dimming from dark to bright |
| Strobe | RGBW master strobe; Strobe speed from slow to fast |
| Display | Digital display; MENU / UP / DOWN / ENTER buttons |
Specifications are based on the current PAR5403 product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is PAR5403?
PAR5403 is a LED PAR Light. PAR5403 is an LED PAR light with 54pcs 3W RGBW LEDs, approx. 170W power consumption, 4/8CH DMX512 channel modes, Sound active, Master-slave, Auto color change and DMX512 control. It supports RGBW dimming, total dimming, strobe, built-in colors, color jump, color fade and pulse effects.
What light source does PAR5403 use?
The published light-source specification for PAR5403 is 54pcs 3W RGBW LED.
What is the IP rating of PAR5403?
The published protection rating for PAR5403 is TBC. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does PAR5403 provide?
The published optical range for PAR5403 is TBC.
Which DMX channel modes does PAR5403 support?
The current product record lists 4/8CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is PAR5403 typically used?
Recommended applications include Stage performance, Clubs and bars, KTV and entertainment venues, Small events and rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with PAR5403
Overview
PAR5403 is a led par light in the LED PAR range. Its published light-source specification is 54pcs 3W RGBW LED, the optical record lists TBC, and the enclosure rating is TBC. The available control record lists 4/8CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Stage performance, Clubs and bars, KTV and entertainment venues, Small events and rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The TBC optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published TBC rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 4/8CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 54pcs 3W RGBW LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
