MH-1000ST

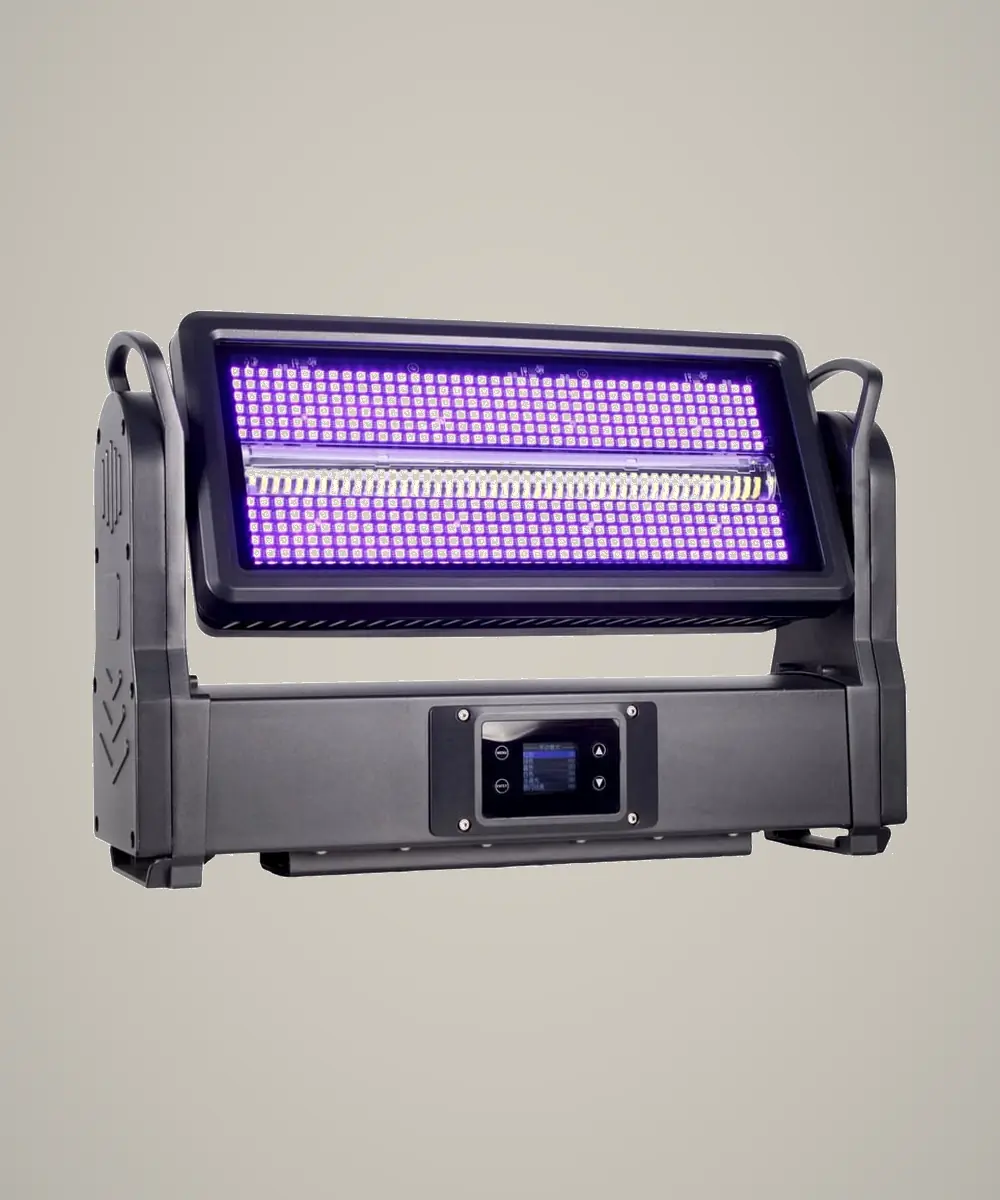

MH-1000ST is an IP66 LED Waterproof Strobe light with 480pcs 0.5W RGB LEDs, 144pcs 5W 6500K LEDs, RGBW linear dimming, 120° beam angle, 185° tilt movement, DMX512 control, RDM protocol and 7CH/14CH/42CH control modes.
| Power consumption | 1000W |
|---|---|
| Power input | AC100-240V, 50/60HZ |
| Light source | 480pcs 0.5W LED RGB; 144pcs 5W LED 6500K; Optional 1080pcs 0.5W RGBW LED |
| LED configuration | 480pcs 0.5W RGB LEDs; 144pcs 5W 6500K LEDs; Optional 1080pcs 0.5W RGBW LEDs |
| Color system | RGBW linear dimming; RGB LEDs; 6500K white LEDs |
| CCT / color temperature | 6500K |
| Beam angle | 120° |
| Control | DMX512 control, RDM protocol, built-in programs |
| DMX channels | 7CH/14CH/42CH |
| Dimming | 0-100% linear dimming |
| Strobe | 1-25Hz |
| Tilt | 185° 16bit, automatic Tilt position correction |
| Display | LCD display; Graphical menu display; Four buttons touch panel |
| IP rating | IP66 |
| Product size | 482 x 178 x 243mm |
| Net weight | 10KG |
Specifications are based on the current MH-1000ST product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is MH-1000ST?
MH-1000ST is a LED Waterproof Strobe Light. MH-1000ST is an IP66 LED Waterproof Strobe light with 480pcs 0.5W RGB LEDs, 144pcs 5W 6500K LEDs, RGBW linear dimming, 120° beam angle, 185° tilt movement, DMX512 control, RDM protocol and 7CH/14CH/42CH control modes.
What light source does MH-1000ST use?
The published light-source specification for MH-1000ST is 480pcs 0.5W LED RGB; 144pcs 5W LED 6500K; Optional 1080pcs 0.5W RGBW LED.
What is the IP rating of MH-1000ST?
The published protection rating for MH-1000ST is IP66. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does MH-1000ST provide?
The published optical range for MH-1000ST is 120°.
Which DMX channel modes does MH-1000ST support?
The current product record lists 7CH/14CH/42CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is MH-1000ST typically used?
Recommended applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with MH-1000ST
Overview
MH-1000ST is a led waterproof strobe light in the LED Strobe range. Its published light-source specification is 480pcs 0.5W LED RGB; 144pcs 5W LED 6500K; Optional 1080pcs 0.5W RGBW LED, the optical record lists 120°, and the enclosure rating is IP66. The available control record lists 7CH/14CH/42CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 120° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP66 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 7CH/14CH/42CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 480pcs 0.5W LED RGB; 144pcs 5W LED 6500K; Optional 1080pcs 0.5W RGBW LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
