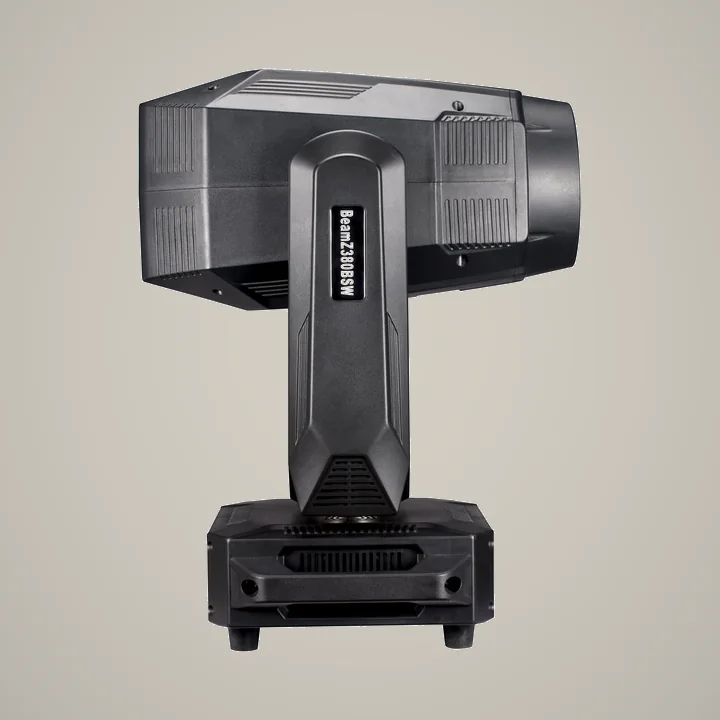

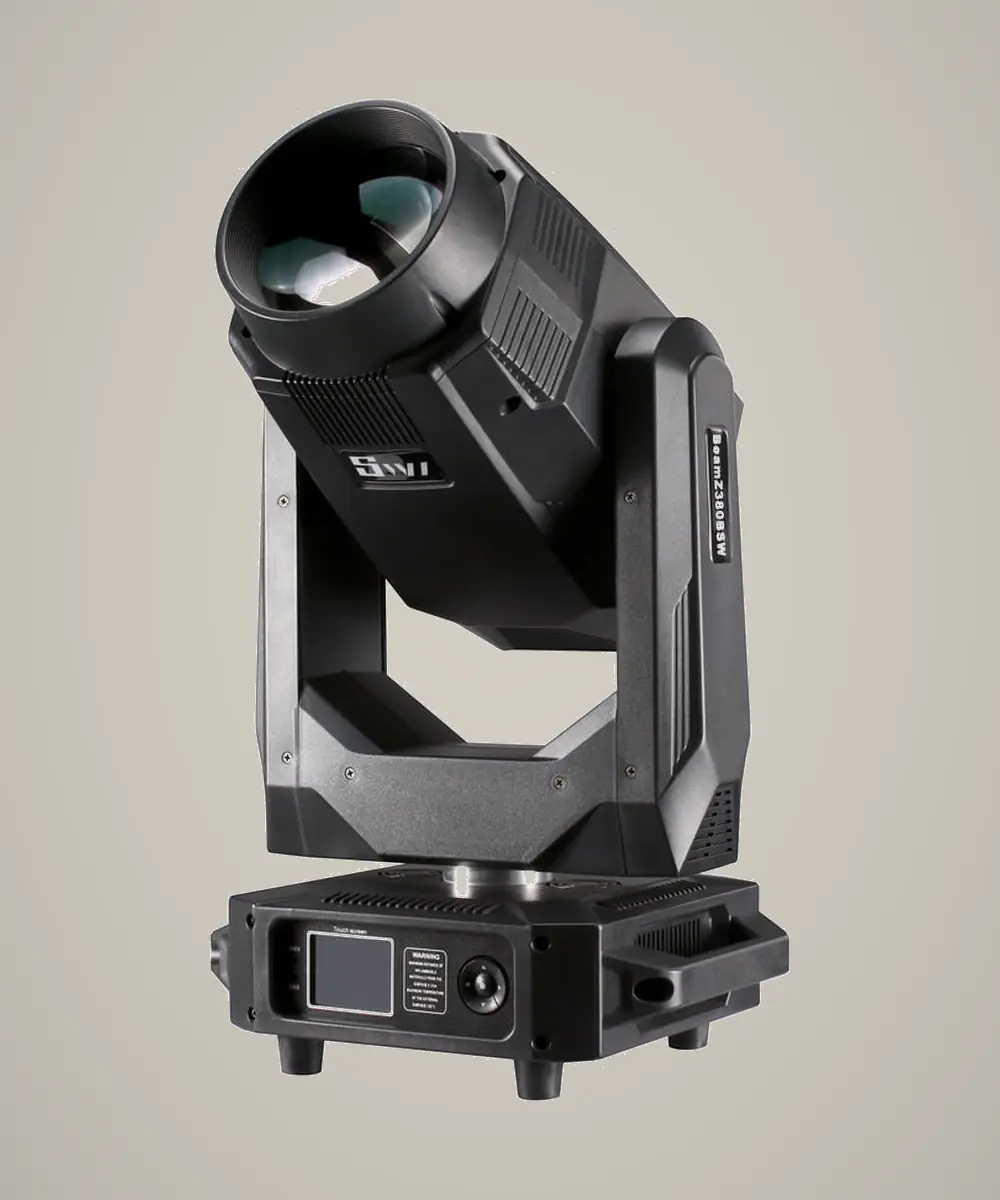

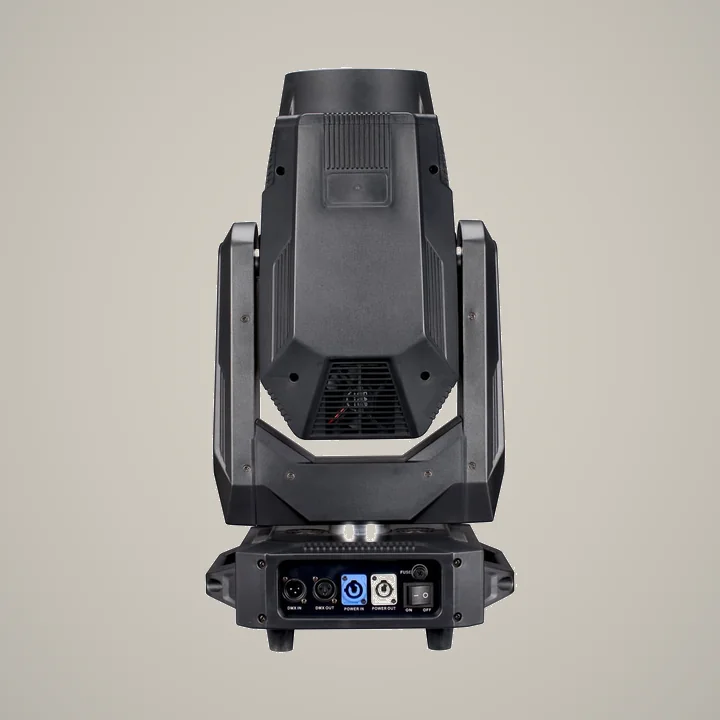

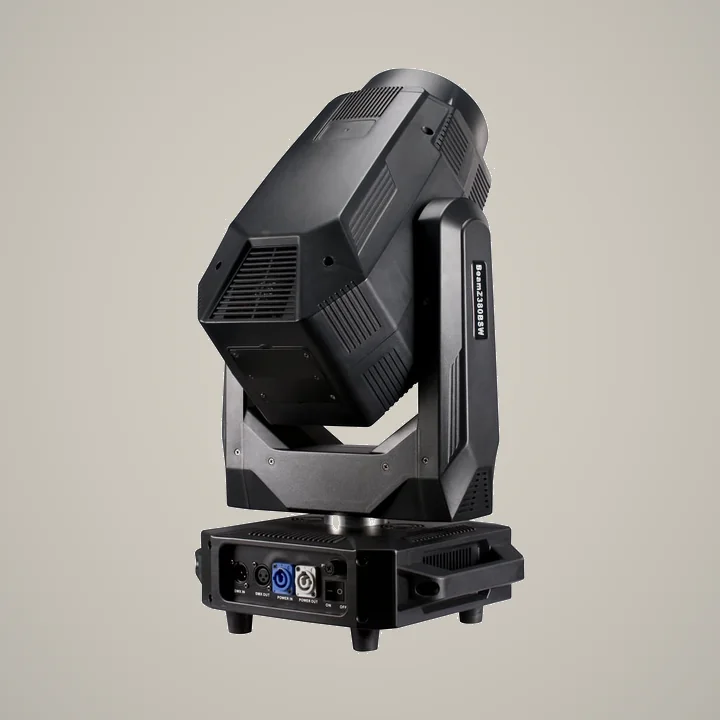

MINI-380BSW
Mini 380 3IN1 is a Beam Spot Wash moving head light with OSRAM SIRIUS HRI 371W lamp source, 8500K color temperature, Beam / Spot / Wash 3-in-1 optical design, 22/26CH DMX control, dual rotating prism effects, electronic focus, frost, RDM function and LCD touch screen control.
| Power consumption | 600W |
|---|---|
| Power input | AC100V-240V ±10%, 50-60Hz |
| Light source | OSRAM SIRIUS HRI 371W |
| LED configuration | OSRAM SIRIUS HRI 371W |
| Color system | 1 color wheel; 9 colors + white; Half color; Bi-directional color flow; Color change and half-color rainbow effect |
| CCT / color temperature | 8500K |
| Beam angle | Beam mode: 2°; Spot mode: 4°-52°; Wash mode: 2°-46° |
| Zoom range | Spot mode: 4°-52°; Wash mode: 2°-46° |
| Control | DMX; Auto mode; Master-slave; Sound active; RDM |
| DMX channels | 22/26CH |
| Strobe | Double-blade strobe, 0.5-9 times/second |
| Pan | 540°, 16Bit |
| Tilt | 270°, 16Bit |
| Prism | Dual rotating prism effects; 8-facet prism + 6-facet prism combination; Two independent rotating prisms; Prism focus: linear focus zoom in / zoom out, adjustable clarity |
| Gobo wheel | Fixed Gobo Wheel: 9 gobos + white, each gobo with shaking effect, forward/reverse flowing effect; Rotating Gobo Wheel: 7 replaceable gobos + white, each gobo with forward/reverse rotation and shaking effect, forward/reverse flowing effect |
| Color wheel | 1 color wheel; 9 colors + white; Half color; Bi-directional flow; Color change and half-color rainbow effect |
| Frost | 0%-100% uniform soft frost effect |
| Display | LCD display; Touch screen + button control; Chinese / English display interface; 180° intelligent display flip |
| IP rating | IP20 |
| Working temperature | -20°C to 40°C |
| Housing material | High-temperature resistant fireproof engineering plastic injection molding |
| Product size | 578H x 325W x 249D mm |
| Gross weight | 17.5KG |
Specifications are based on the current MINI 380BSW product record and may change without prior notice. CRI, Luminous flux, Packing size, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is MINI-380BSW?
MINI-380BSW is a Beam Spot Wash Moving Head Light. Mini 380 3IN1 is a Beam Spot Wash moving head light with OSRAM SIRIUS HRI 371W lamp source, 8500K color temperature, Beam / Spot / Wash 3-in-1 optical design, 22/26CH DMX control, dual rotating prism effects, electronic focus, frost, RDM function and LCD touch screen control.
What light source does MINI-380BSW use?
The published light-source specification for MINI-380BSW is OSRAM SIRIUS HRI 371W.
What is the IP rating of MINI-380BSW?
The published protection rating for MINI-380BSW is IP20. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does MINI-380BSW provide?
The published optical range for MINI-380BSW is Spot mode: 4°-52°; Wash mode: 2°-46°.
Which DMX channel modes does MINI-380BSW support?
The current product record lists 22/26CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is MINI-380BSW typically used?
Recommended applications include Stage performance, Concerts and live shows, Clubs and bars, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with MINI-380BSW
Overview
MINI-380BSW is a beam spot wash moving head light in the Beam Spot Wash range. Its published light-source specification is OSRAM SIRIUS HRI 371W, the optical record lists Spot mode: 4°-52°; Wash mode: 2°-46°, and the enclosure rating is IP20. The available control record lists 22/26CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Stage performance, Concerts and live shows, Clubs and bars, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The Spot mode: 4°-52°; Wash mode: 2°-46° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP20 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 22/26CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, OSRAM SIRIUS HRI 371W, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
