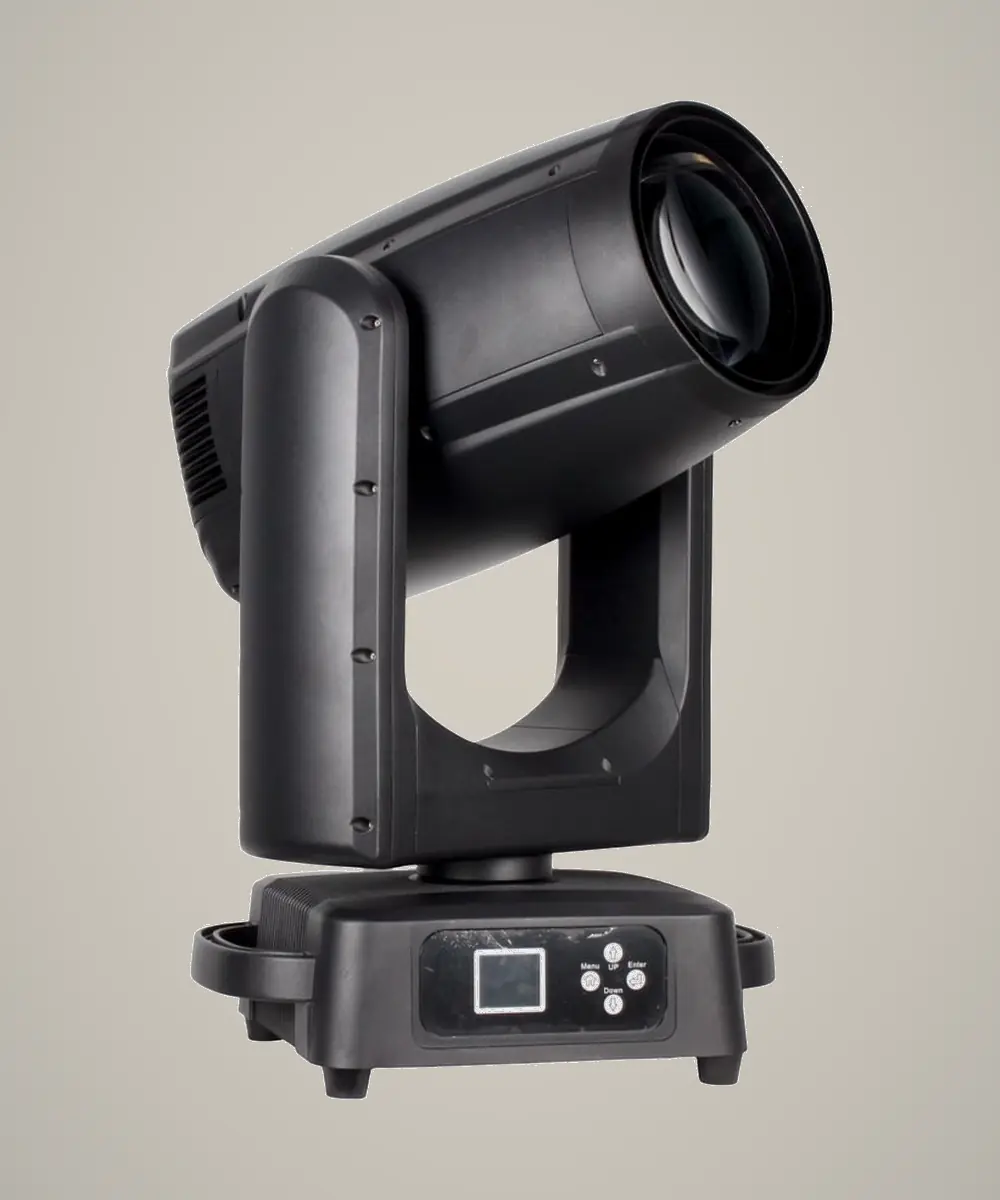

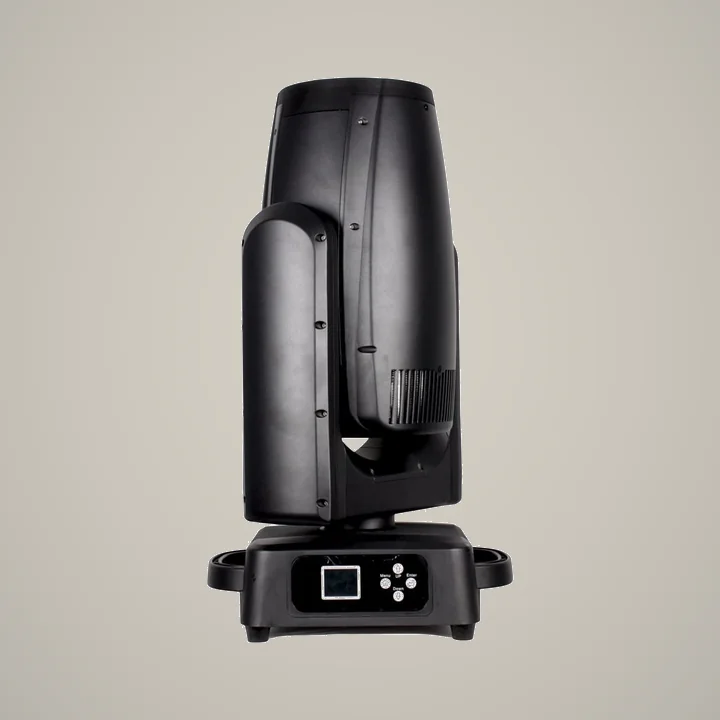

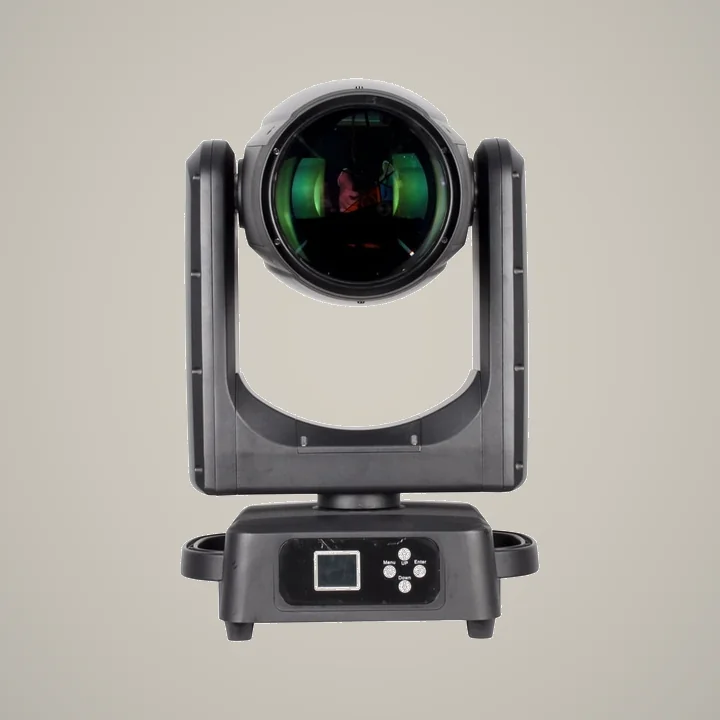

HT420BSW
HT420BSW is a waterproof BSW moving head light with USHIO NSL420 light source, 2-40° beam angle, IP66 rating, rotating gobos, static gobos, color wheel, prism, frost, DMX512 control, RDM protocol and 18CH control mode.
| Power consumption | 580W |
|---|---|
| Power input | AC90-260V, 50/60HZ |
| Light source | USHIO NSL420, CCT 8000K |
| LED configuration | USHIO NSL420 |
| Color system | 13 colors + open; half color and rainbow effect |
| CCT / color temperature | CCT 8000K |
| Beam angle | 2-40° |
| Zoom range | 2-40° |
| Control | DMX512 control, RDM protocol, built-in programs |
| DMX channels | 18CH |
| Dimming | 0-100% linear dimming |
| Strobe | 1-25Hz or random |
| Pan | 540° 16bit, automatic Pan/Tilt position correction |
| Tilt | 270° 16bit, automatic Pan/Tilt position correction |
| Prism | Eight facet prism |
| Gobo wheel | Rotating wheel: 7 gobos + open; Static wheel: 14 gobos + open; Bi-directional rotation with gobo shaking |
| Color wheel | 13 colors + open, half color and rainbow effect |
| Display | LCD display; Graphical menu display; Four buttons touch panel |
| IP rating | IP66 |
| Product size | 472 x 320 x 709mm |
| Net weight | 23KG |
Specifications are based on the current HT420BSW product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is HT420BSW?
HT420BSW is a Waterproof BSW Moving Head Light. HT420BSW is a waterproof BSW moving head light with USHIO NSL420 light source, 2-40° beam angle, IP66 rating, rotating gobos, static gobos, color wheel, prism, frost, DMX512 control, RDM protocol and 18CH control mode.
What light source does HT420BSW use?
The published light-source specification for HT420BSW is USHIO NSL420, CCT 8000K.
What is the IP rating of HT420BSW?
The published protection rating for HT420BSW is IP66. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does HT420BSW provide?
The published optical range for HT420BSW is 2-40°.
Which DMX channel modes does HT420BSW support?
The current product record lists 18CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is HT420BSW typically used?
Recommended applications include Outdoor events, Concerts and live shows, Stage performance, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with HT420BSW
Overview
HT420BSW is a waterproof bsw moving head light in the Outdoor Beam range. Its published light-source specification is USHIO NSL420, CCT 8000K, the optical record lists 2-40°, and the enclosure rating is IP66. The available control record lists 18CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Outdoor events, Concerts and live shows, Stage performance, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 2-40° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP66 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 18CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, USHIO NSL420, CCT 8000K, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
