PN400ST

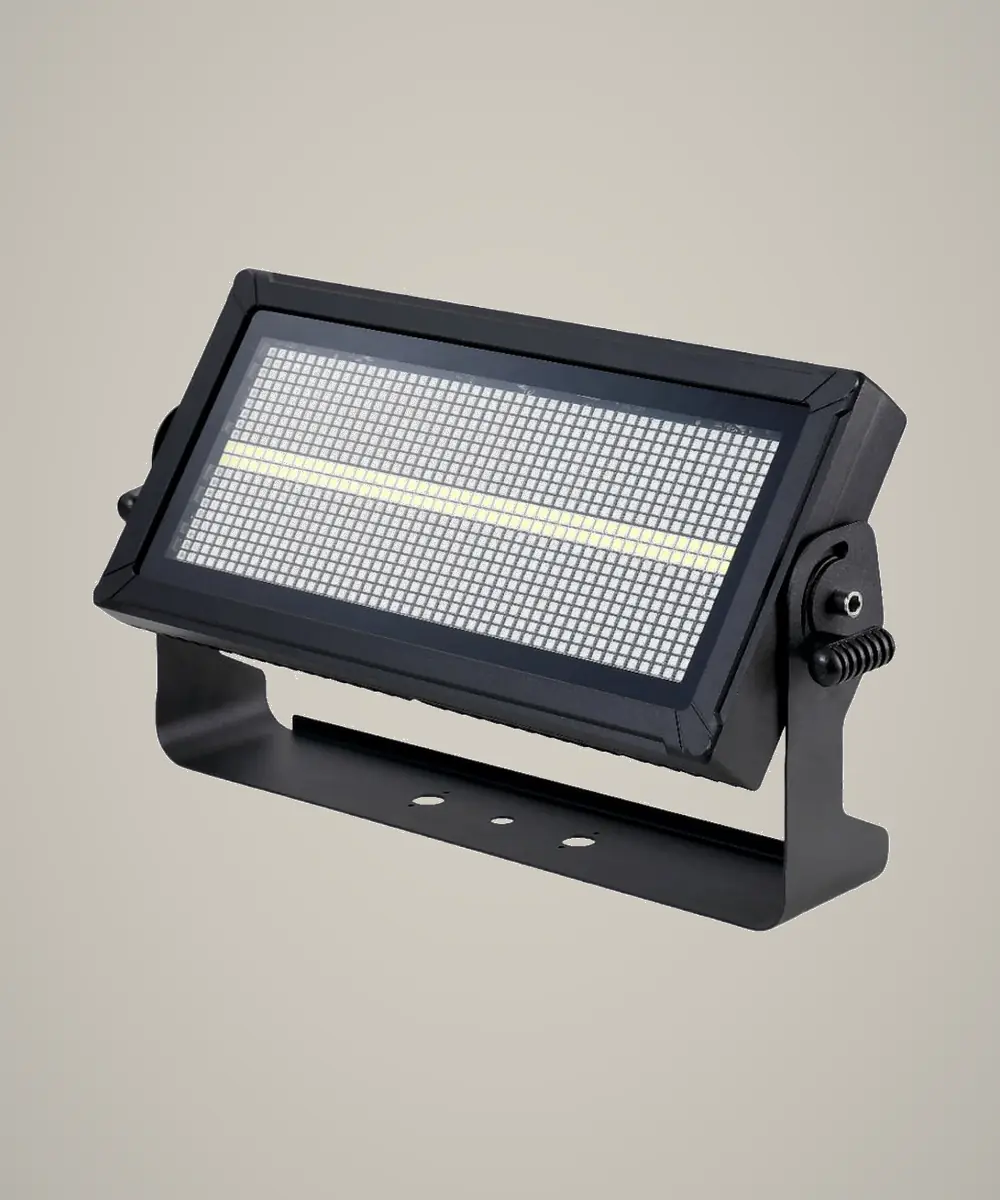

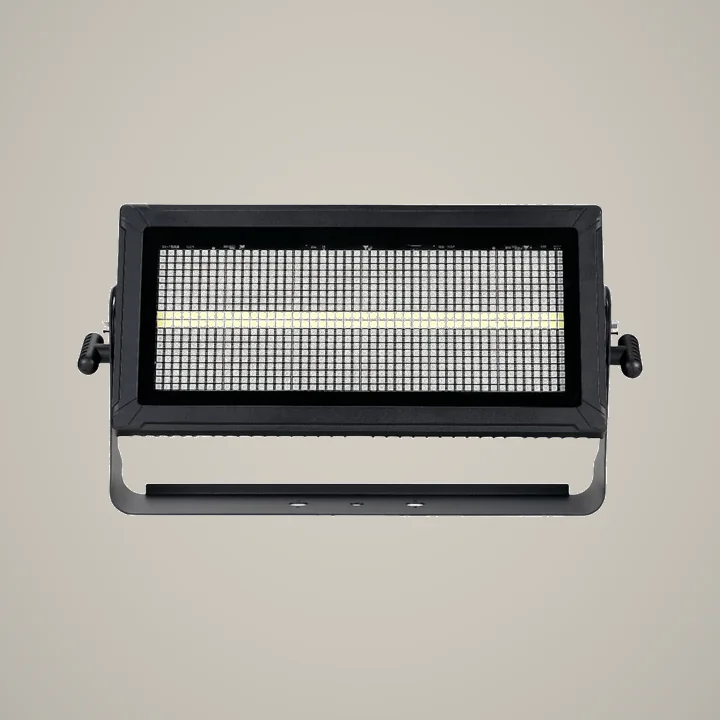

PN400ST is an IP65 LED strobe light with 864pcs RGB 5050 LEDs 0.3W and 96pcs white 7070 LEDs 3W. It supports 12 RGB segments + 12 white segments, 4/16/48CH DMX channel modes, DMX512, Auto mode, Master-slave, Sound active, RDM function, 16bit 0-100% linear dimming, 1-30Hz strobe, chase and strobe effects.
| Power consumption | 380W |
|---|---|
| Power input | AC100-240V, 50/60HZ |
| Light source | 864pcs RGB 5050 LEDs 0.3W; 96pcs W 7070 LEDs 3W; 12 RGB segments + 12 W segments |
| LED configuration | 864pcs RGB 5050 LEDs 0.3W; 96pcs W 7070 LEDs 3W |
| Color system | RGB; White; RGBW effects; Background color; 12 RGB segments + 12 white segments |
| Control | DMX512; Auto mode; Master-slave; Sound active; RDM function |
| DMX channels | 4CH / 16CH / 48CH |
| Dimming | 16bit 0-100% linear dimming |
| Strobe | 1-30Hz |

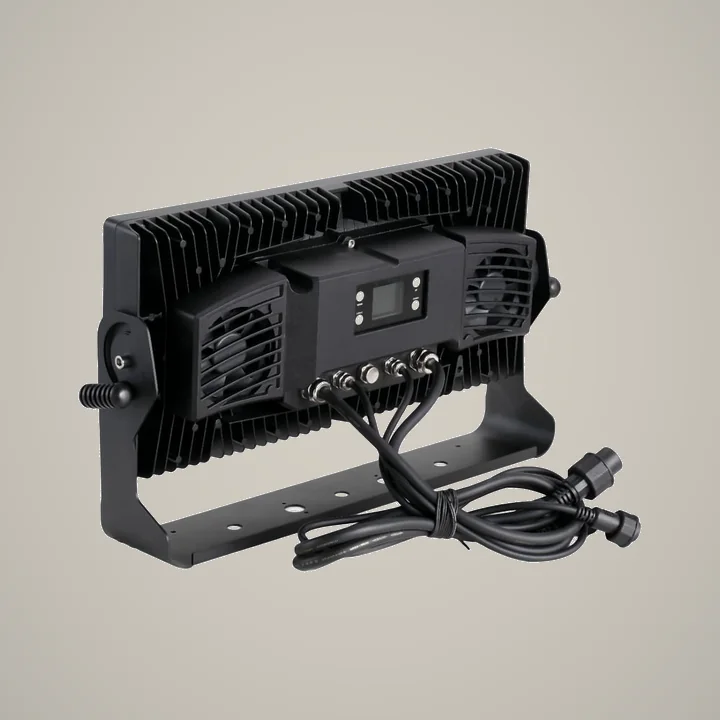

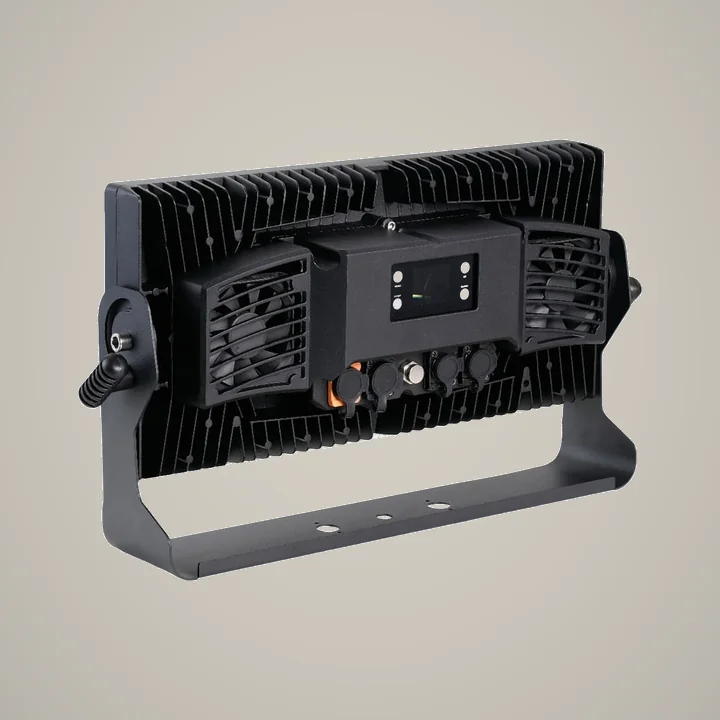

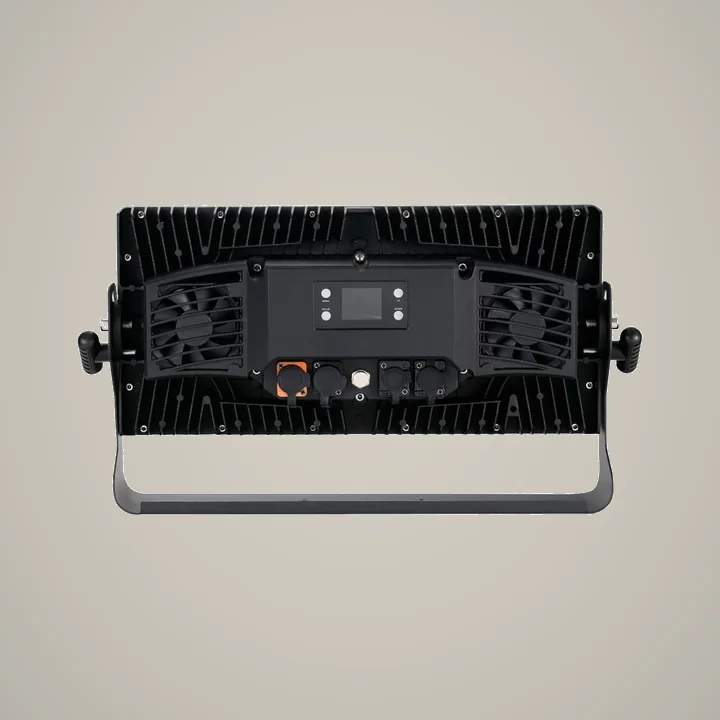

| Display | Digital menu display; Chinese / English language selection; Display reverse setting; Screen saver; Software version display; MENU / UP / DOWN / ENTER buttons |
| IP rating | IP65 |
| Working temperature | -30℃ to 50℃ |
| Housing material | Metal, black |
Specifications are based on the current PN400ST product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is PN400ST?
PN400ST is a LED Strobe Light. PN400ST is an IP65 LED strobe light with 864pcs RGB 5050 LEDs 0.3W and 96pcs white 7070 LEDs 3W. It supports 12 RGB segments + 12 white segments, 4/16/48CH DMX channel modes, DMX512, Auto mode, Master-slave, Sound active, RDM function, 16bit 0-100% linear dimming, 1-30Hz strobe, chase and strobe effects.
What light source does PN400ST use?
The published light-source specification for PN400ST is 864pcs RGB 5050 LEDs 0.3W; 96pcs W 7070 LEDs 3W; 12 RGB segments + 12 W segments.
What is the IP rating of PN400ST?
The published protection rating for PN400ST is IP65. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does PN400ST provide?
The published optical range for PN400ST is TBC.
Which DMX channel modes does PN400ST support?
The current product record lists 4CH / 16CH / 48CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is PN400ST typically used?
Recommended applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Clubs, bars and rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with PN400ST
Overview
PN400ST is a led strobe light in the LED Strobe range. Its published light-source specification is 864pcs RGB 5050 LEDs 0.3W; 96pcs W 7070 LEDs 3W; 12 RGB segments + 12 W segments, the optical record lists TBC, and the enclosure rating is IP65. The available control record lists 4CH / 16CH / 48CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Clubs, bars and rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The TBC optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP65 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 4CH / 16CH / 48CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 864pcs RGB 5050 LEDs 0.3W; 96pcs W 7070 LEDs 3W; 12 RGB segments + 12 W segments, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
