GY-3IP

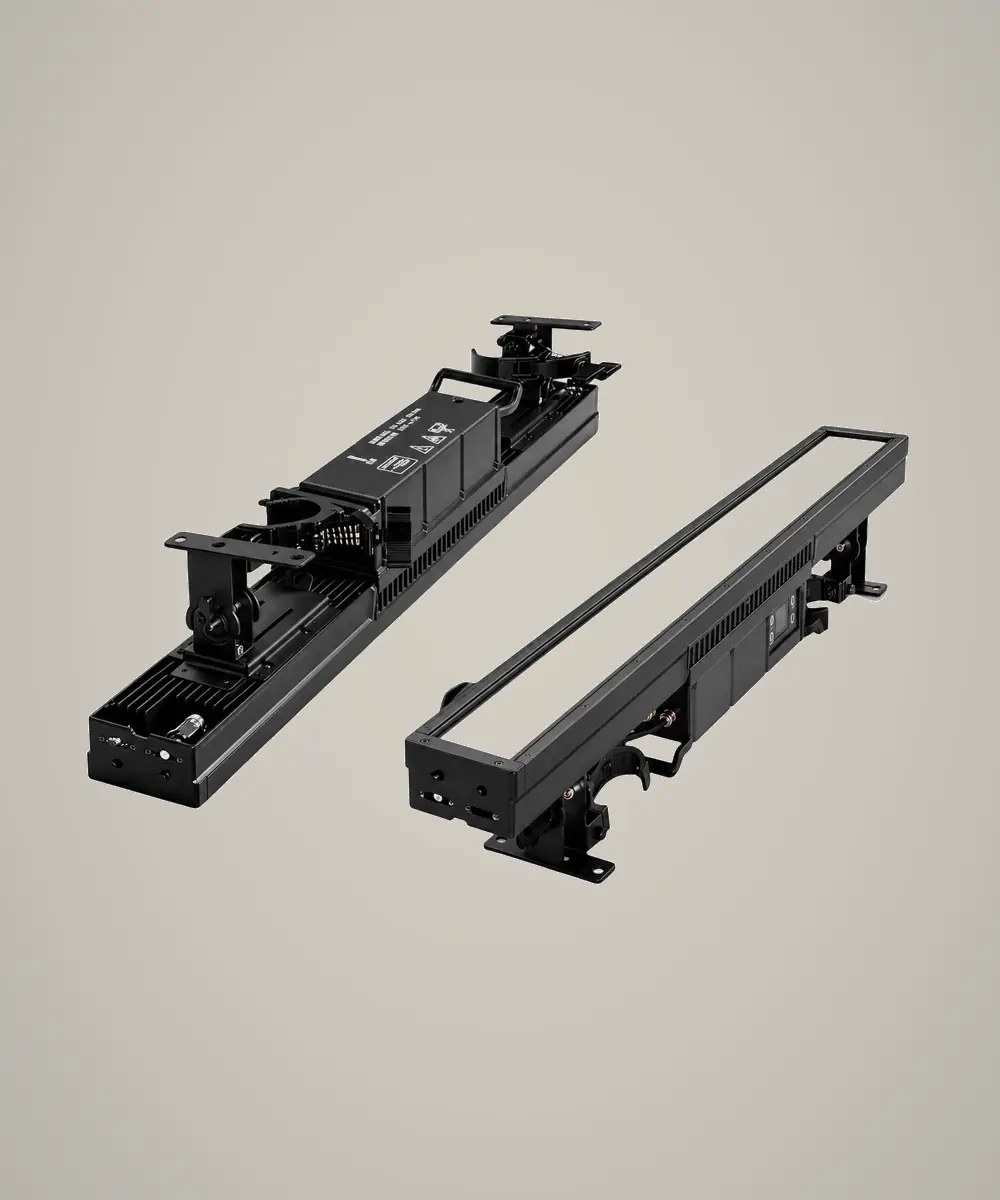

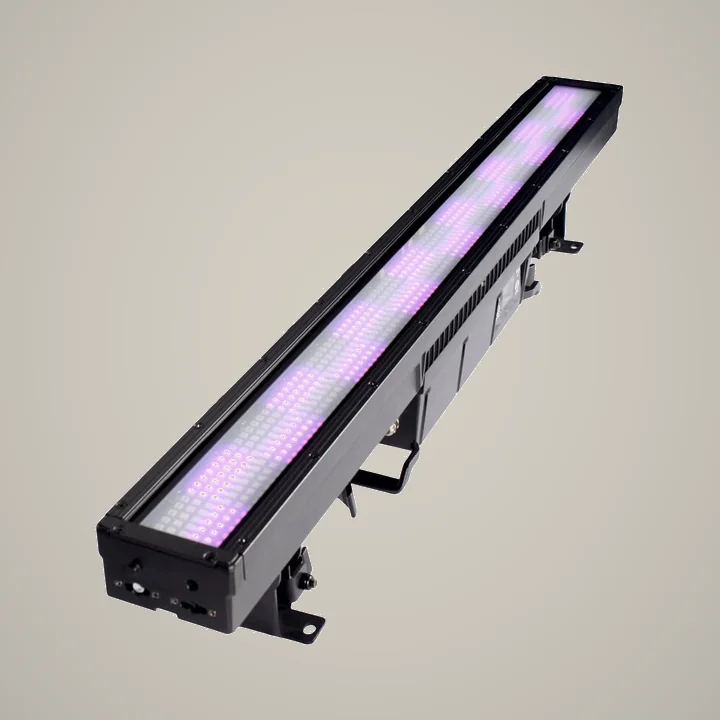

GY-3IP is an IP66 LED linear strobe light with 672 RGB LEDs and 112 WW LEDs. It features 32-zone independent RGB color control, 16-zone independent white control, powerful high-output strobe effects, static and dynamic effect macros, DMX512 control, RDM function and multiple DMX channel modes.
| Power input | AC100-240V, 50/60Hz |
|---|---|
| Light source | Color light: 672 RGB LEDs; White light: 112 WW LEDs |
| LED configuration | 672 RGB LEDs; 112 WW LEDs |
| Color system | RGB color mixing; WW white light; 32-zone independent RGB color control; 16-zone independent white control; Multiple static and dynamic effect macros; Powerful high-output strobe effects |
| CCT / color temperature | WW, exact CCT to be confirmed |
| Beam angle | Color light beam angle: 101°; White light beam angle: 108° |
| Control | DMX512 control; RDM function; Built-in programs; Remote DMX address change and fixture reset from controller |
| DMX channels | 7CH/15CH/17CH/33CH/70CH/112CH/117CH |
| Strobe | Powerful high-output strobe effect |

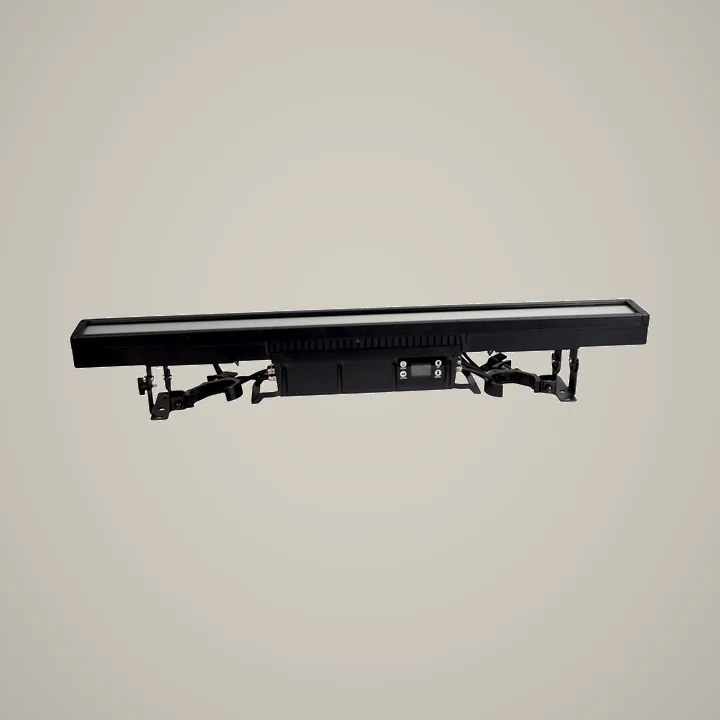

| Display | High-brightness color LCD display; 4 touch buttons |
| IP rating | IP66 |
| Working temperature | High temperature automatic protection; exact working temperature range to be confirmed |
Specifications are based on the current GY-3IP product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is GY-3IP?
GY-3IP is a LED Linear Strobe Light. GY-3IP is an IP66 LED linear strobe light with 672 RGB LEDs and 112 WW LEDs. It features 32-zone independent RGB color control, 16-zone independent white control, powerful high-output strobe effects, static and dynamic effect macros, DMX512 control, RDM function and multiple DMX channel modes.
What light source does GY-3IP use?
The published light-source specification for GY-3IP is Color light: 672 RGB LEDs; White light: 112 WW LEDs.
What is the IP rating of GY-3IP?
The published protection rating for GY-3IP is IP66. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does GY-3IP provide?
The published optical range for GY-3IP is Color light beam angle: 101°; White light beam angle: 108°.
Which DMX channel modes does GY-3IP support?
The current product record lists 7CH/15CH/17CH/33CH/70CH/112CH/117CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is GY-3IP typically used?
Recommended applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Clubs, bars and rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with GY-3IP
Overview
GY-3IP is a led linear strobe light in the LED Strobe range. Its published light-source specification is Color light: 672 RGB LEDs; White light: 112 WW LEDs, the optical record lists Color light beam angle: 101°; White light beam angle: 108°, and the enclosure rating is IP66. The available control record lists 7CH/15CH/17CH/33CH/70CH/112CH/117CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Clubs, bars and rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The Color light beam angle: 101°; White light beam angle: 108° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP66 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 7CH/15CH/17CH/33CH/70CH/112CH/117CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, Color light: 672 RGB LEDs; White light: 112 WW LEDs, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
