HL1940Z

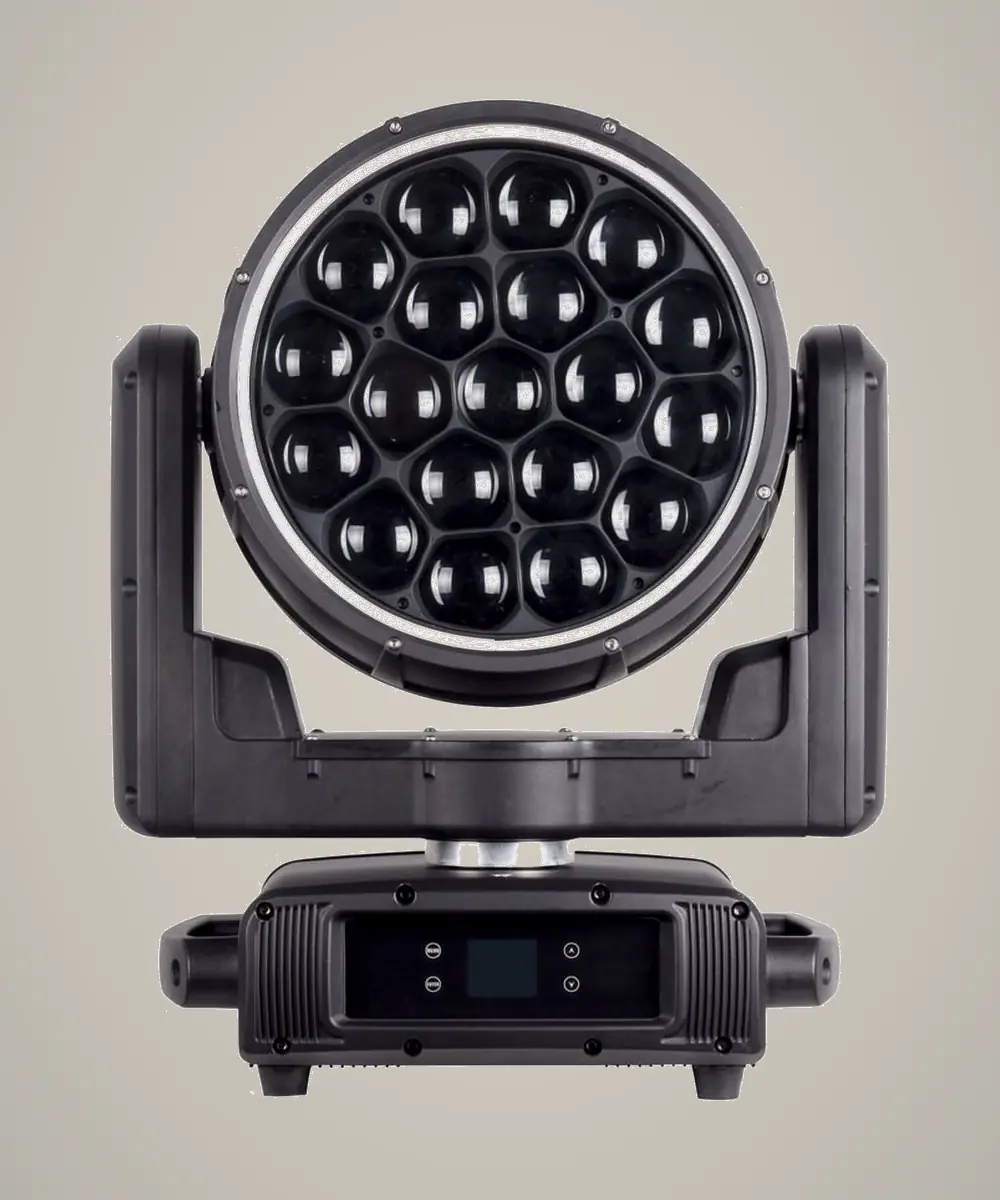

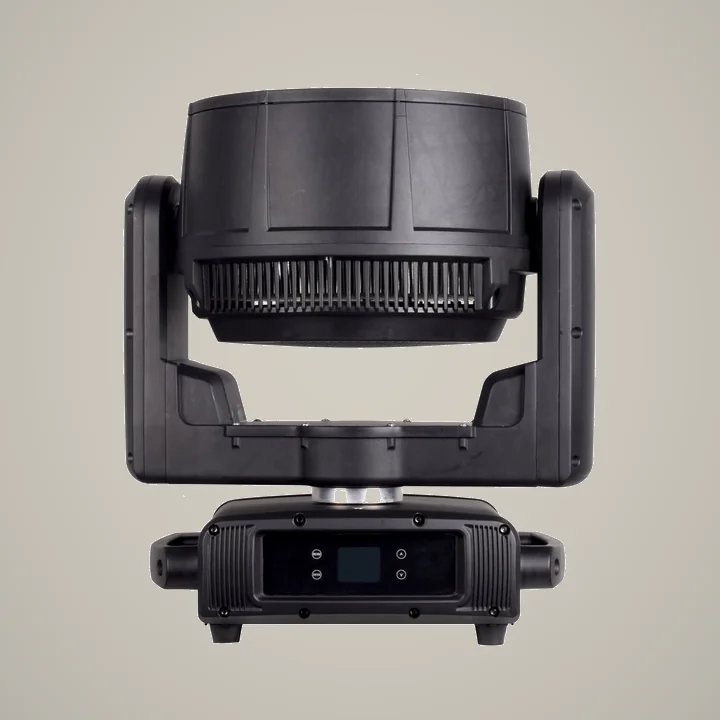

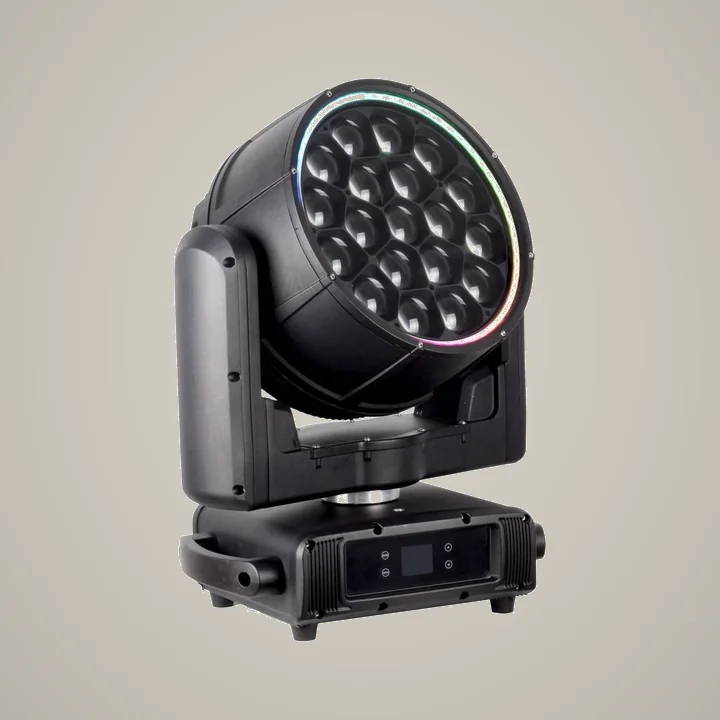

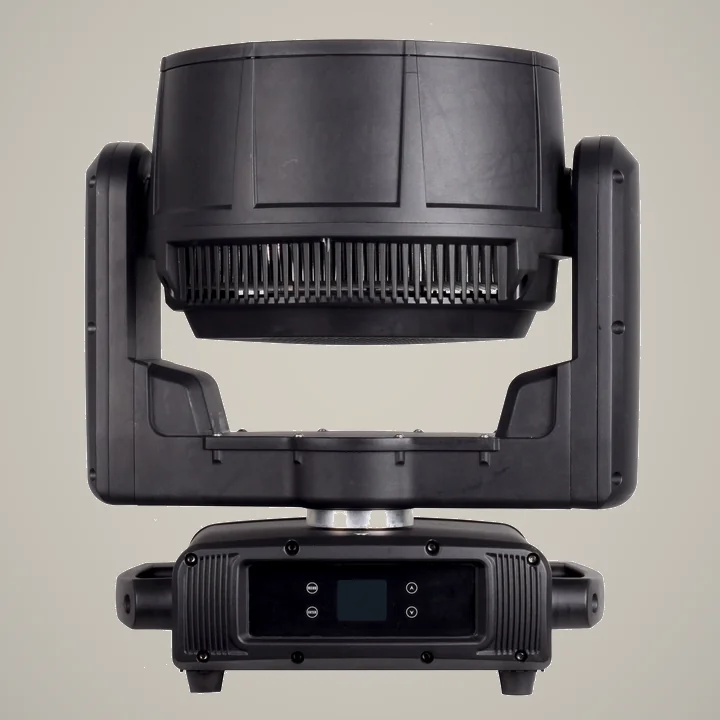

HL1940Z is an IP65 LED Wash Effects moving head light with 19pcs 40W RGBW 4 in 1 LEDs, 64 x 0.5W RGB LEDs, 3°-50° zoom range, Round Strip 120°, main LED pixel control, moonflower effect, strip pixel control, lens unlimited rotating, DMX512 control, RDM protocol and 21/35/43/78/92/97CH control modes.
| Power consumption | 820W |
|---|---|
| Power input | AC90-260V, 50/60HZ |
| Light source | 19pcs 40W LED RGBW 4 in 1; 64 x 0.5W RGB LED |
| LED configuration | 19pcs 40W RGBW 4 in 1 LEDs; 64 x 0.5W RGB LEDs |
| Color system | RGBW; RGB; Main LED pixel control; Strip pixel control |
| Beam angle | 3°-50° |
| Zoom range | 3°-50° |
| Control | DMX512 control; RDM protocol; Built-in programs; DMX cable upgrade; Remote reset DMX address and fixture by DMX |
| DMX channels | 21/35/43/78/92/97CH |
| Dimming | 0-100% linear dimming |
| Strobe | 1-25Hz or random |
| Pan | 540° 16bit, automatic Pan/Tilt position correction |
| Tilt | 270° 16bit, automatic Pan/Tilt position correction |
| Display | LCD display; 4 buttons touch panel |
| IP rating | IP65 |
| Product size | 390 x 223 x 496mm |
| Net weight | 18.5KG |
Specifications are based on the current HL1940Z product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is HL1940Z?
HL1940Z is a LED Wash Effects Moving Head Light. HL1940Z is an IP65 LED Wash Effects moving head light with 19pcs 40W RGBW 4 in 1 LEDs, 64 x 0.5W RGB LEDs, 3°-50° zoom range, Round Strip 120°, main LED pixel control, moonflower effect, strip pixel control, lens unlimited rotating, DMX512 control, RDM protocol and 21/35/43/78/92/97CH control modes.
What light source does HL1940Z use?
The published light-source specification for HL1940Z is 19pcs 40W LED RGBW 4 in 1; 64 x 0.5W RGB LED.
What is the IP rating of HL1940Z?
The published protection rating for HL1940Z is IP65. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does HL1940Z provide?
The published optical range for HL1940Z is 3°-50°.
Which DMX channel modes does HL1940Z support?
The current product record lists 21/35/43/78/92/97CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is HL1940Z typically used?
Recommended applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Clubs, bars and rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with HL1940Z
Overview
HL1940Z is a led wash effects moving head light in the LED Wash range. Its published light-source specification is 19pcs 40W LED RGBW 4 in 1; 64 x 0.5W RGB LED, the optical record lists 3°-50°, and the enclosure rating is IP65. The available control record lists 21/35/43/78/92/97CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Clubs, bars and rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 3°-50° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP65 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 21/35/43/78/92/97CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 19pcs 40W LED RGBW 4 in 1; 64 x 0.5W RGB LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
