GB100S

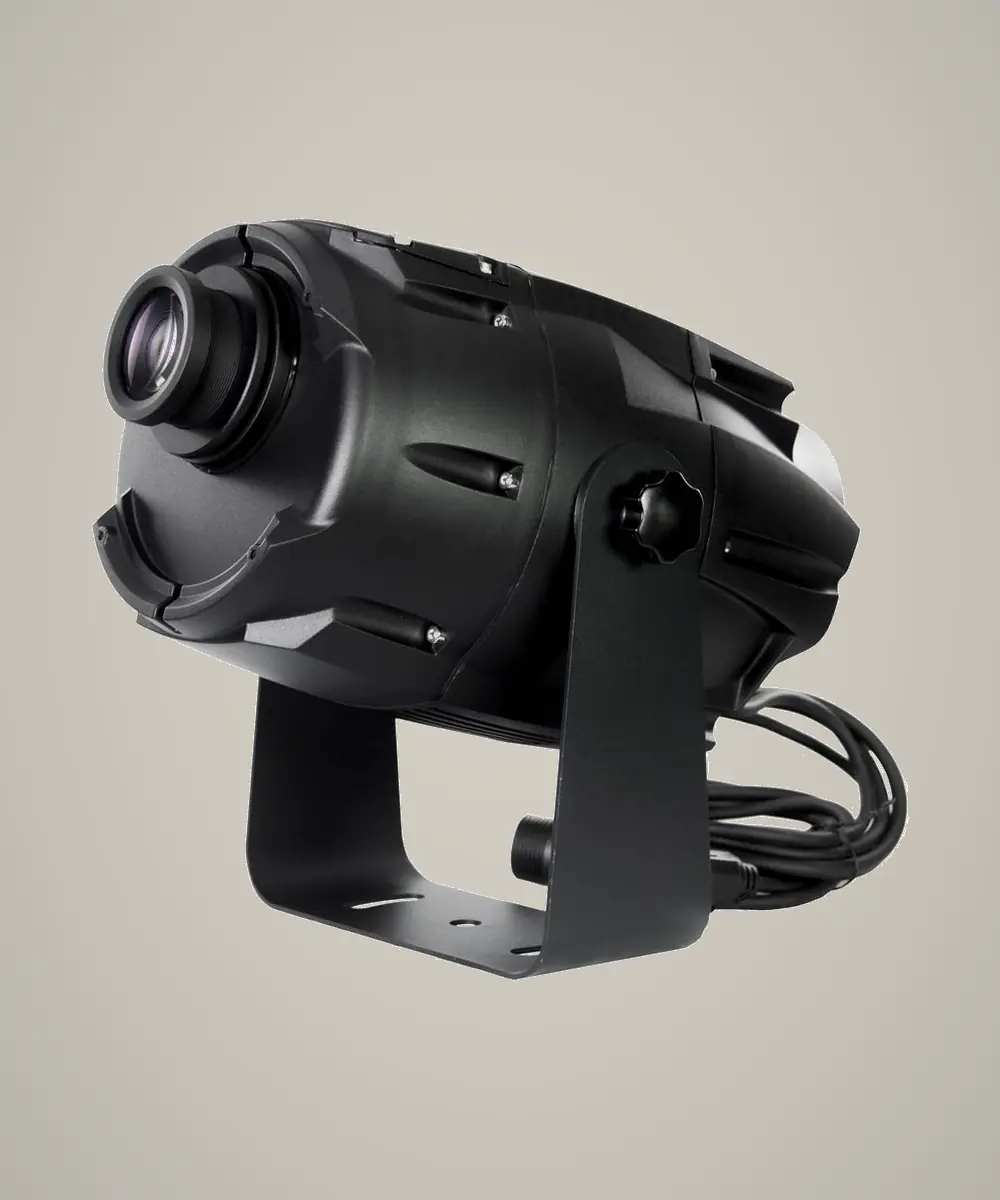

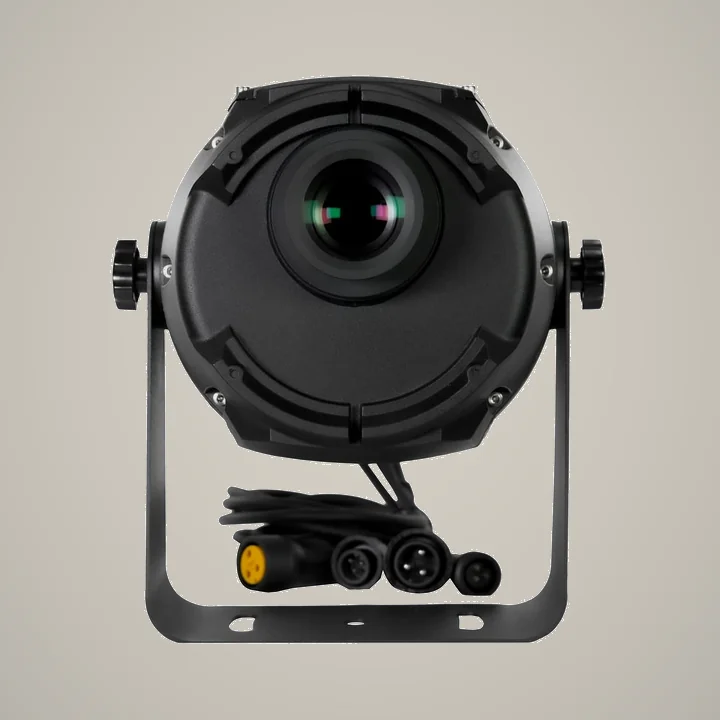

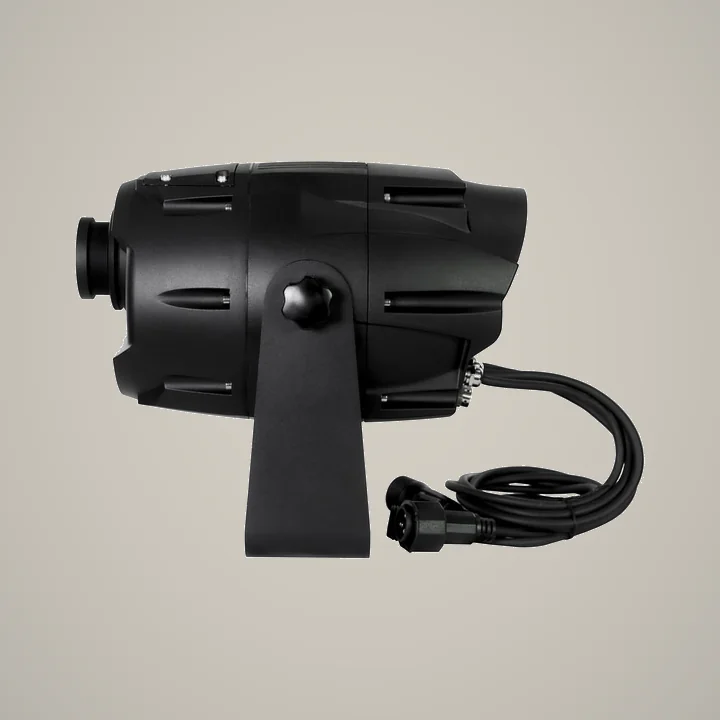

GB100S is an LED gobo projector light designed for outdoor pattern projection applications. It features an aluminum alloy housing, 5-piece wide-angle lens, clear LOGO projection, air cooling system, digital display menu, DMX512 control, Auto mode, manual control, dimming, strobe, gobo switching, gobo rotation and motor reset functions.
| Light source | LED |
|---|---|
| Beam angle | Wide-angle lens, exact angle to be confirmed |
| Control | DMX512; Auto mode; Manual mode; Factory reset; Motor reset |
| DMX channels | 6CH |
| Dimming | White dimming from dark to bright |
| Strobe | Strobe from slow to fast |
| Gobo wheel | Gobo wheel positioning: Gobo 1 / Gobo 2 / Gobo 3 / Gobo 4; Forward gobo switching; Reverse gobo switching; Gobo stop; Gobo rotation forward / stop / reverse |

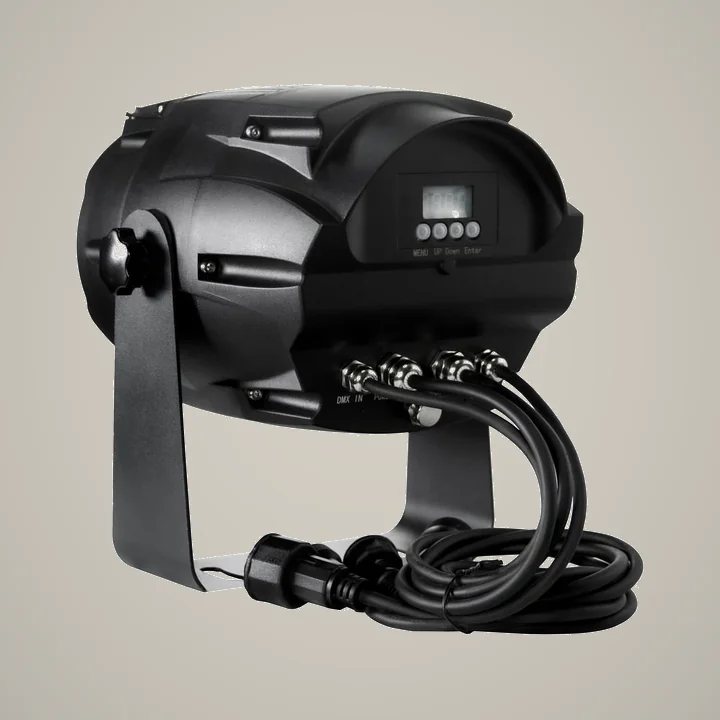

| Display | Digital display menu; MENU / UP / DOWN / ENTER buttons; Screen saver setting |
| Working temperature | LED protection temperature adjustable 0-99; exact working temperature range to be confirmed |
| Housing material | Aluminum alloy metal housing |
Specifications are based on the current GB100S product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is GB100S?
GB100S is a LED Gobo Projector Light. GB100S is an LED gobo projector light designed for outdoor pattern projection applications. It features an aluminum alloy housing, 5-piece wide-angle lens, clear LOGO projection, air cooling system, digital display menu, DMX512 control, Auto mode, manual control, dimming, strobe, gobo switching, gobo rotation and motor reset functions.
What light source does GB100S use?
The published light-source specification for GB100S is LED.
What is the IP rating of GB100S?
The published protection rating for GB100S is TBC. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does GB100S provide?
The published optical range for GB100S is Wide-angle lens, exact angle to be confirmed.
Which DMX channel modes does GB100S support?
The current product record lists 6CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is GB100S typically used?
Recommended applications include Architectural projection, Bridge and wall show lighting, Theme parks and squares, Bars, stages and outdoor decorative lighting. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with GB100S
Overview
GB100S is a led gobo projector light in the Effect range. Its published light-source specification is LED, the optical record lists Wide-angle lens, exact angle to be confirmed, and the enclosure rating is TBC. The available control record lists 6CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Architectural projection, Bridge and wall show lighting, Theme parks and squares, Bars, stages and outdoor decorative lighting. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The Wide-angle lens, exact angle to be confirmed optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published TBC rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 6CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
