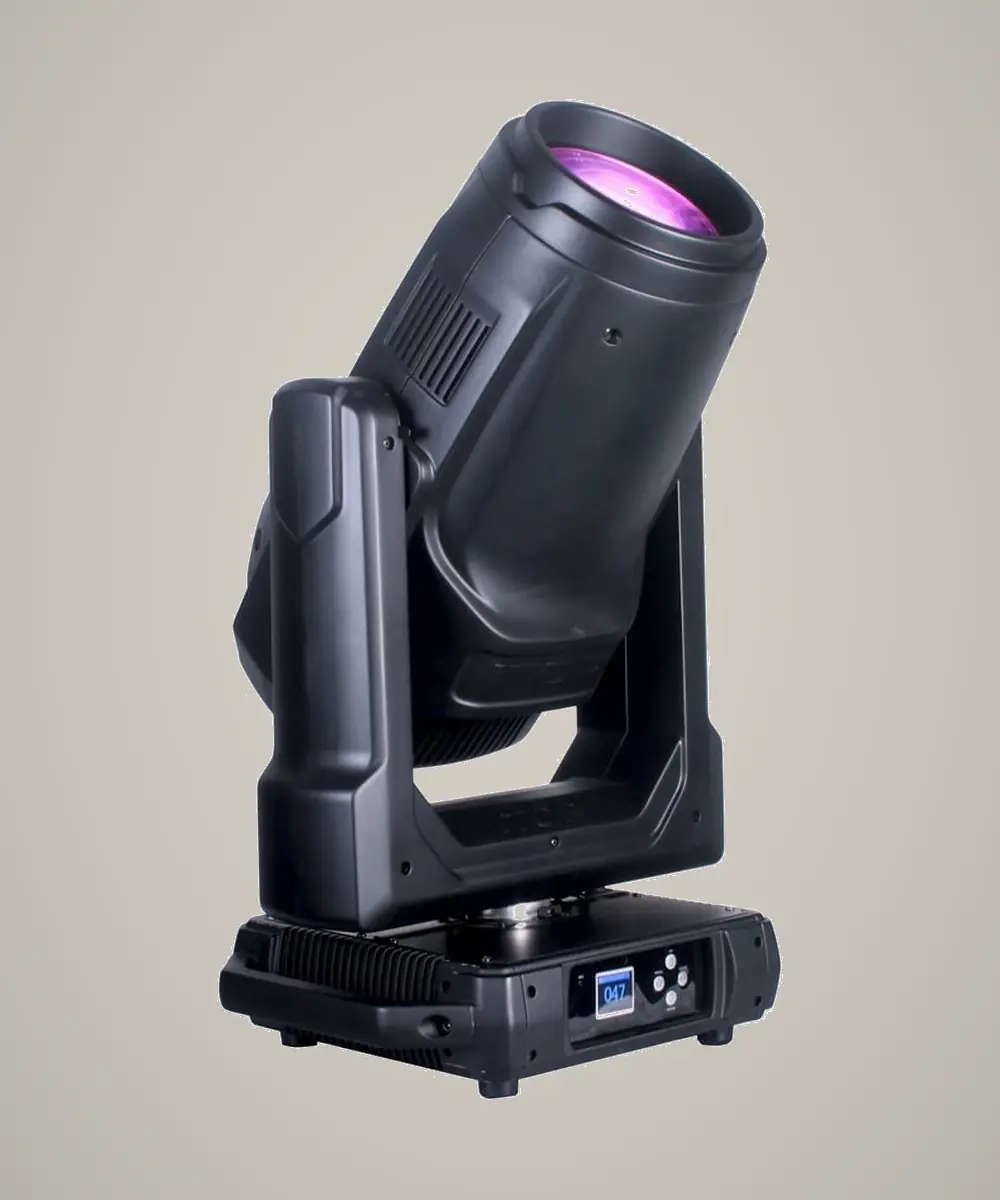

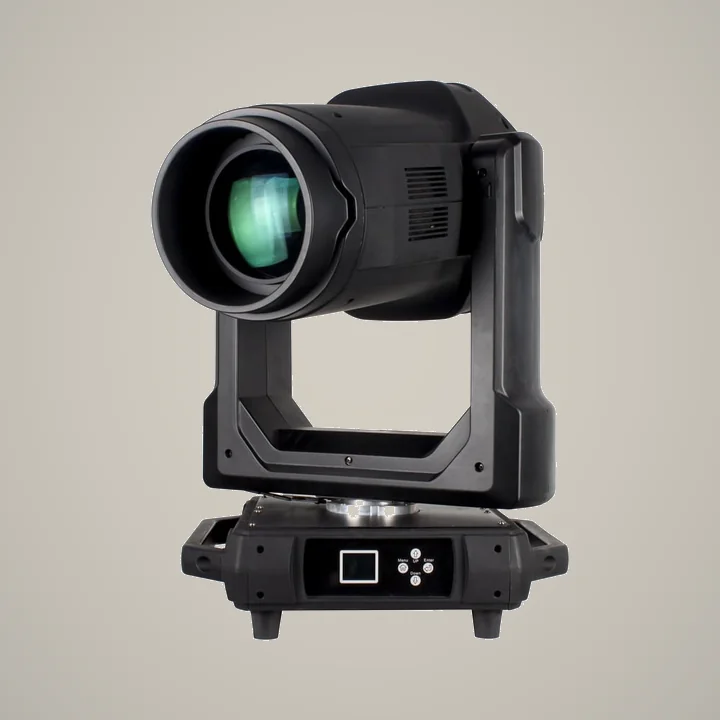

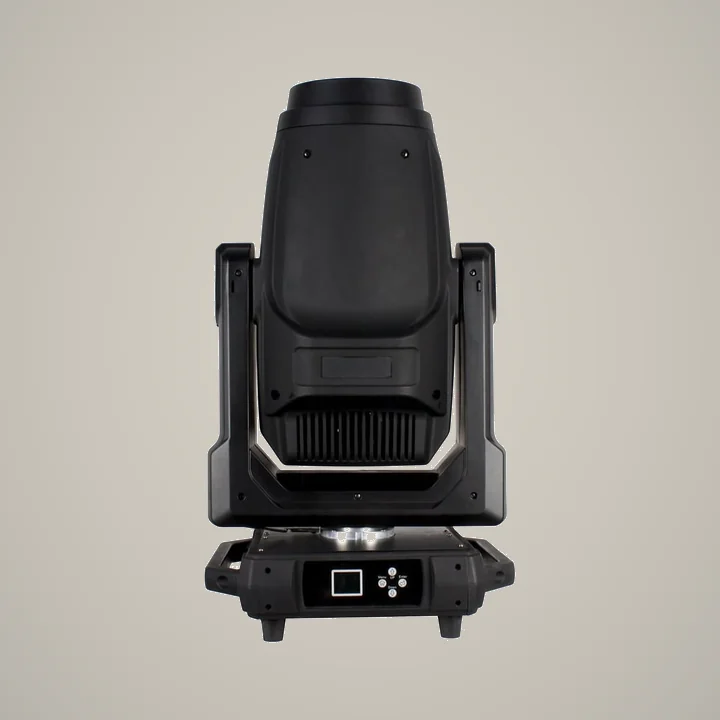

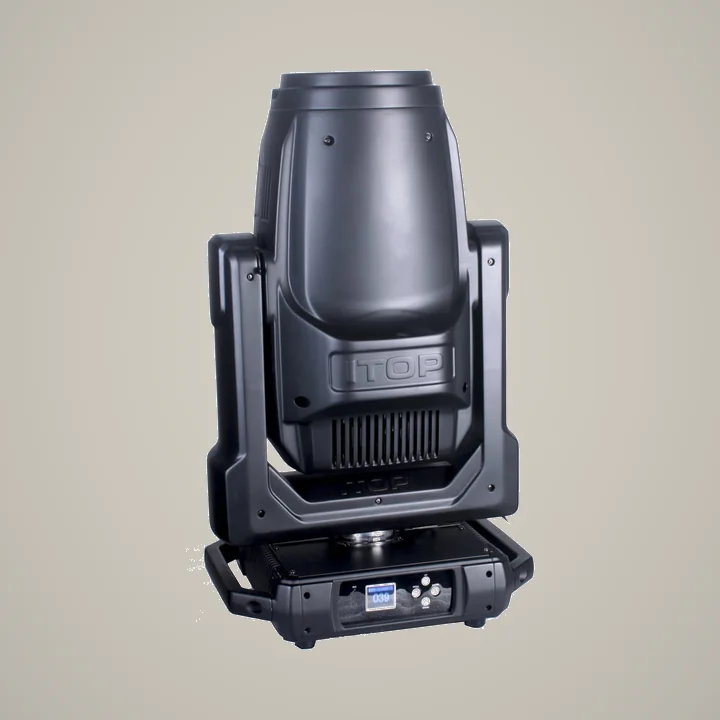

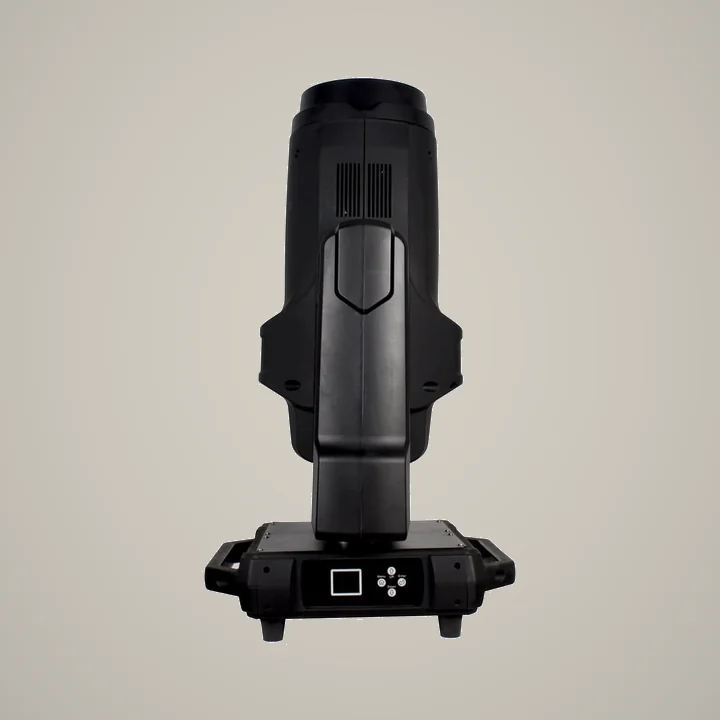

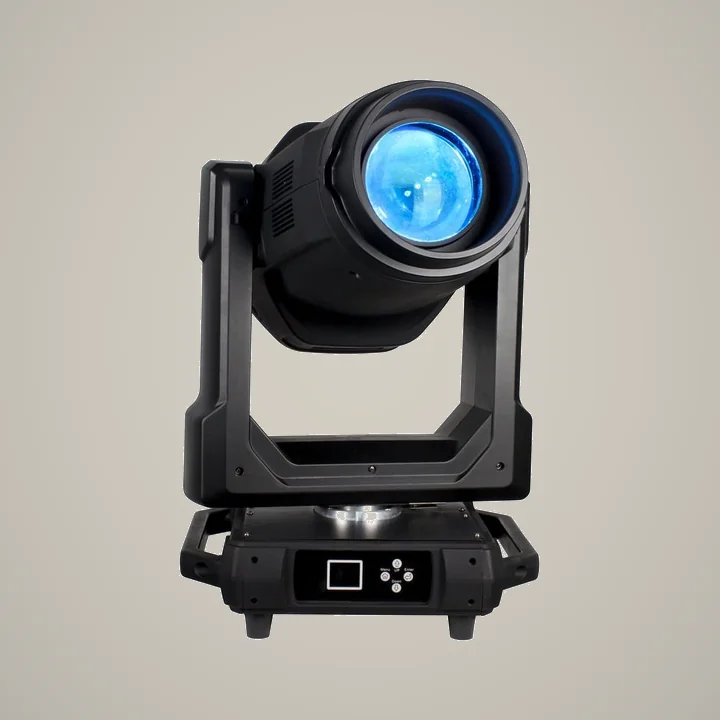

CL800P
A professional 800W LED profile moving head with wide-range zoom, precision framing, CMY color mixing and a complete effects package for stage, theater, concert and rental applications.
| Power consumption | 980W |
|---|---|
| Power input | AC 90–260V, 50/60Hz |
| Light source | 800W LED, CCT 7500K |
| Zoom range | 6°–55° |
| Color system | 6 colors + open; CMY color mixing; Linear CTO |
| Color effects | Half-color and rainbow effects |
| Rotating gobo wheel | 6 gobos + open; bi-directional rotation and shake |
| Static gobo wheel | 7 gobos + open |
| Framing system | 4 individually positionable blades; complete system ±90° rotation |
| Animation wheel | Fire and water-wave effects |
| Prism | 1 rotating four-facet prism |
| Iris | 5%–100% linear iris |
| Focus | Motorized focus |
| Frost | Frost filter |
| Dimming | 0–100% linear dimming |
| Strobe | 1–25Hz or random |
| Pan | 540°, 16-bit, automatic position correction |
| Tilt | 270°, 16-bit, automatic position correction |
| Control | DMX512, RDM, built-in programs |
| DMX channels | 29 / 32CH |
| Display | LCD graphical menu with four-button touch panel |
| IP rating | IP22 |
| Product size | 450 × 330 × 680mm |
| Net weight | 32kg |
Specifications are based on the current CL800P product record and may change without prior notice. CRI, luminous flux, packing data, certification and warranty details require final sales confirmation.
Product questions
What type of fixture is CL800P?
CL800P is a LED Profile Moving Head Light. A professional 800W LED profile moving head with wide-range zoom, precision framing, CMY color mixing and a complete effects package for stage, theater, concert and rental applications.
What light source does CL800P use?
The published light-source specification for CL800P is 800W LED.
What is the IP rating of CL800P?
The published protection rating for CL800P is IP22. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does CL800P provide?
The published optical range for CL800P is 6°–55°.
Which DMX channel modes does CL800P support?
The current product record lists 29 / 32CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is CL800P typically used?
Recommended applications include Stage performance, Theater lighting, Concerts and live shows, Rental projects, Professional lighting installations. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with CL800P
Overview
CL800P is a led profile moving head light in the LED Profile range. Its published light-source specification is 800W LED, the optical record lists 6°–55°, and the enclosure rating is IP22. The available control record lists 29 / 32CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Stage performance, Theater lighting, Concerts and live shows, Rental projects, Professional lighting installations. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 6°–55° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP22 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 29 / 32CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 800W LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
