CAT-100

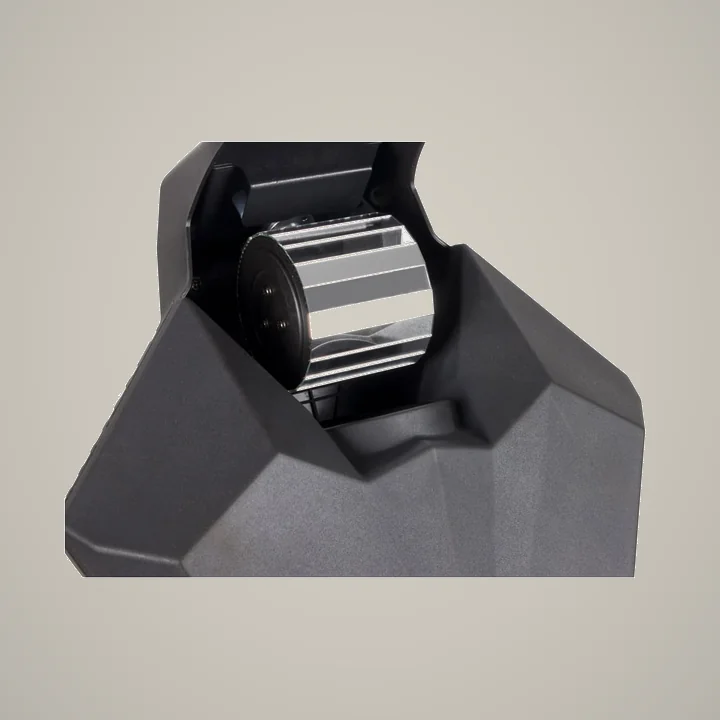

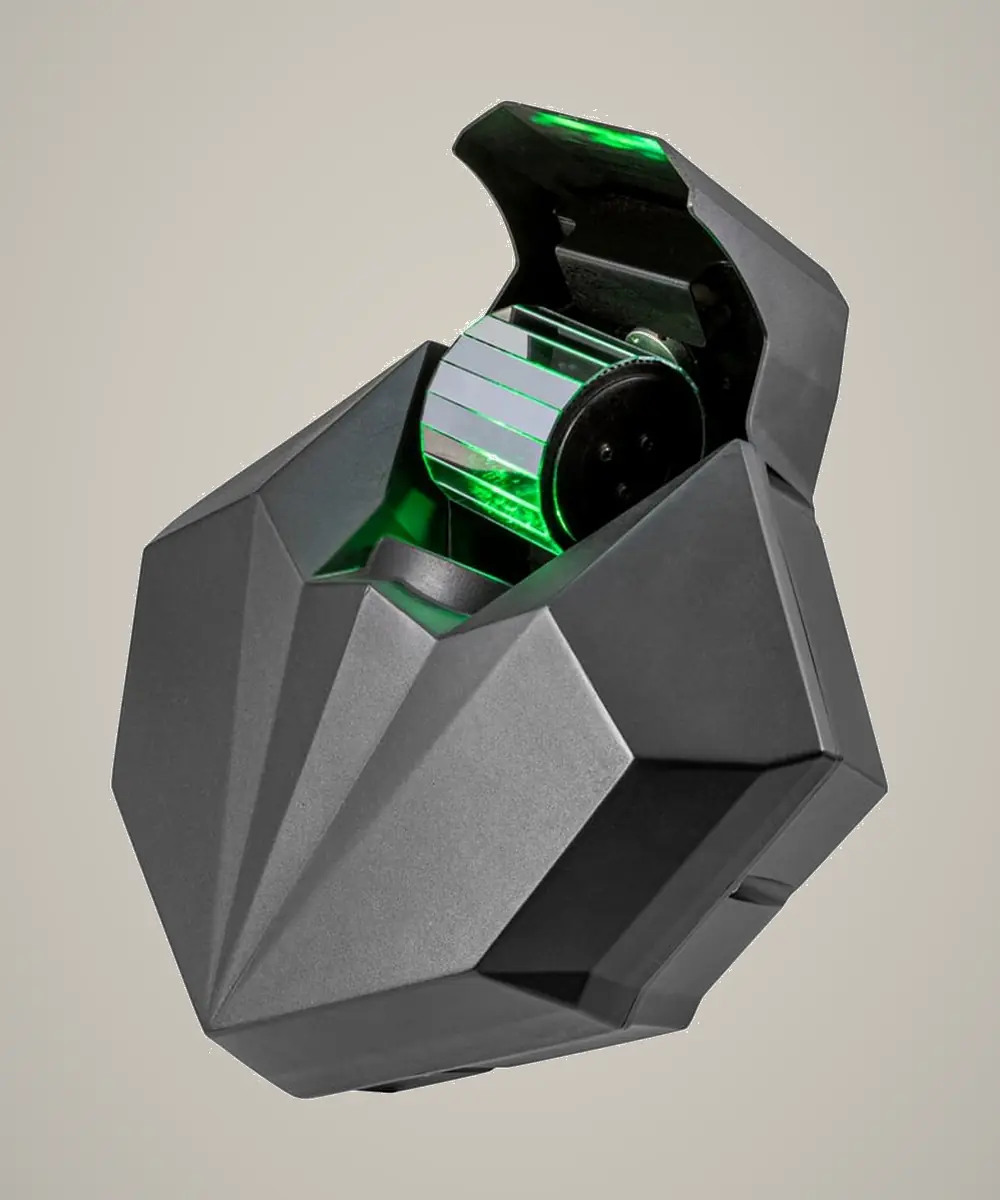

CAT 100 is an LED Beam Effect light with 100W LED light source, CCT 7500K, 60° beam angle, gobo/color wheel, mirror ball roller with continuous rotation, DMX512 control, RDM protocol and 7CH control mode.
| Power consumption | 120W |
|---|---|
| Power input | AC90-260V, 50/60HZ |
| Light source | 100W LED, CCT 7500K |
| LED configuration | 100W LED |
| Color system | Color wheel together with gobo wheel |
| CCT / color temperature | CCT 7500K |
| Beam angle | 60° |
| Control | DMX512 control, RDM protocol, built-in programs |
| DMX channels | 7CH |
| Dimming | 0-100% linear dimming |
| Strobe | 1-25Hz or random |
| Pan | 120° 16bit, automatic Pan/Tilt position correction |
| Tilt | 90° 16bit, automatic Pan/Tilt position correction |
| Gobo wheel | 8 gobos + 1 beam reducer; Color wheel together with gobo wheel; Bi-directional rotation with gobo shaking |
| Color wheel | Color wheel together with gobo wheel |
| Display | Cold LCD display; Four buttons touch panel |
| IP rating | IP22 |
| Product size | 310 x 280 x 150mm |
| Net weight | 4KG |
Specifications are based on the current CAT 100 product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is CAT-100?
CAT-100 is a LED Beam Effect Light. CAT 100 is an LED Beam Effect light with 100W LED light source, CCT 7500K, 60° beam angle, gobo/color wheel, mirror ball roller with continuous rotation, DMX512 control, RDM protocol and 7CH control mode.
What light source does CAT-100 use?
The published light-source specification for CAT-100 is 100W LED, CCT 7500K.
What is the IP rating of CAT-100?
The published protection rating for CAT-100 is IP22. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does CAT-100 provide?
The published optical range for CAT-100 is 60°.
Which DMX channel modes does CAT-100 support?
The current product record lists 7CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is CAT-100 typically used?
Recommended applications include Clubs and bars, KTV and entertainment venues, Small stages and live shows, Party and event lighting. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with CAT-100
Overview
CAT-100 is a led beam effect light in the LED Beam range. Its published light-source specification is 100W LED, CCT 7500K, the optical record lists 60°, and the enclosure rating is IP22. The available control record lists 7CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Clubs and bars, KTV and entertainment venues, Small stages and live shows, Party and event lighting. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 60° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP22 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 7CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 100W LED, CCT 7500K, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
