TW100

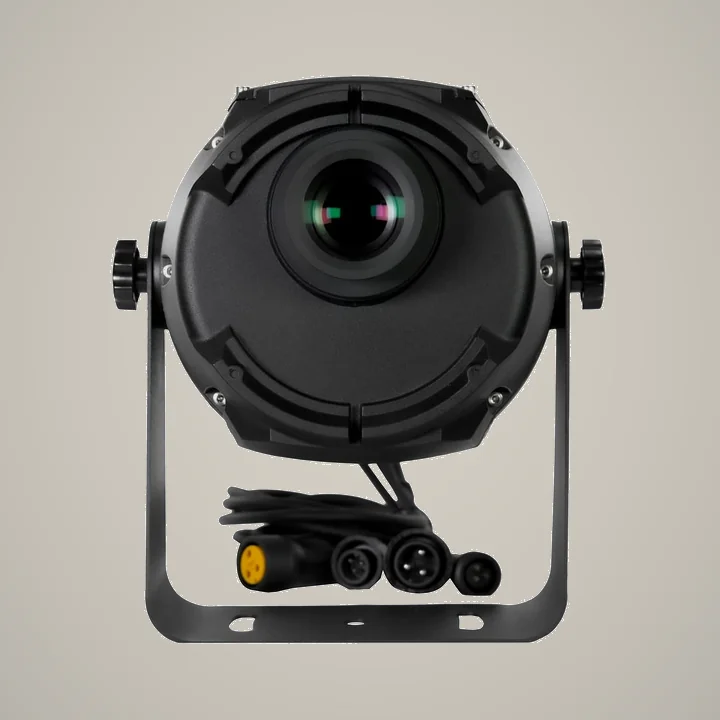

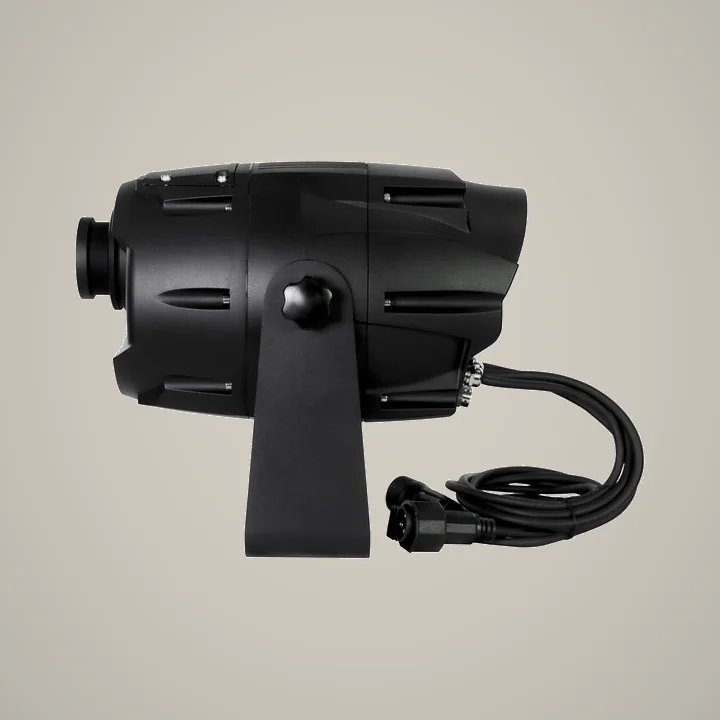

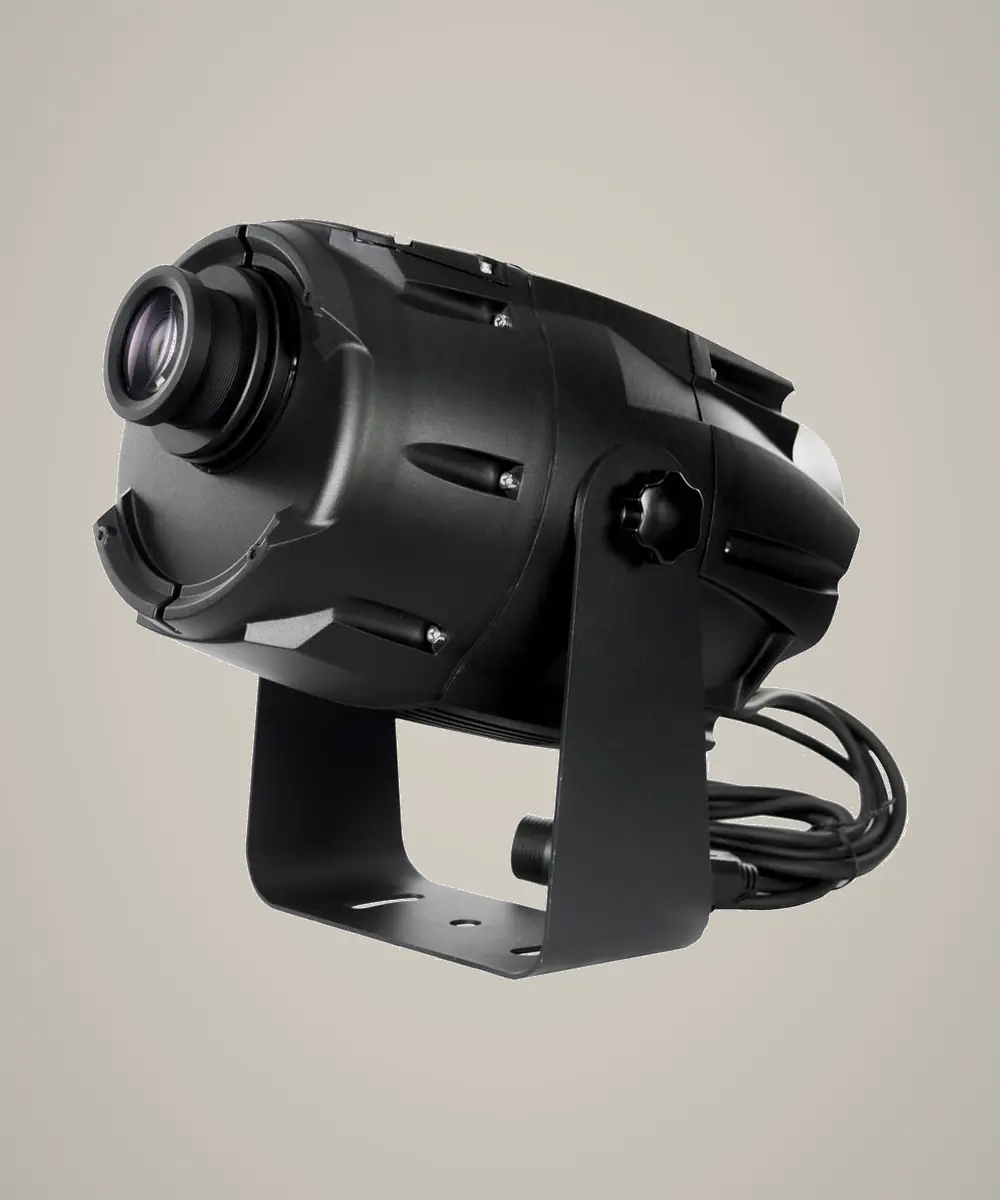

TW100 is an LED water wave effect light designed for outdoor water wave projection applications. It supports DMX512 control, Auto mode, manual mode, color wheel control, water wave A wheel, water wave B wheel, dimming, strobe, motor reset, linear dimming setting and RDM address setting.
| Light source | LED |
|---|---|
| Color system | Color wheel; White; Color 1-5; Linear color positioning; Color wheel forward rotation; Color wheel reverse rotation |
| Control | DMX512; Auto mode; Manual mode; RDM address setting; Factory reset; Motor reset |
| DMX channels | 6CH |
| Dimming | Master dimming 0-255, dark to bright; linear dimming setting available |
| Strobe | 0-255, slow to fast |
| Color wheel | White; Color 1-5; Linear color positioning; Forward rotation; Reverse rotation |
| Water wave effect | Water wave A wheel forward / reverse rotation; Water wave B wheel forward / reverse rotation |

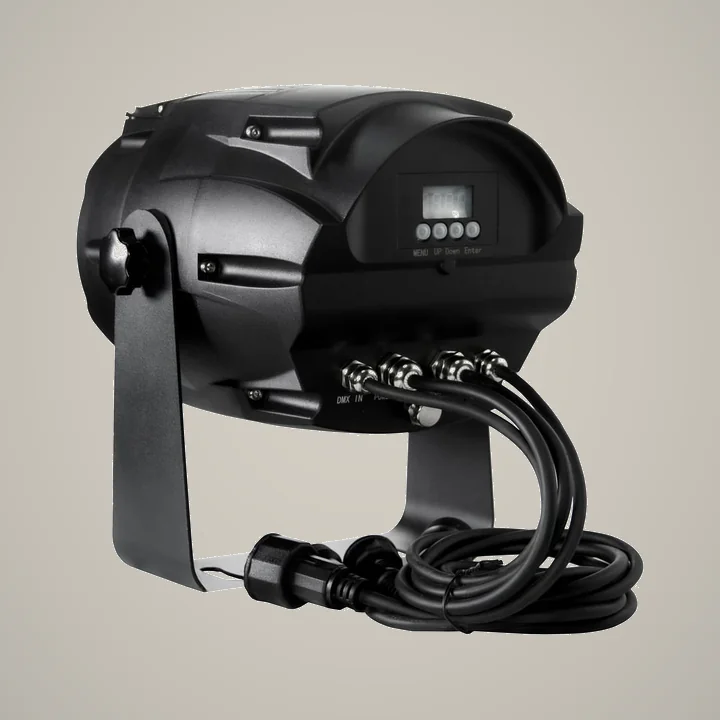

| Display | LED digital display; MENU / UP / DOWN / ENTER buttons; Screen saver setting; Temperature view function |
| Working temperature | LED protection temperature adjustable 0-99; exact working temperature range to be confirmed |
Specifications are based on the current TW100 product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is TW100?
TW100 is a LED Water Wave Effect Light. TW100 is an LED water wave effect light designed for outdoor water wave projection applications. It supports DMX512 control, Auto mode, manual mode, color wheel control, water wave A wheel, water wave B wheel, dimming, strobe, motor reset, linear dimming setting and RDM address setting.
What light source does TW100 use?
The published light-source specification for TW100 is LED.
What is the IP rating of TW100?
The published protection rating for TW100 is TBC. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does TW100 provide?
The published optical range for TW100 is TBC.
Which DMX channel modes does TW100 support?
The current product record lists 6CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is TW100 typically used?
Recommended applications include Architectural lighting, Bridge and wall show lighting, Theme parks and squares, Bars, stages and outdoor decorative lighting. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with TW100
Overview
TW100 is a led water wave effect light in the Effect range. Its published light-source specification is LED, the optical record lists TBC, and the enclosure rating is TBC. The available control record lists 6CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Architectural lighting, Bridge and wall show lighting, Theme parks and squares, Bars, stages and outdoor decorative lighting. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The TBC optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published TBC rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 6CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
