CL700P

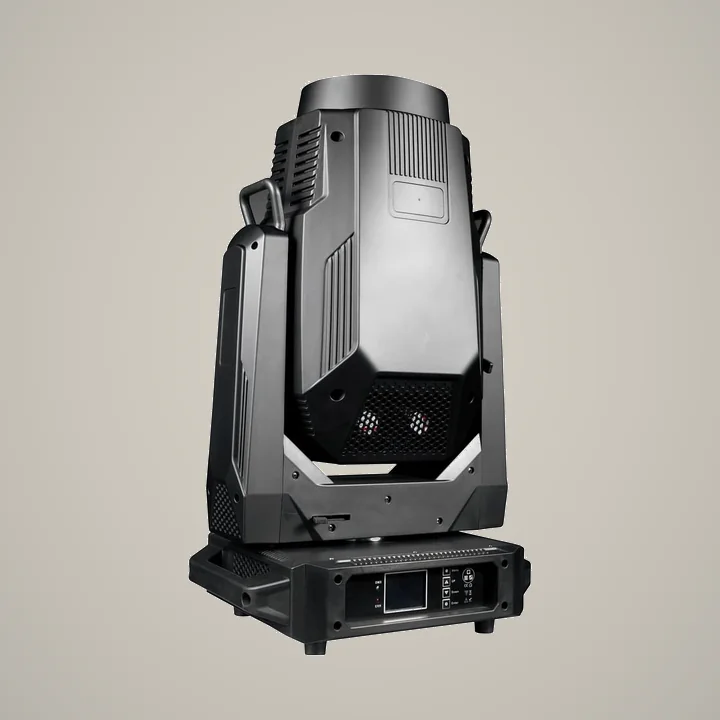

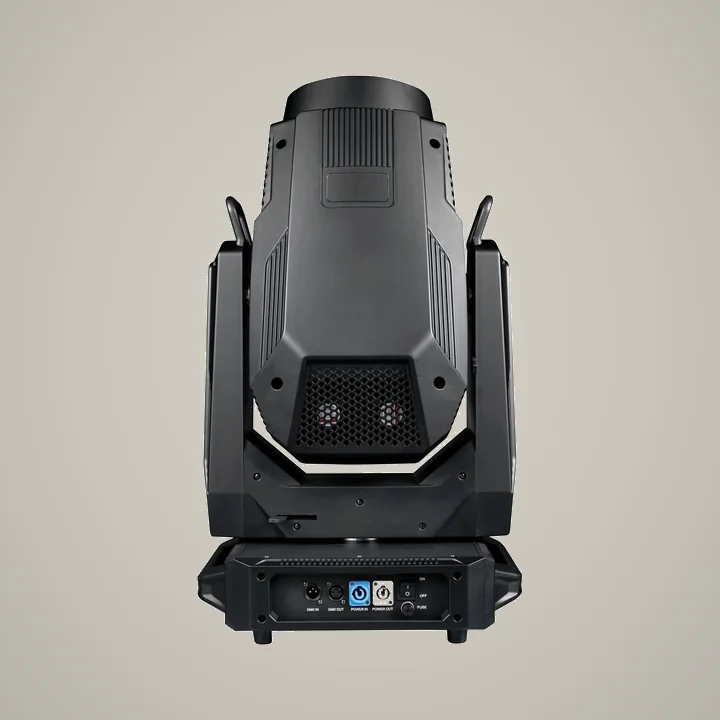

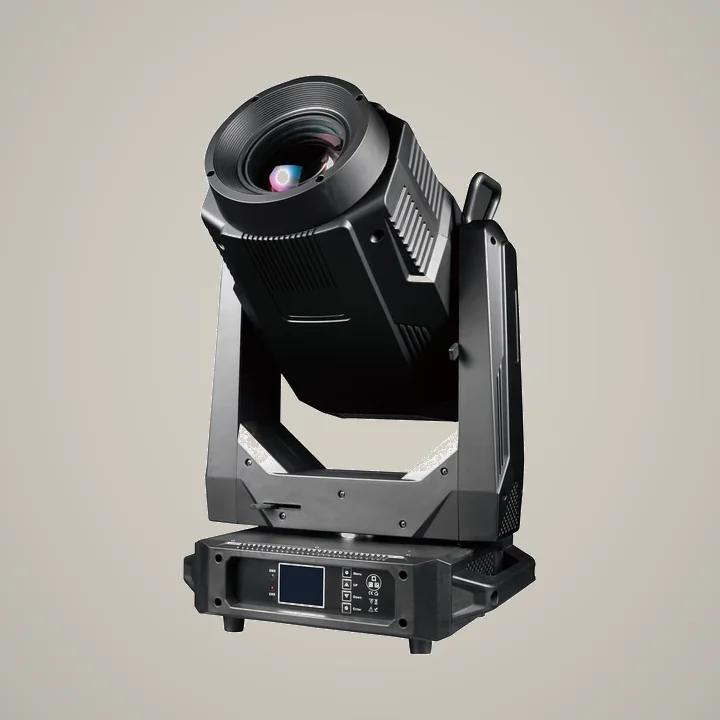

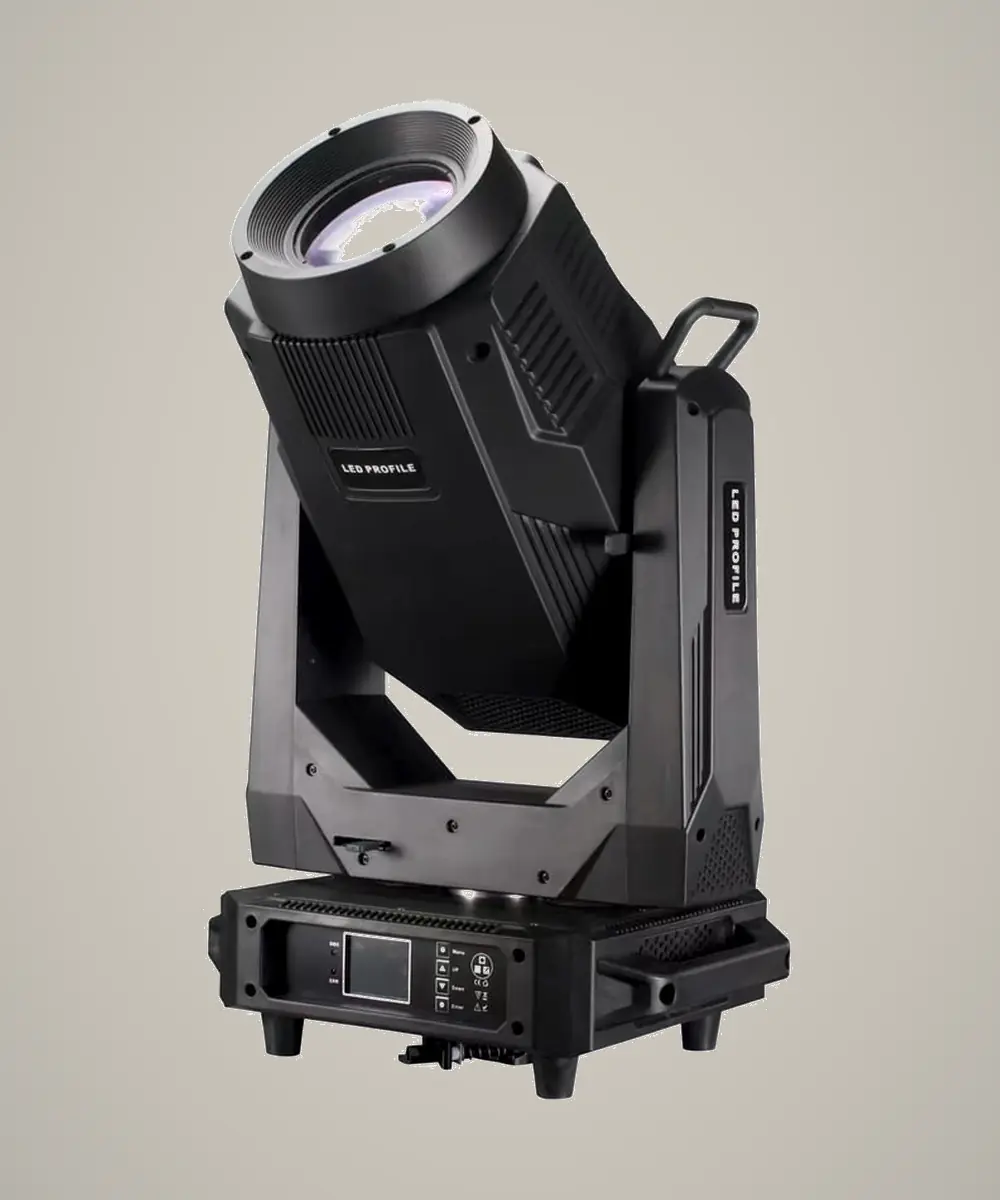

CL650P is a professional LED profile moving head light with 600W white LED light source, 700W rated power, 3°-40° linear zoom, CMY color mixing, CTO 3000K-6500K, dual color wheels, fixed gobo wheel, rotating gobo wheel, framing system, dual prisms, DMX linear focus, frost, iris, DMX512 control, RDM function and 35CH control mode.
| Power consumption | 700W |
|---|---|
| Power input | AC100V-240V, 50/60Hz |
| Light source | 1pc 600W high-brightness high-power white LED |
| LED configuration | 1pc 600W white LED |
| Color system | CMY infinite color mixing system; CTO linear adjustment: 3000K-6500K; Color wheel 1: 4 colors + white, half color effect; Color wheel 2: 4 colors + white, half color effect; Color positioning; Bi-directional rotating rainbow effect |
| CCT / color temperature | CTO 3000K-6500K |
| Beam angle | 3°-40° |
| Zoom range | 3°-40°, variable zoom lens, linear zoom in / zoom out |
| Control | DMX512; Sound active; Auto mode; Master-slave; RDM function |
| DMX channels | 35CH |
| Dimming | 0-100% linear dimming |
| Strobe | 1-25 times/sec ultra-high-speed strobe; Random strobe; Pulse strobe |
| Pan | 540°, 16bit precision scanning, automatic position correction |
| Tilt | 270°, 16bit precision scanning, automatic position correction |
| Prism | 3-facet prism; 8-facet prism; Bi-directional prism rotation; Prism overlay; Adjustable rotation speed |
| Gobo wheel | Fixed Gobo Wheel: 11 fixed gobos + flame effect + white, with gobo shaking function; Rotating Gobo Wheel: 6 pluggable rotating gobos + water effect + white, with gobo shaking and gobo positioning function |
| Color wheel | Color wheel 1: 4 colors + white, half color effect; Color wheel 2: 4 colors + white, half color effect; Color positioning and bi-directional rotating rainbow effect |
| Framing system | 4 controllable framing blades; complete framing system can rotate 150°; can create different beam shapes |
| Iris | 5%-100% smooth adjustment |
| Frost | Built-in frost filter, soft wash effect |
| Display | LCD display |
| Product size | L385 x W280 x H700mm |
| Net weight | 25.5KG |
Specifications are based on the current CL700P product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is CL700P?
CL700P is a LED Profile Moving Head Light. CL650P is a professional LED profile moving head light with 600W white LED light source, 700W rated power, 3°-40° linear zoom, CMY color mixing, CTO 3000K-6500K, dual color wheels, fixed gobo wheel, rotating gobo wheel, framing system, dual prisms, DMX linear focus, frost, iris, DMX512 control, RDM function and 35CH control mode.
What light source does CL700P use?
The published light-source specification for CL700P is 1pc 600W high-brightness high-power white LED.
What is the IP rating of CL700P?
The published protection rating for CL700P is TBC. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does CL700P provide?
The published optical range for CL700P is 3°-40°, variable zoom lens, linear zoom in / zoom out.
Which DMX channel modes does CL700P support?
The current product record lists 35CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is CL700P typically used?
Recommended applications include Theater lighting, Stage performance, Concerts and live shows, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with CL700P
Overview
CL700P is a led profile moving head light in the LED Profile range. Its published light-source specification is 1pc 600W high-brightness high-power white LED, the optical record lists 3°-40°, variable zoom lens, linear zoom in / zoom out, and the enclosure rating is TBC. The available control record lists 35CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Theater lighting, Stage performance, Concerts and live shows, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 3°-40°, variable zoom lens, linear zoom in / zoom out optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published TBC rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 35CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 1pc 600W high-brightness high-power white LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
