CL300P

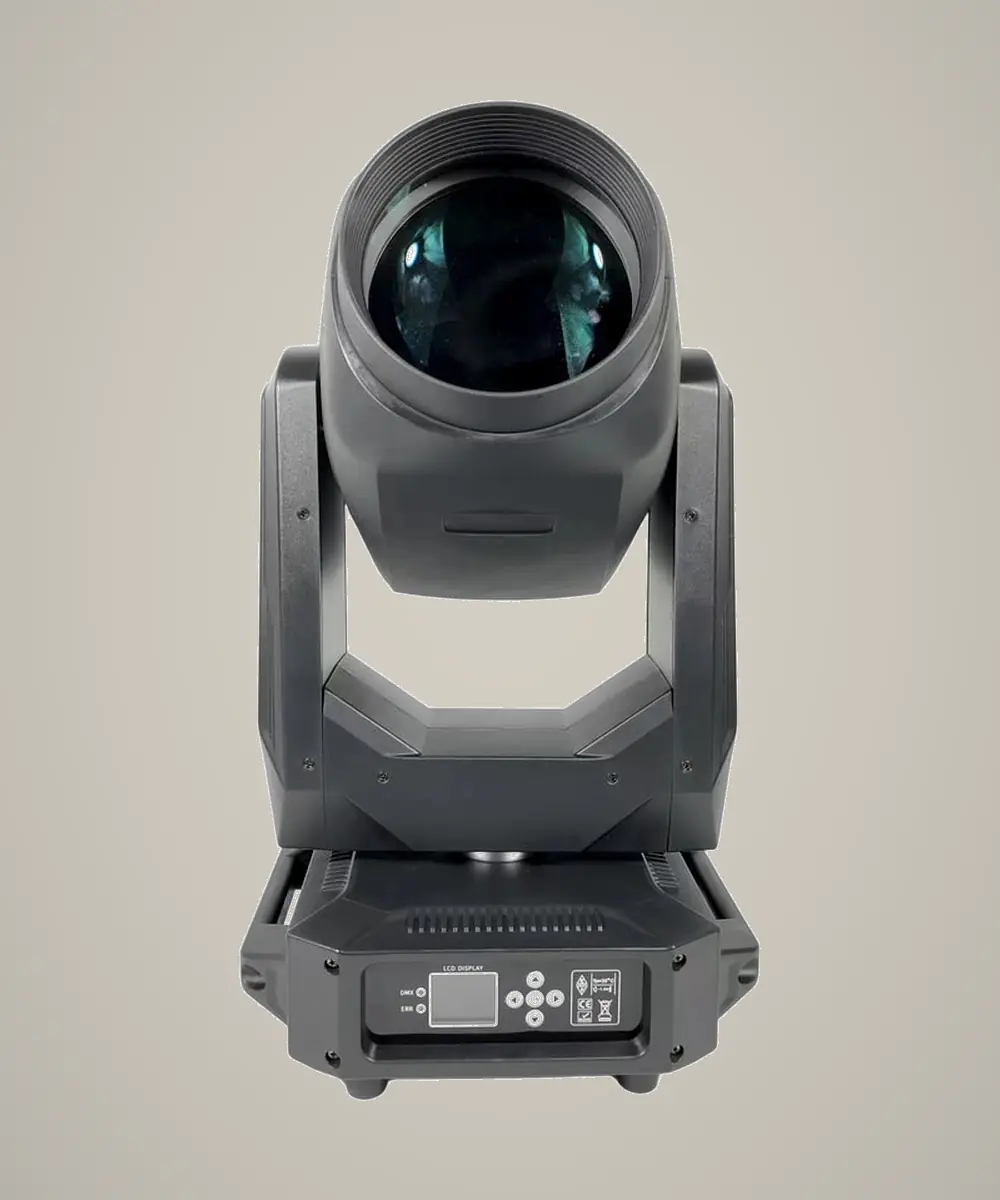

CL300P is a 300W LED Profile moving head light with 300W LED module, 7300K color temperature, Beam / Spot / Wash 3-in-1 optical design, CMY color mixing, linear CTO, framing system, fixed gobo wheel, rotating gobo wheel, 8-facet prism, electronic focus, frost, RDM function and 22/26CH DMX control modes.
| Power consumption | 500W |
|---|---|
| Power input | AC100V-240V ±10%, 50-60Hz |
| Light source | 300W LED module |
| LED configuration | 300W LED module |
| Color system | 1 color wheel; 6 colors + white + linear CTO; Half color; Bi-directional color flow; Color change and half-color rainbow effect; Linear CMY color mixing |
| CCT / color temperature | 7300K |
| Beam angle | Beam mode: 2°; Spot mode: 4°-52°; Wash mode: 2°-46° |
| Zoom range | Spot mode: 4°-52°; Wash mode: 2°-46° |
| Control | DMX; Auto mode; Master-slave; Sound active; RDM |
| DMX channels | 22/26CH |
| Strobe | 0.5-25Hz |
| Pan | 540°, 16Bit |
| Tilt | 270°, 16Bit |
| Prism | 1 independent rotating prism; 8-facet prism; Prism focus: linear focus zoom in / zoom out, adjustable clarity |
| Gobo wheel | Fixed Gobo Wheel: 9 gobos + white, each gobo with shaking effect, forward/reverse flowing effect; Rotating Gobo Wheel: 7 replaceable gobos + white, each gobo with forward/reverse rotation and shaking effect, forward/reverse flowing effect |
| Color wheel | 1 color wheel; 6 colors + white + linear CTO; Half color; Bi-directional flow; Color change and half-color rainbow effect |
| Framing system | 8 cutting blades; supports triangle, diamond, rectangle and other beam shapes |
| Frost | 0%-100% uniform soft frost effect |
| Display | LCD display; Touch screen + button control; Chinese / English display interface; 180° intelligent display flip |
| IP rating | IP20 |
| Working temperature | -20°C to 40°C |
| Housing material | High-temperature resistant fireproof engineering plastic injection molding |

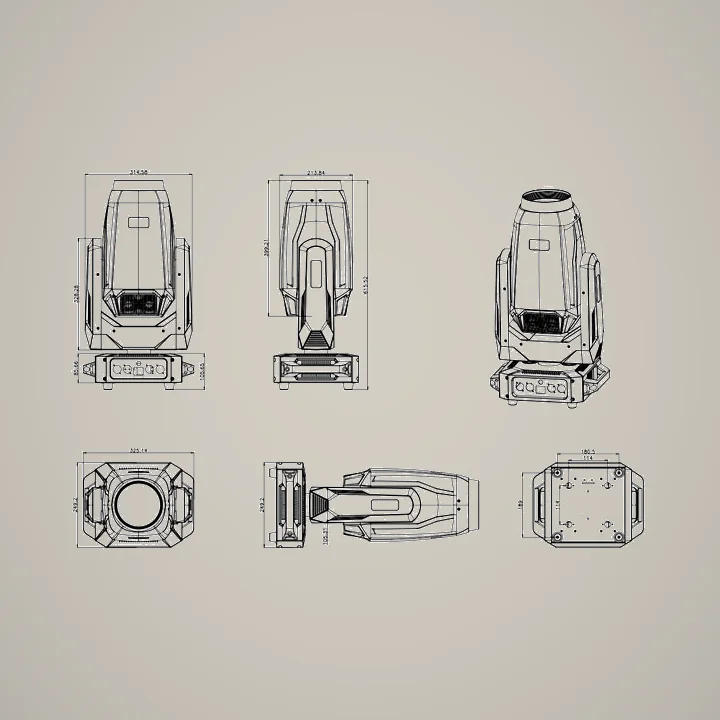

| Product size | 578H x 325W x 249D mm |
| Gross weight | 17.5KG |
Specifications are based on the current CL300P product record and may change without prior notice. CRI, Luminous flux, Packing size, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is CL300P?
CL300P is a LED Profile Moving Head Light. CL300P is a 300W LED Profile moving head light with 300W LED module, 7300K color temperature, Beam / Spot / Wash 3-in-1 optical design, CMY color mixing, linear CTO, framing system, fixed gobo wheel, rotating gobo wheel, 8-facet prism, electronic focus, frost, RDM function and 22/26CH DMX control modes.
What light source does CL300P use?
The published light-source specification for CL300P is 300W LED module.
What is the IP rating of CL300P?
The published protection rating for CL300P is IP20. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does CL300P provide?
The published optical range for CL300P is Spot mode: 4°-52°; Wash mode: 2°-46°.
Which DMX channel modes does CL300P support?
The current product record lists 22/26CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is CL300P typically used?
Recommended applications include Stage performance, Theater lighting, Concerts and live shows, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with CL300P
Overview
CL300P is a led profile moving head light in the LED Profile range. Its published light-source specification is 300W LED module, the optical record lists Spot mode: 4°-52°; Wash mode: 2°-46°, and the enclosure rating is IP20. The available control record lists 22/26CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Stage performance, Theater lighting, Concerts and live shows, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The Spot mode: 4°-52°; Wash mode: 2°-46° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP20 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 22/26CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 300W LED module, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
