TC300

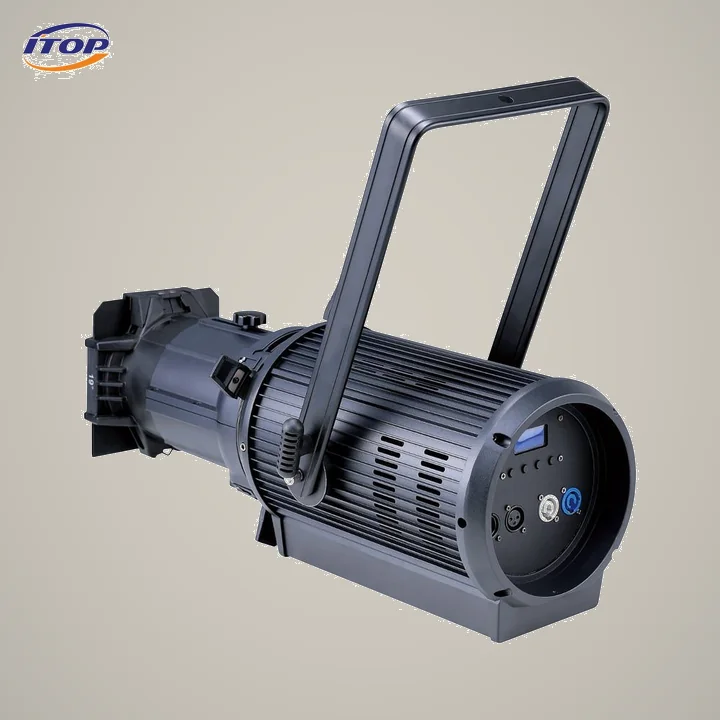

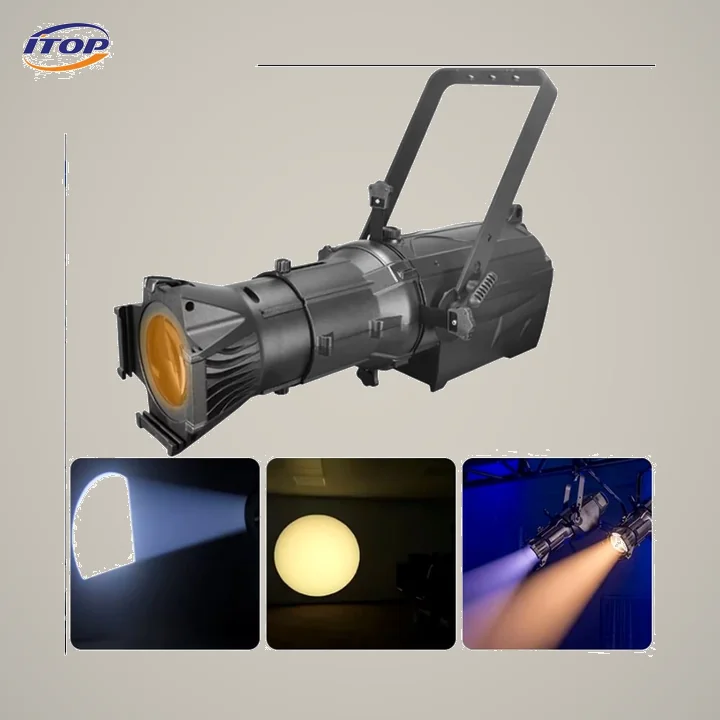

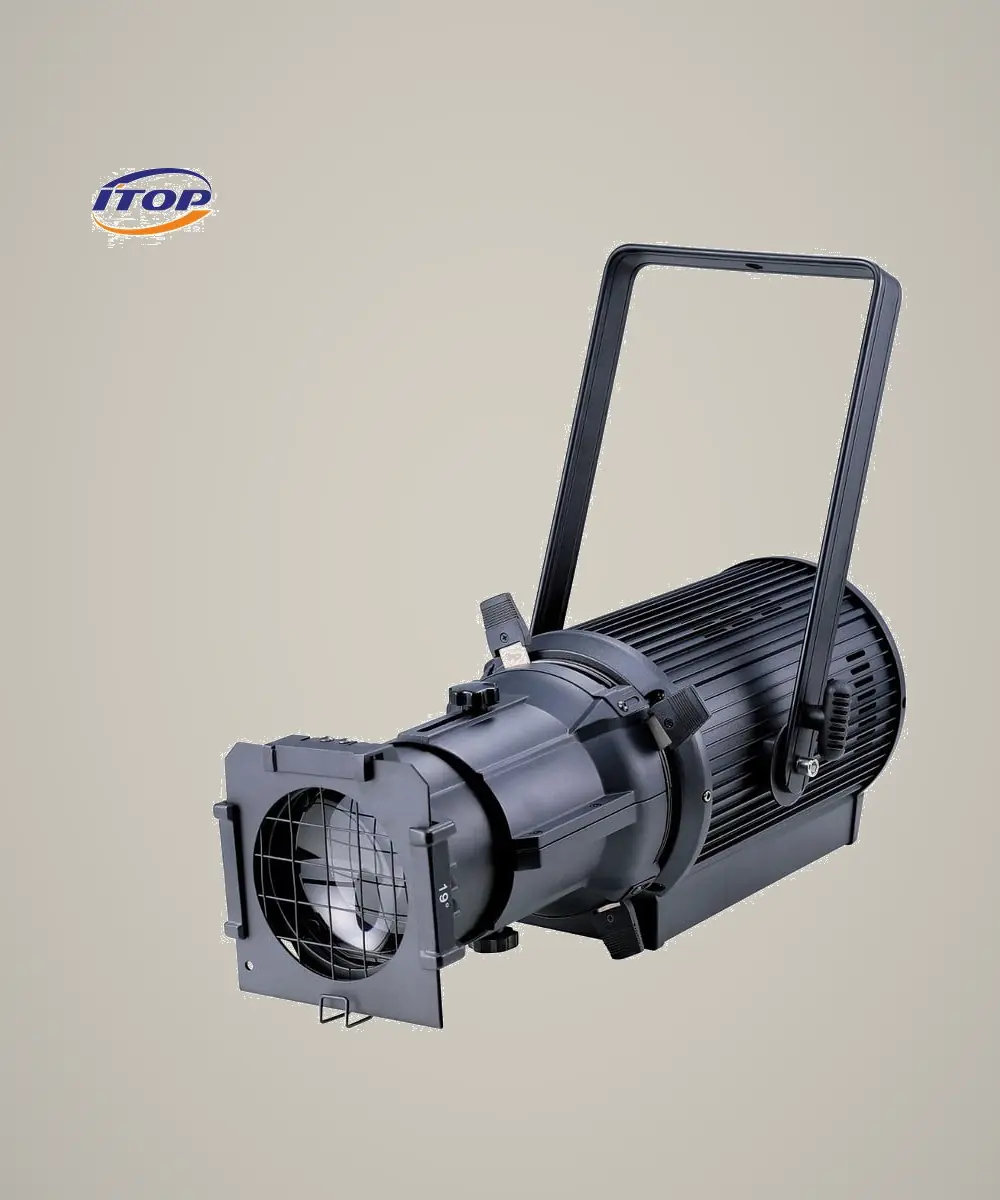

TC300 is a 300W LED Profile Spotlight designed for professional indoor use in theaters, TV studios, film studios and banquet halls. It supports 3200K / 5600K LED options, CRI > 90, 19°/26°/36°/50° lens options, DMX512 control, linear dimming, strobe and LCD display operation.
| Power consumption | 300W |
|---|---|
| Power input | AC100-230V, 50/60Hz |
| Light source | LED 3200K / 5600K optional |
| LED configuration | 300W LED |
| Color system | Warm white; 3200K / 5600K optional |
| CCT / color temperature | 3200K / 5600K optional |
| CRI | > 90 |
| Beam angle | 19°/26°/36°/50° |
| Control | DMX512; Master-slave |
| DMX channels | 2CH |
| Dimming | 0-255 linear dimming, dark to bright |
| Strobe | Pulse strobe slow to fast; Burst strobe fast to slow |
| Gobo wheel | Optional LOGO clamp / gobo holder |
| Color wheel | Optional color chip frame / color filter |
| Display | LCD display; MENU / DOWN / UP / ENTER buttons; Lamp bead temperature display; DMX signal hold setting; Backlight setting |
| IP rating | IP20 |
| Working temperature | Max. Ambient Temperature: <40℃; Max. Surface Temperature: <75℃ |
| Housing material | Aluminum upper cover; Aluminum side cover; Profile lens tube; Glass lens / profile lens tube |

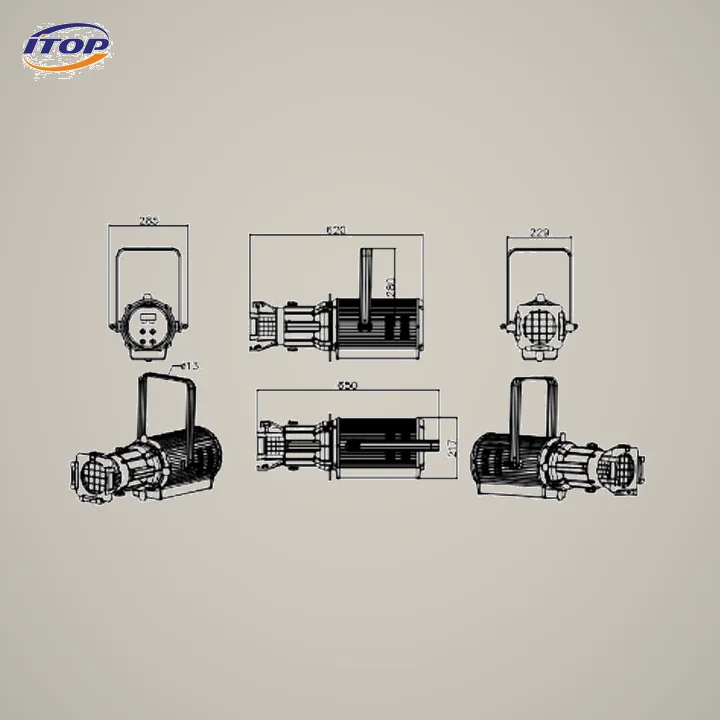

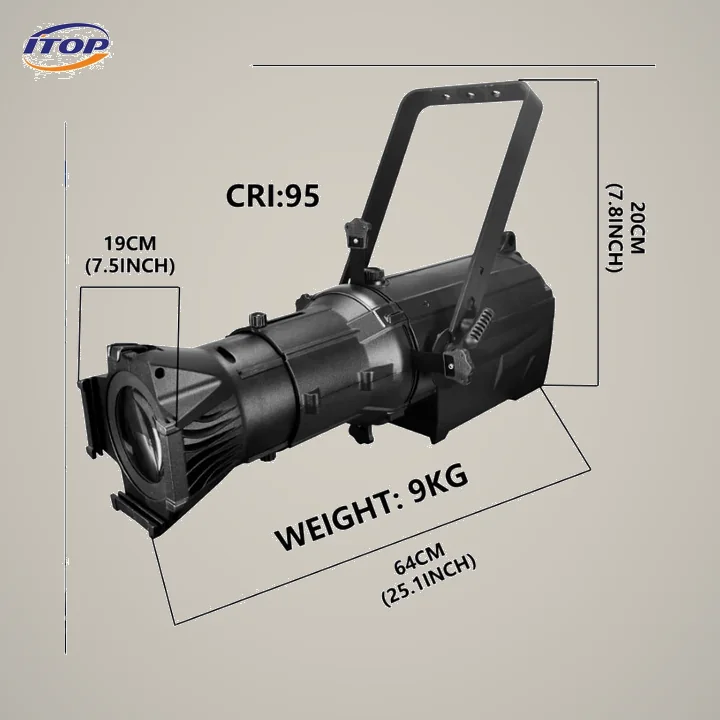

| Product size | 34 x 27 x 65cm |
| Packing size | 35 x 35 x 69cm |
| Net weight | 9.3KG |
| Gross weight | 10.5KG |
Specifications are based on the current TC300 product record and may change without prior notice. Luminous flux, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is TC300?
TC300 is a LED Profile Spotlight / LED Ellipsoidal Light. TC300 is a 300W LED Profile Spotlight designed for professional indoor use in theaters, TV studios, film studios and banquet halls. It supports 3200K / 5600K LED options, CRI > 90, 19°/26°/36°/50° lens options, DMX512 control, linear dimming, strobe and LCD display operation.
What light source does TC300 use?
The published light-source specification for TC300 is LED 3200K / 5600K optional.
What is the IP rating of TC300?
The published protection rating for TC300 is IP20. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does TC300 provide?
The published optical range for TC300 is 19°/26°/36°/50°.
Which DMX channel modes does TC300 support?
The current product record lists 2CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is TC300 typically used?
Recommended applications include Theater lighting, TV / film studio lighting, Banquet hall lighting, Stage and event lighting. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with TC300
Overview
TC300 is a led profile spotlight / led ellipsoidal light in the Theater & Studio range. Its published light-source specification is LED 3200K / 5600K optional, the optical record lists 19°/26°/36°/50°, and the enclosure rating is IP20. The available control record lists 2CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Theater lighting, TV / film studio lighting, Banquet hall lighting, Stage and event lighting. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 19°/26°/36°/50° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP20 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 2CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, LED 3200K / 5600K optional, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
