TC30

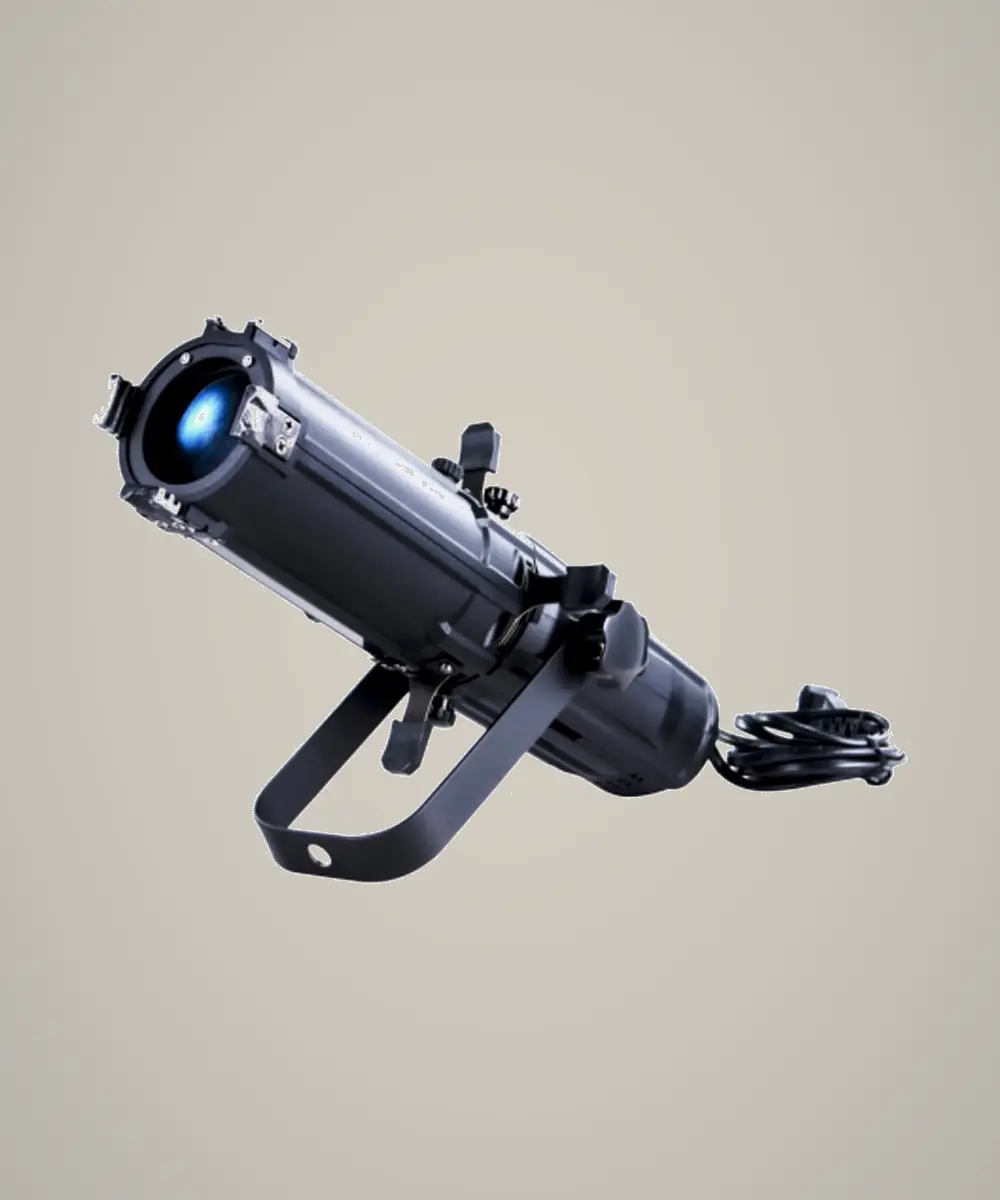

TC30 is a mini LED profile spotlight designed for indoor theater, studio, banquet hall and stage lighting applications. It supports 3200K / 5600K LED options, CRI > 90, 19°-32° beam angle, white dimming, strobe, colorful gradient effect, digital display operation and optional remote control.
| Power input | AC100-230V, 50-60Hz |
|---|---|
| Light source | LED 3200K / 5600K |
| Color system | White light; 3200K / 5600K optional; Colorful gradient effect |
| CCT / color temperature | 3200K / 5600K optional |
| CRI | > 90 |
| Beam angle | 19°-32° |
| Control | DMX512; Digital display manual control; Optional remote control |
| Dimming | White light dimming 000-255, dark to bright |
| Strobe | 00-99, slow to fast |
| Gobo wheel | Optional LOGO clamp / gobo holder |
| Color wheel | Optional color flake / color filter |

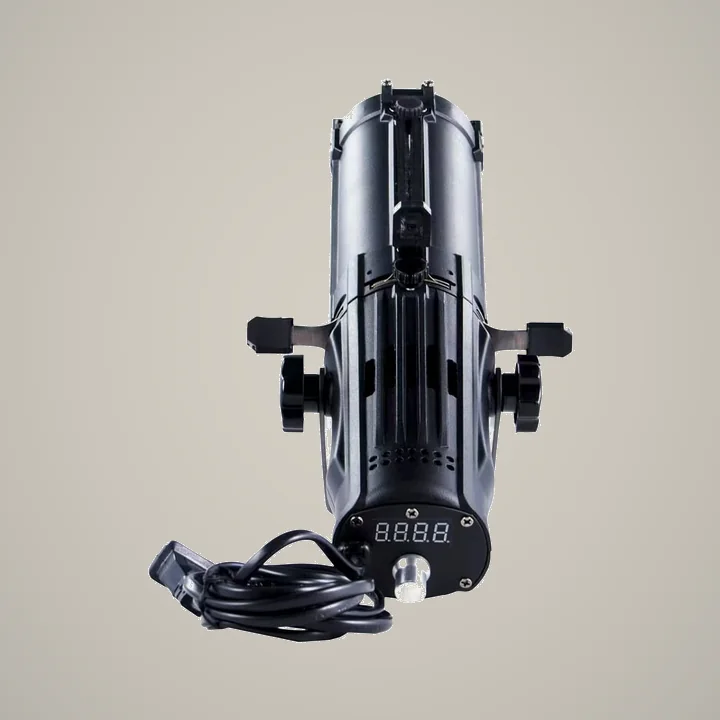

| Display | Digital display; MENU / DOWN / UP / ENTER buttons |
| Working temperature | Max. Ambient Temperature: <40℃; Max. Surface Temperature: <75℃ |
| Product size | 110 x 110 x 331mm |
| Net weight | 1.0KG |
Specifications are based on the current TC30 product record and may change without prior notice. Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is TC30?
TC30 is a LED Mini Profile Spotlight / LED Mini Ellipsoidal Light. TC30 is a mini LED profile spotlight designed for indoor theater, studio, banquet hall and stage lighting applications. It supports 3200K / 5600K LED options, CRI > 90, 19°-32° beam angle, white dimming, strobe, colorful gradient effect, digital display operation and optional remote control.
What light source does TC30 use?
The published light-source specification for TC30 is LED 3200K / 5600K.
What is the IP rating of TC30?
The published protection rating for TC30 is TBC. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does TC30 provide?
The published optical range for TC30 is 19°-32°.
Which DMX channel modes does TC30 support?
The current product record lists TBC. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is TC30 typically used?
Recommended applications include Theater lighting, TV / film studio lighting, Banquet hall lighting, Small stage and event lighting. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with TC30
Overview
TC30 is a led mini profile spotlight / led mini ellipsoidal light in the Theater & Studio range. Its published light-source specification is LED 3200K / 5600K, the optical record lists 19°-32°, and the enclosure rating is TBC. The available control record lists TBC. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Theater lighting, TV / film studio lighting, Banquet hall lighting, Small stage and event lighting. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 19°-32° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published TBC rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The TBC control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, LED 3200K / 5600K, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
