TC100

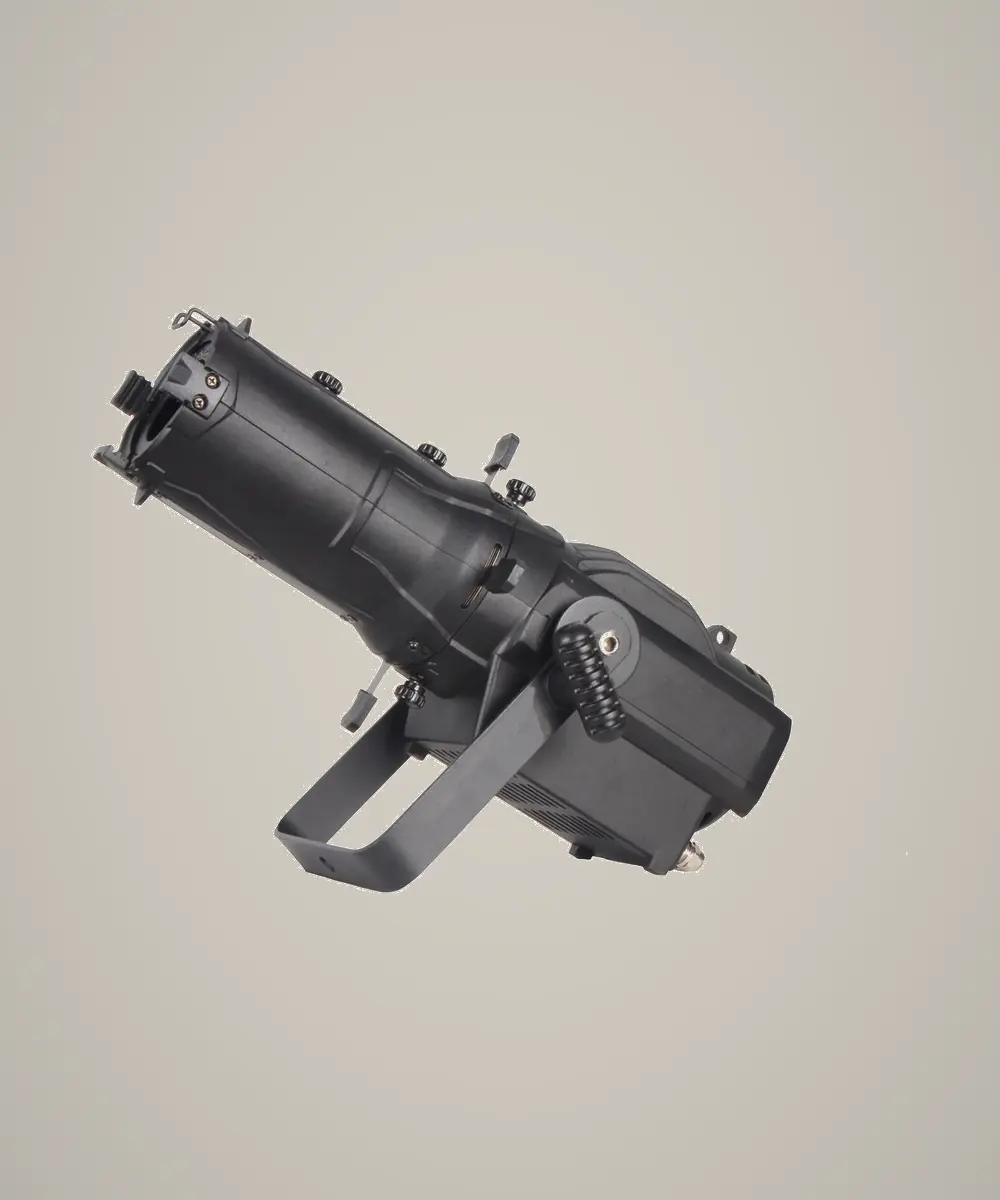

TC100 is an LED Spot Light with 80W LED light source, RGBW / WW / CW options, 25-50° beam angle, CRI > 90, RGBW linear dimming, 4 manual framing system, DMX512 control, RDM protocol and 5CH control mode.
| Power consumption | 100W |
|---|---|
| Power input | AC90-260V, 50/60HZ |
| Light source | 80W LED, RGBW / WW / CW |
| LED configuration | 80W LED |
| Color system | RGBW linear dimming; RGBW / WW / CW |
| CCT / color temperature | WW / CW, exact CCT to be confirmed |
| CRI | CRI > 90 |
| Beam angle | 25-50° |
| Zoom range | 25-50° |
| Control | DMX512 control, RDM protocol, built-in programs |
| DMX channels | 5CH |
| Dimming | 0-100% linear dimming |
| Strobe | 1-25Hz |
| Color wheel | Optional color filter |
| Framing system | 4 manual framing system |

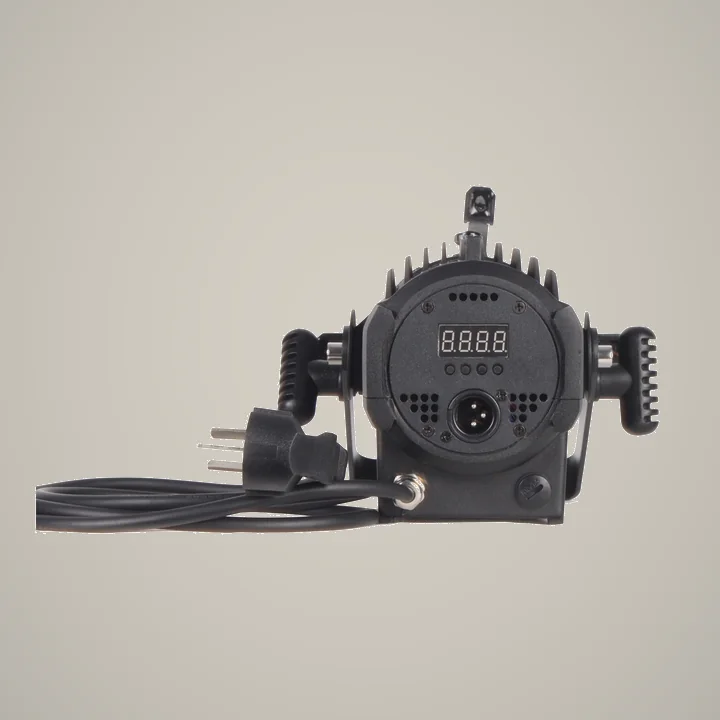

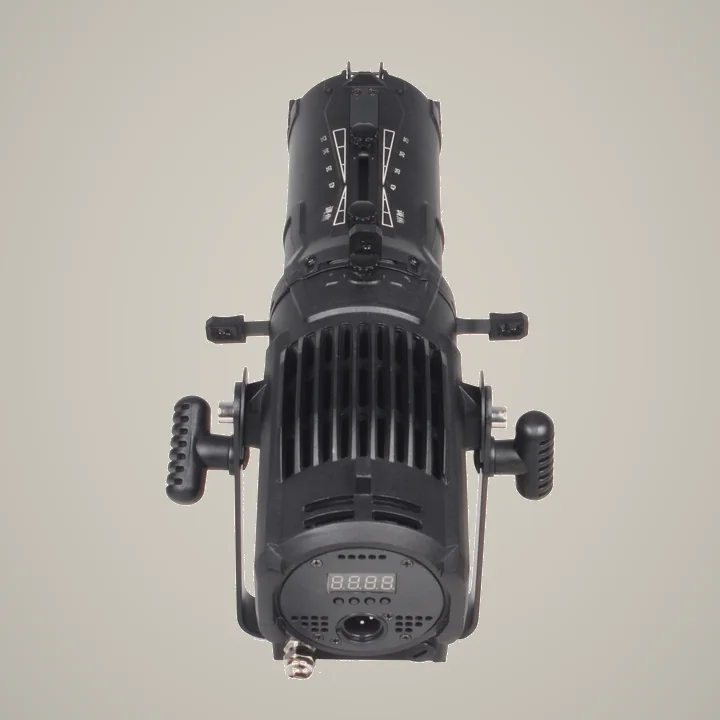

| Display | LCD display; Graphical menu display; Four buttons |
| IP rating | IP20 |
| Product size | 436 x 197 x 136mm |
| Net weight | 3.5KG |
Specifications are based on the current TC100 product record and may change without prior notice. Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is TC100?
TC100 is a LED Spot Light. TC100 is an LED Spot Light with 80W LED light source, RGBW / WW / CW options, 25-50° beam angle, CRI > 90, RGBW linear dimming, 4 manual framing system, DMX512 control, RDM protocol and 5CH control mode.
What light source does TC100 use?
The published light-source specification for TC100 is 80W LED, RGBW / WW / CW.
What is the IP rating of TC100?
The published protection rating for TC100 is IP20. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does TC100 provide?
The published optical range for TC100 is 25-50°.
Which DMX channel modes does TC100 support?
The current product record lists 5CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is TC100 typically used?
Recommended applications include Theater lighting, Church and studio lighting, Stage performance, Exhibition and event lighting. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with TC100
Overview
TC100 is a led spot light in the Theater & Studio range. Its published light-source specification is 80W LED, RGBW / WW / CW, the optical record lists 25-50°, and the enclosure rating is IP20. The available control record lists 5CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Theater lighting, Church and studio lighting, Stage performance, Exhibition and event lighting. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 25-50° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP20 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 5CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 80W LED, RGBW / WW / CW, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
