PL1260-IP

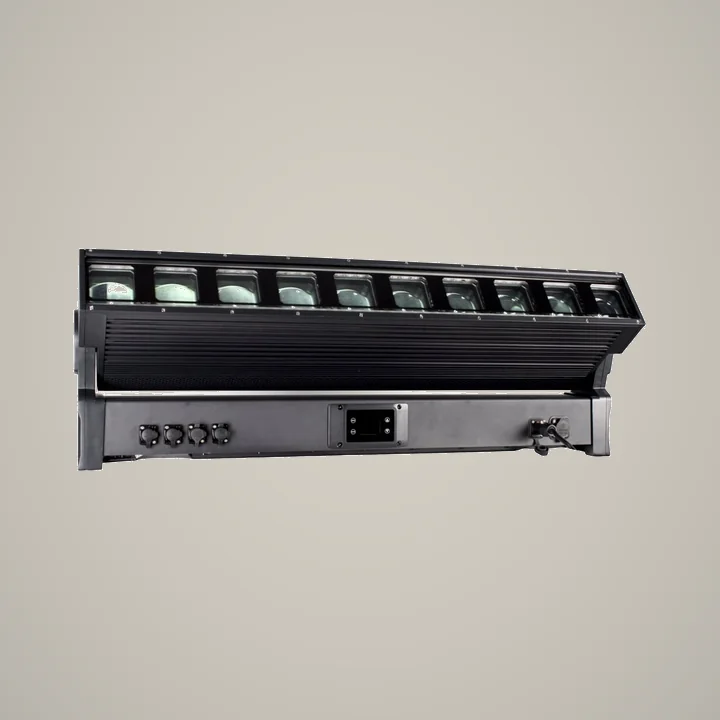

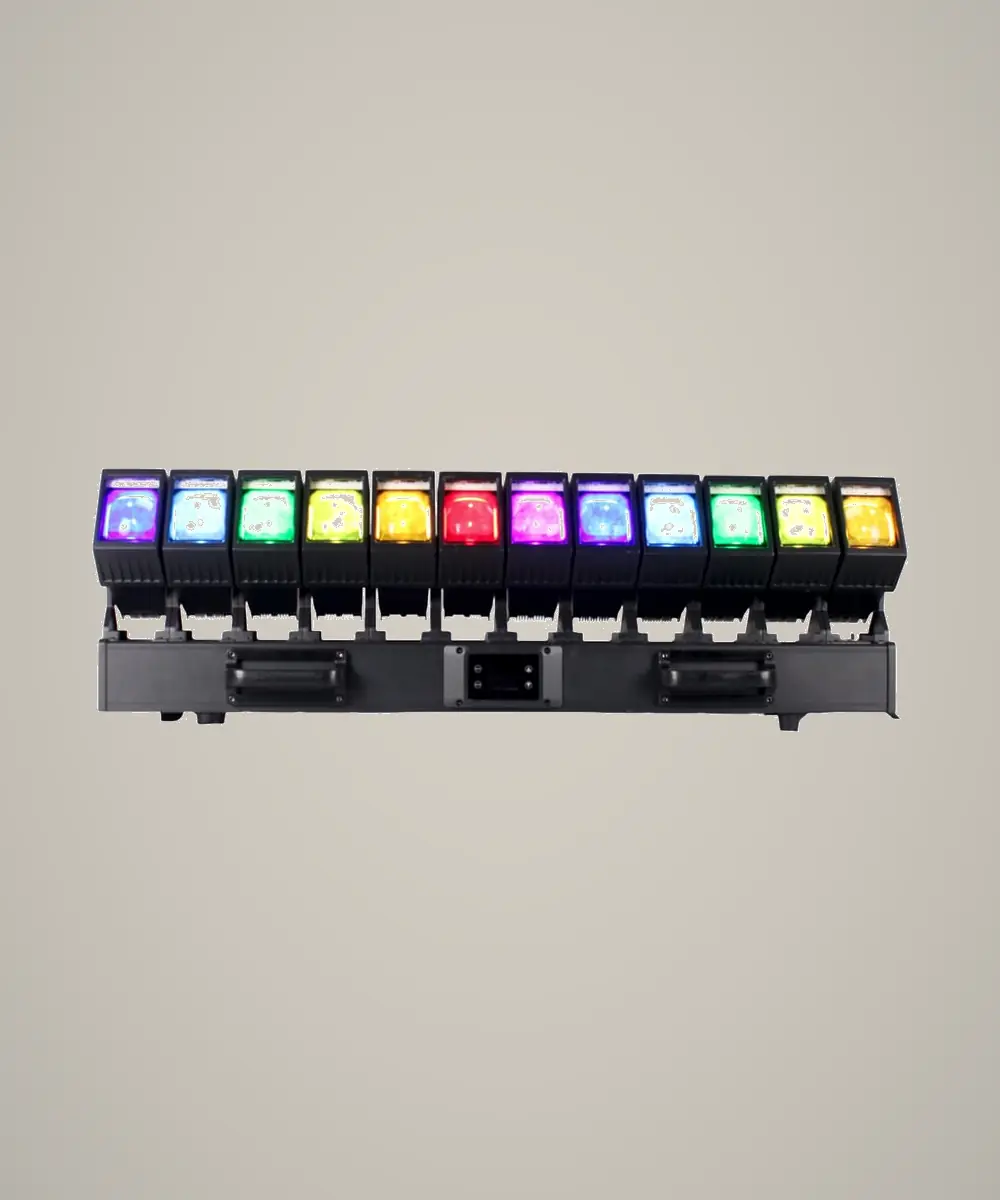

PL1260 IP is an IP65 LED Super Pixel light with 12 x 60W RGBW LED beam section, strobe section with 144 x 2W CW LEDs and 144 x 2W WW LEDs, 23,000 lumens total output, motorized zoom, 12 individual sections, pixel control, 200° tilt movement, DMX512 control, RDM protocol and multiple DMX channel modes.
| Power consumption | 900W |
|---|---|
| Power input | AC180-240V, 50/60HZ |
| Light source | Beam Section: 12 x 60W RGBW LED; Strobe Section: 144 x 2W CW LED; Strobe Section: 144 x 2W WW LED |
| LED configuration | 12 x 60W RGBW LEDs; 144 x 2W CW LEDs; 144 x 2W WW LEDs |
| Color system | RGBW; CW; WW |
| Luminous flux | Total Lumen Output of Fixture: 23,000 lumens |
| Beam angle | 2.8°-31° Beam section |
| Zoom range | Motorized Zoom |
| Control | DMX512 control, RDM protocol, built-in programs |
| DMX channels | 20/169/53/101/155/179CH |
| Strobe | 1-25Hz or random |
| Tilt | 200° 16bit, automatic Tilt position correction |
| Display | LCD display; 4 buttons touch panel |
| IP rating | IP65 |
| Product size | 1004 x 351 x 180mm |
| Net weight | 30KG |
Specifications are based on the current PL1260 IP product record and may change without prior notice. CRI, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is PL1260-IP?
PL1260-IP is a LED Super Pixel Light. PL1260 IP is an IP65 LED Super Pixel light with 12 x 60W RGBW LED beam section, strobe section with 144 x 2W CW LEDs and 144 x 2W WW LEDs, 23,000 lumens total output, motorized zoom, 12 individual sections, pixel control, 200° tilt movement, DMX512 control, RDM protocol and multiple DMX channel modes.
What light source does PL1260-IP use?
The published light-source specification for PL1260-IP is Beam Section: 12 x 60W RGBW LED; Strobe Section: 144 x 2W CW LED; Strobe Section: 144 x 2W WW LED.
What is the IP rating of PL1260-IP?
The published protection rating for PL1260-IP is IP65. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does PL1260-IP provide?
The published optical range for PL1260-IP is Motorized Zoom.
Which DMX channel modes does PL1260-IP support?
The current product record lists 20/169/53/101/155/179CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is PL1260-IP typically used?
Recommended applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with PL1260-IP
Overview
PL1260-IP is a led super pixel light in the Pixel Bar range. Its published light-source specification is Beam Section: 12 x 60W RGBW LED; Strobe Section: 144 x 2W CW LED; Strobe Section: 144 x 2W WW LED, the optical record lists Motorized Zoom, and the enclosure rating is IP65. The available control record lists 20/169/53/101/155/179CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The Motorized Zoom optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP65 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 20/169/53/101/155/179CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, Beam Section: 12 x 60W RGBW LED; Strobe Section: 144 x 2W CW LED; Strobe Section: 144 x 2W WW LED, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
