CL1200P

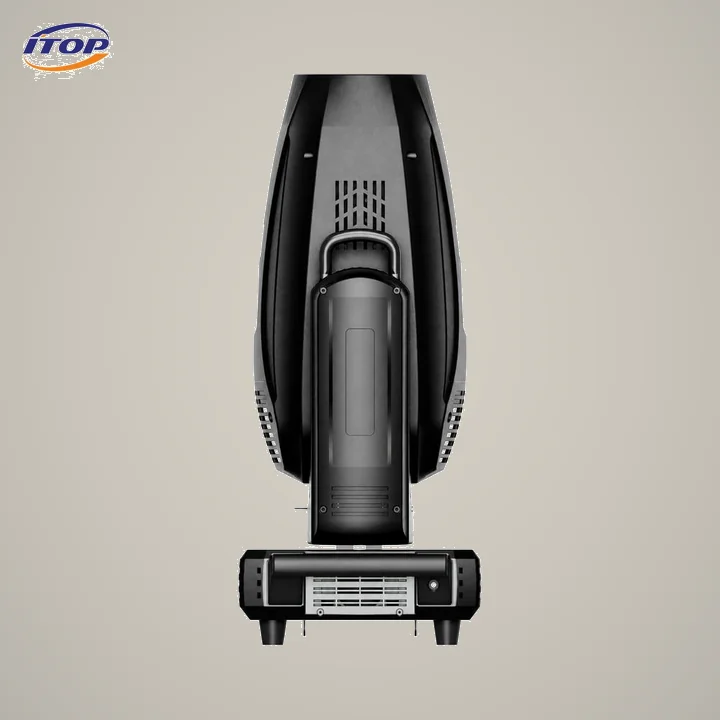

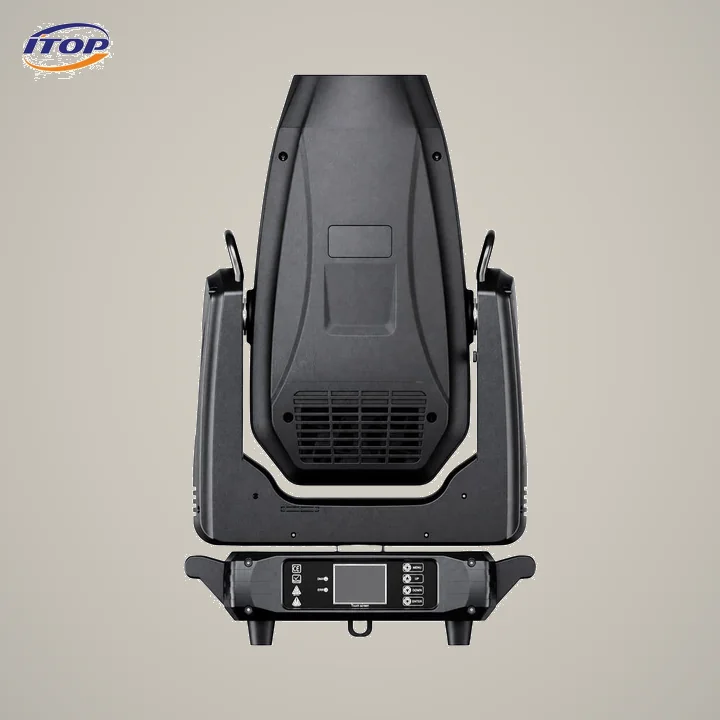

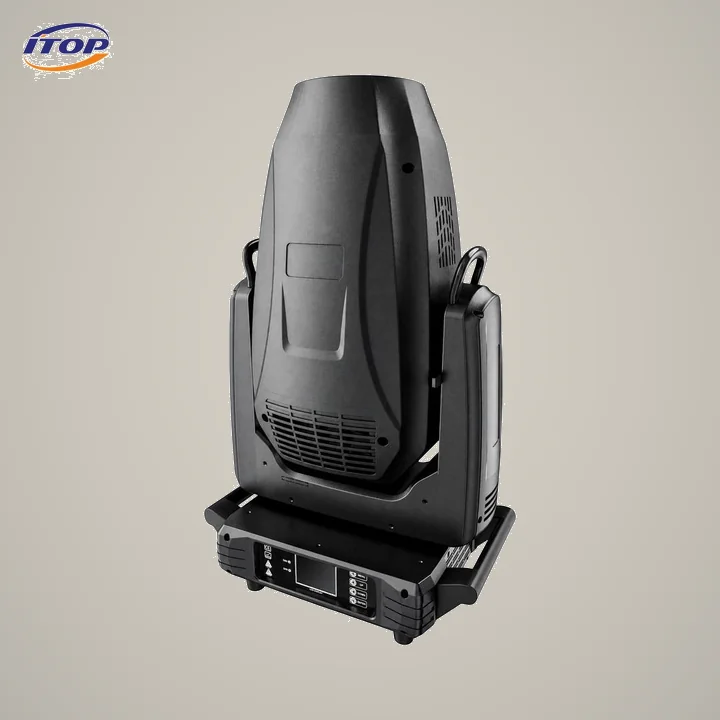

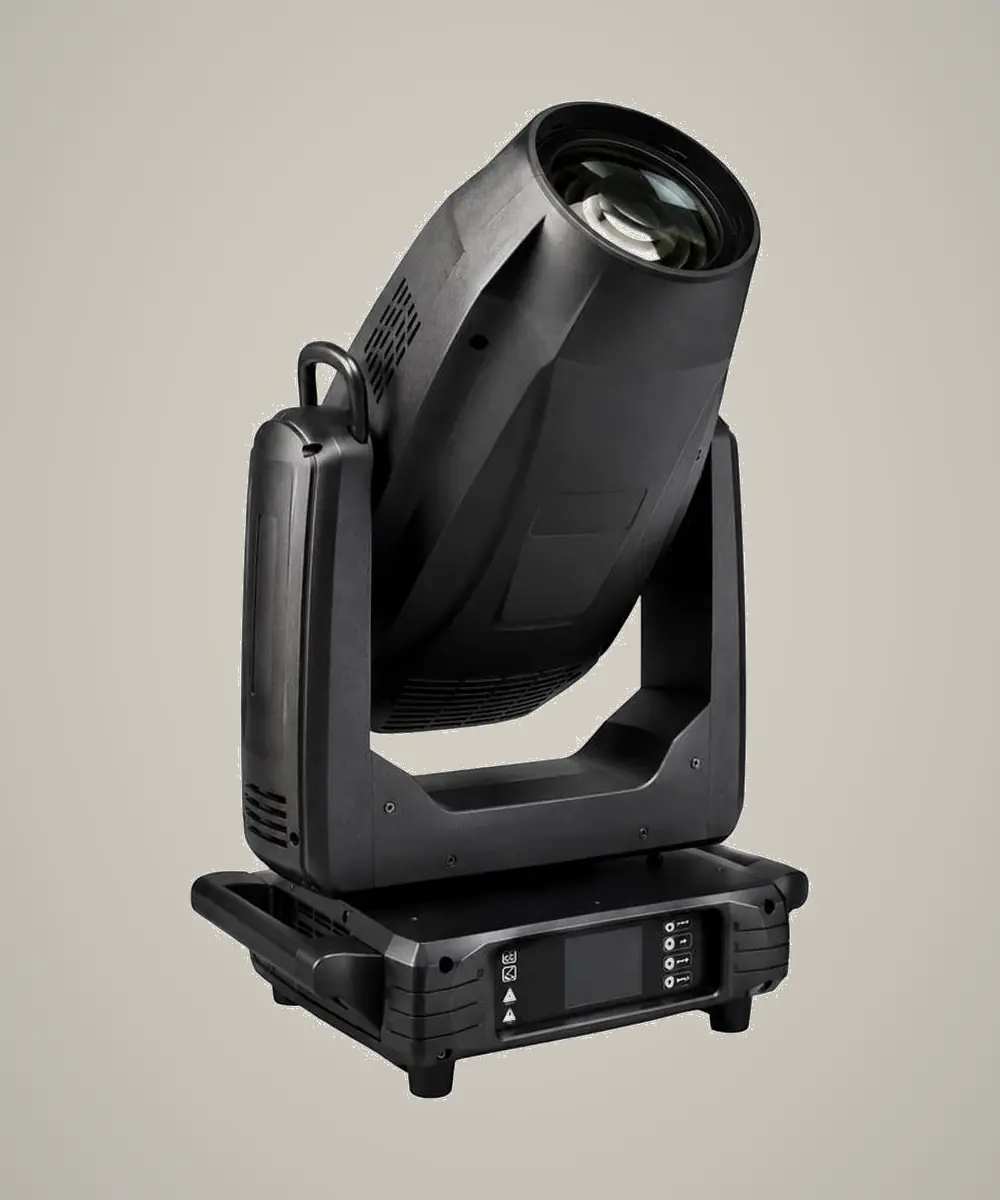

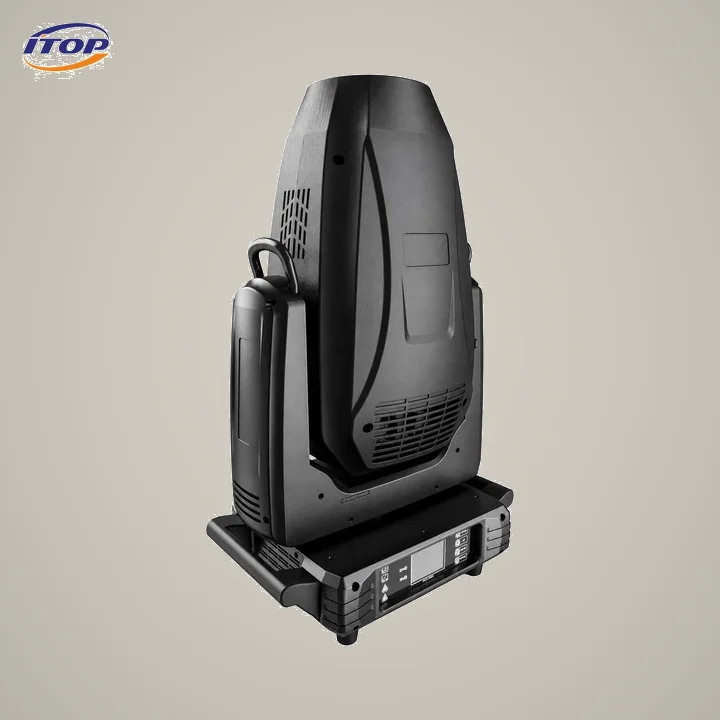

CL1200P is an LED Profile moving head light with LED 1200 module light source, 1500W rated power, 7200K color temperature, 24,000LM luminous flux, CMY color mixing, CTO 2800K-6000K, Beam / Spot / Wash / Framing 4-in-1 optical design, fixed gobos, rotating gobos, rotating prism, framing system, frost, iris, DMX512, RDM and 37CH control mode.
| Power consumption | 1500W |
|---|---|
| Power input | AC100-240V, 50/60Hz |
| Light source | LED 1200 module |
| LED configuration | LED 1200 module |
| Color system | 7 colors + white; Independent CMY color mixing system; Independent CTO 2800K-6000K linear adjustment |
| CCT / color temperature | 7200K; CTO 2800K-6000K |
| CRI | Standard mode Ra > 75; High CRI mode Ra > 90 |
| Luminous flux | 24000LM |
| Beam angle | Beam mode: 2°-6°; Spot mode: 10°-50°; Wash mode: 0°-52° |
| Zoom range | Beam mode: 2°-6°; Spot mode: 10°-50°; Wash mode: 0°-52° |
| Control | DMX512; RDM |
| DMX channels | 37CH |
| Dimming | 0-100% linear dimming |
| Strobe | Up to 25Hz; Random strobe; Pulse strobe |
| Pan | 540°, 16bit |
| Tilt | 270°, 16bit |
| Prism | Rotating 4-facet prism + 4-row prism |
| Gobo wheel | Fixed Gobo Wheel: 9 fixed gobos + white circle; Rotating Gobo Wheel: 7 pluggable gobos, outer diameter 27.9mm, effective diameter 16.5mm, thickness 1.1mm |
| Color wheel | 7 colors + white |
| Effect wheel | Dynamic flame effect; Flowing water effect |
| Framing system | 4 independent framing blades; each blade can close independently; each blade can rotate 90° |
| Iris | 5%-100% smooth adjustment |
| Frost | 0-100% linear frost |
| Display | 2.5-inch touch LCD display; Chinese / English display; 180° display rotation |
| IP rating | IP20 |
| Working temperature | 0-45℃ |
| Housing material | Flame-retardant, high-temperature resistant housing |
| Net weight | 40KG |
Specifications are based on the current CL1200P product record and may change without prior notice. Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is CL1200P?
CL1200P is a LED Profile Moving Head Light. CL1200P is an LED Profile moving head light with LED 1200 module light source, 1500W rated power, 7200K color temperature, 24,000LM luminous flux, CMY color mixing, CTO 2800K-6000K, Beam / Spot / Wash / Framing 4-in-1 optical design, fixed gobos, rotating gobos, rotating prism, framing system, frost, iris, DMX512, RDM and 37CH control mode.
What light source does CL1200P use?
The published light-source specification for CL1200P is LED 1200 module.
What is the IP rating of CL1200P?
The published protection rating for CL1200P is IP20. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does CL1200P provide?
The published optical range for CL1200P is Beam mode: 2°-6°; Spot mode: 10°-50°; Wash mode: 0°-52°.
Which DMX channel modes does CL1200P support?
The current product record lists 37CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is CL1200P typically used?
Recommended applications include Theater lighting, Stage performance, Concerts and live shows, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with CL1200P
Overview
CL1200P is a led profile moving head light in the LED Profile range. Its published light-source specification is LED 1200 module, the optical record lists Beam mode: 2°-6°; Spot mode: 10°-50°; Wash mode: 0°-52°, and the enclosure rating is IP20. The available control record lists 37CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Theater lighting, Stage performance, Concerts and live shows, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The Beam mode: 2°-6°; Spot mode: 10°-50°; Wash mode: 0°-52° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP20 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 37CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, LED 1200 module, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
