CL150B

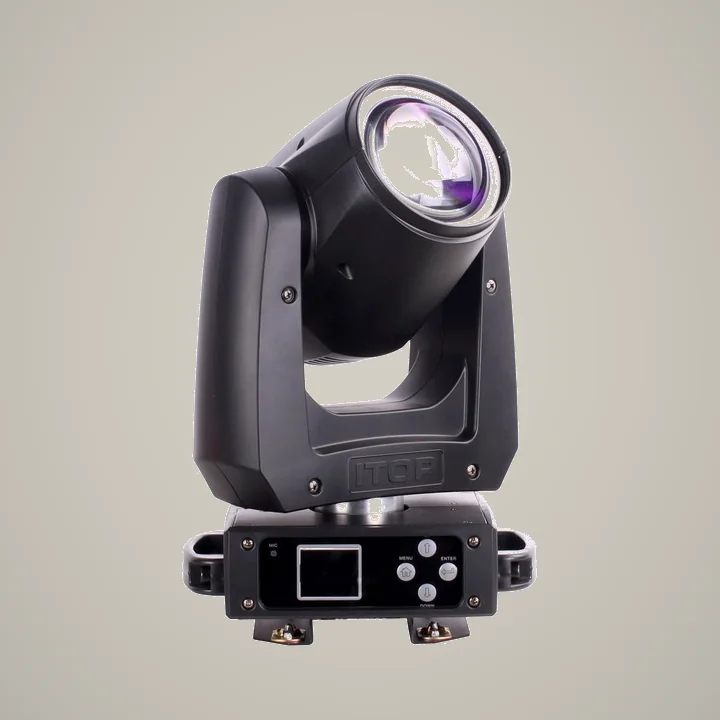

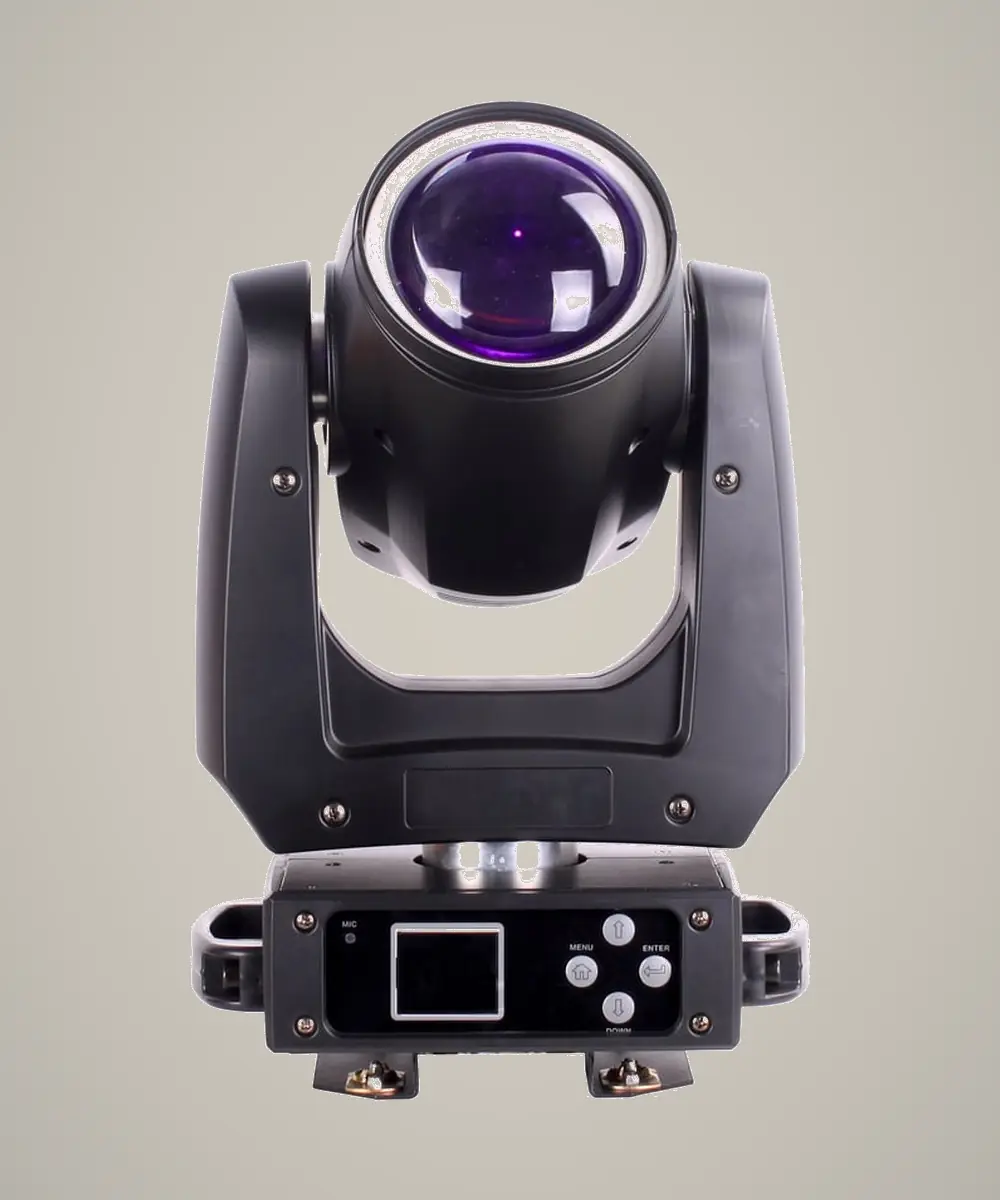

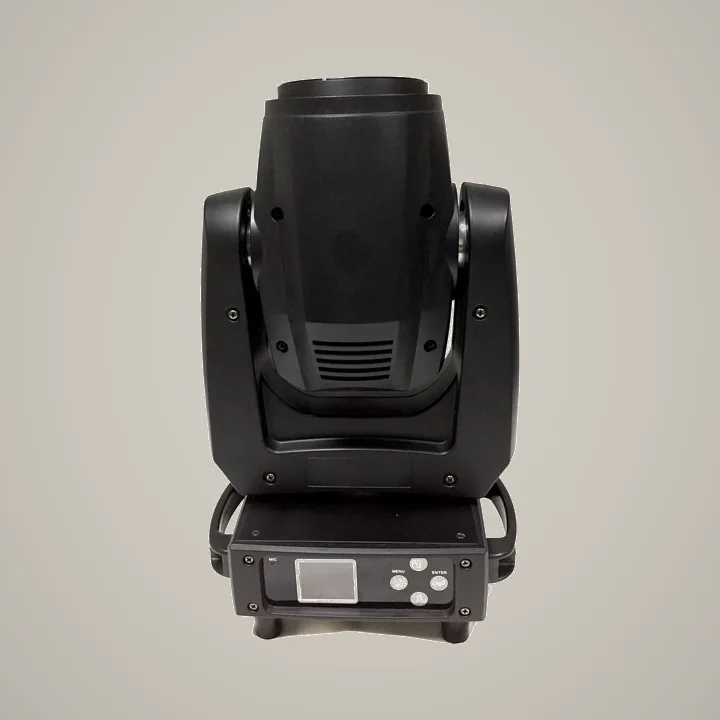

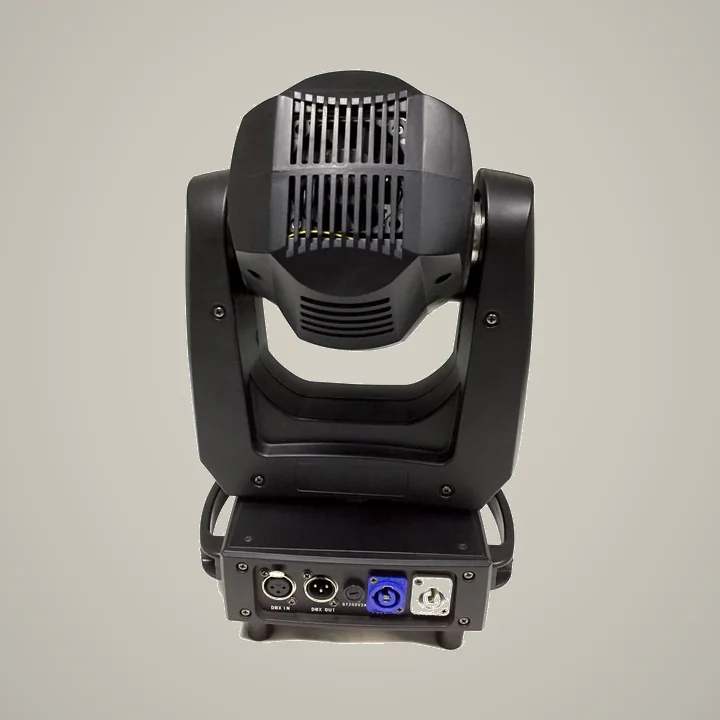

CL150B is an LED Beam Effect moving head light with 150W LED light source, CCT 7500K, 2° beam angle, 11 colors + open, 11 static gobos + open, eight facet prism, DMX512 control, RDM protocol and 15CH control mode.
| Power consumption | 200W |
|---|---|
| Power input | AC90-260V, 50/60HZ |
| Light source | 150W LED, CCT 7500K |
| LED configuration | 150W LED |
| Color system | 11 colors + open; half color and rainbow effect |
| CCT / color temperature | CCT 7500K |
| Beam angle | 2° |
| Control | DMX512 control, RDM protocol, built-in programs |
| DMX channels | 15CH |
| Dimming | 0-100% linear dimming |
| Strobe | 1-25Hz or random |
| Pan | 540° 16bit, automatic Pan/Tilt position correction |
| Tilt | 270° 16bit, automatic Pan/Tilt position correction |
| Prism | Eight facet prism |
| Gobo wheel | Static wheel: 11 gobos + open; Bi-directional rotation with gobo shaking |
| Color wheel | 11 colors + open; half color and rainbow effect |
| Display | LCD display; Four buttons touch panel |
| IP rating | IP22 |
| Product size | 430 x 340 x 230mm |
| Net weight | 8KG |
Specifications are based on the current CL150B product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is CL150B?
CL150B is a LED Beam Effect Moving Head Light. CL150B is an LED Beam Effect moving head light with 150W LED light source, CCT 7500K, 2° beam angle, 11 colors + open, 11 static gobos + open, eight facet prism, DMX512 control, RDM protocol and 15CH control mode.
What light source does CL150B use?
The published light-source specification for CL150B is 150W LED, CCT 7500K.
What is the IP rating of CL150B?
The published protection rating for CL150B is IP22. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does CL150B provide?
The published optical range for CL150B is 2°.
Which DMX channel modes does CL150B support?
The current product record lists 15CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is CL150B typically used?
Recommended applications include Stage performance, Concerts and live shows, Clubs and bars, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with CL150B
Overview
CL150B is a led beam effect moving head light in the LED Beam range. Its published light-source specification is 150W LED, CCT 7500K, the optical record lists 2°, and the enclosure rating is IP22. The available control record lists 15CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Stage performance, Concerts and live shows, Clubs and bars, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 2° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP22 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 15CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 150W LED, CCT 7500K, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
