PN800W

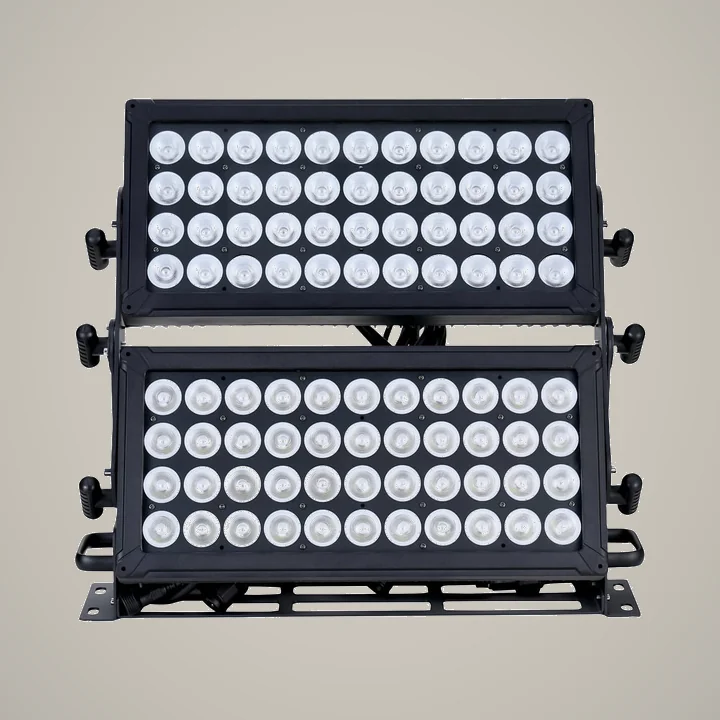

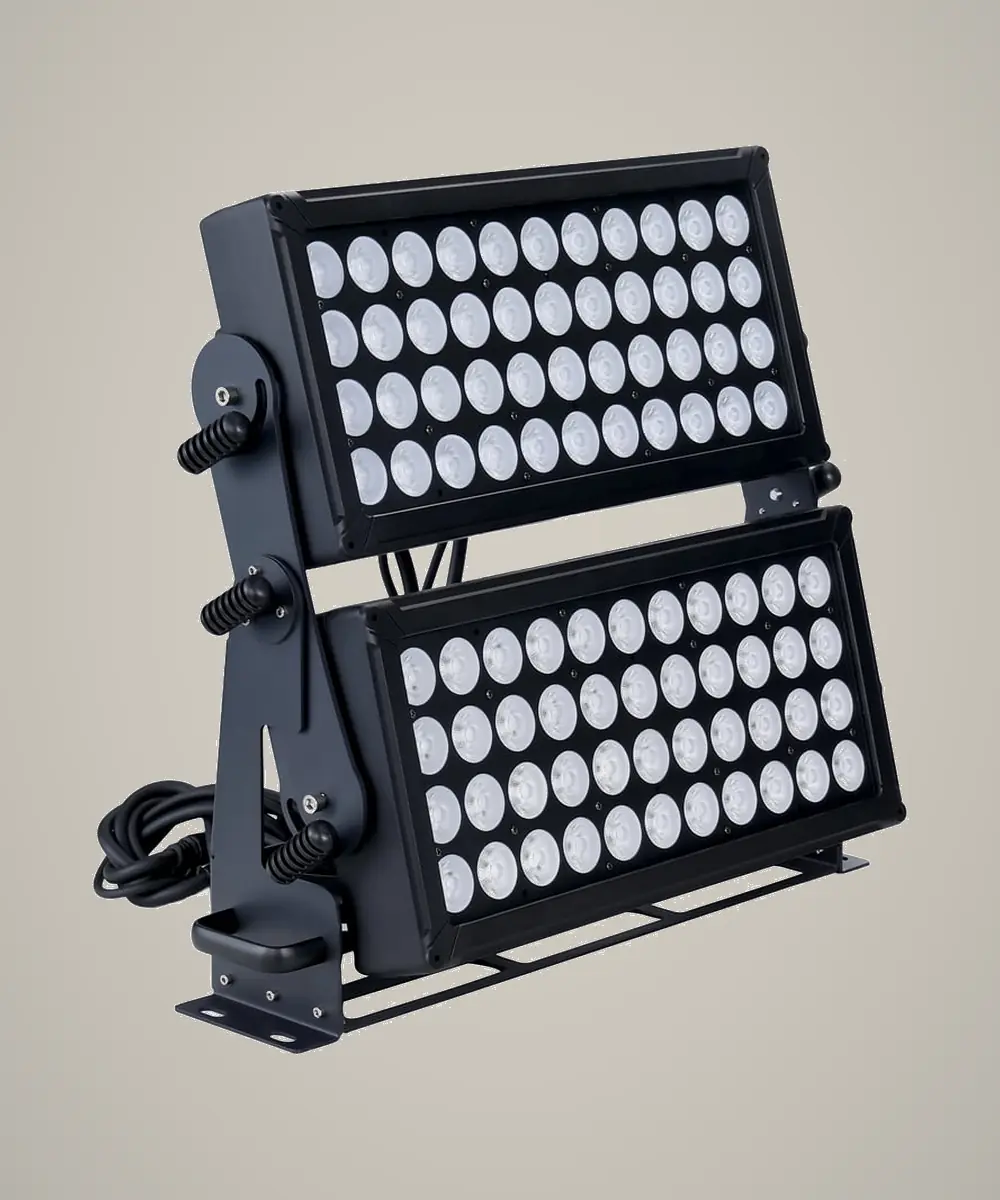

PN800W is a full-color LED flood light with approx. 800W power consumption, RGBW color mixing, 4/8CH DMX channel modes, DMX512, Auto mode, Master-slave, Sound active control, color jump, color fade, pulse effects, strobe, color screen display and Chinese / English menu.
| Power consumption | Approx. 800W, may vary depending on driver board |
|---|---|
| Power input | AC90-240V |
| Color system | RGBW; Fixed color output; Color jump; Color fade; Pulse effect; Sound active effect |
| Control | DMX512; Auto mode; Master-slave; Sound active; Auto color change |
| DMX channels | 4/8CH |
| Dimming | RGBW dimming; Master dimming; Linear dimming level: 01-30 |
| Strobe | RGBW master strobe; Strobe speed: 01-99, slow to fast |

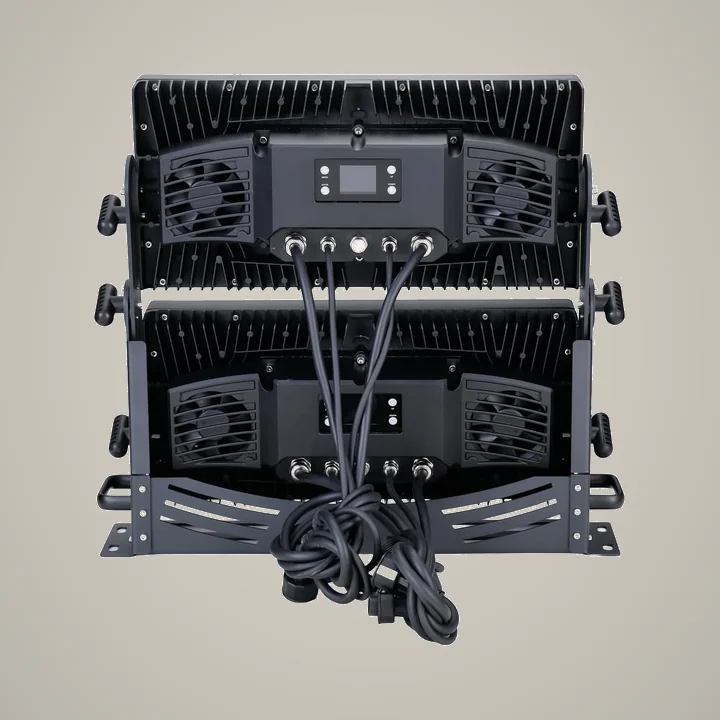

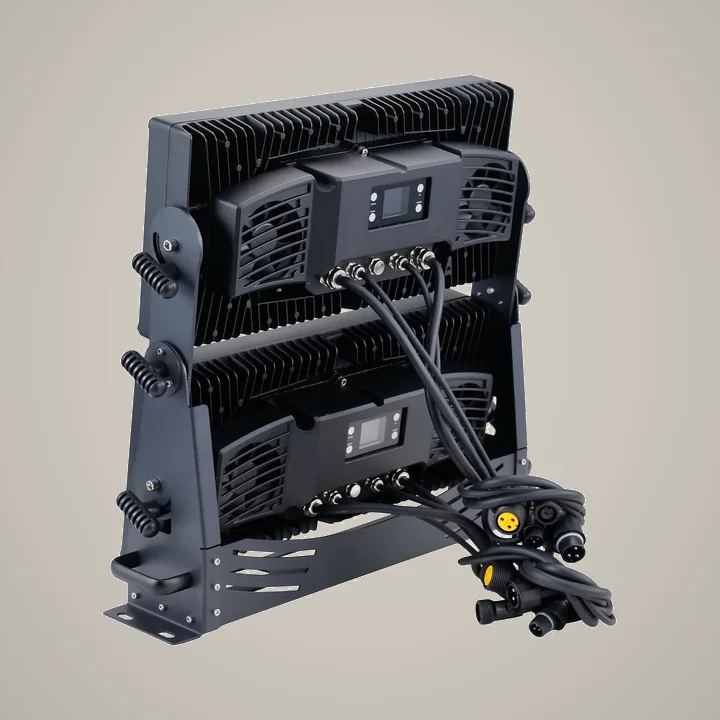

| Display | Color screen display; Chinese / English menu; Display direction switch; MENU / UP / DOWN / ENTER buttons |
| Working temperature | Temperature protection setting: 50-85; Fan speed control setting: 45-70; Operating temperature range to be confirmed |
Specifications are based on the current PN800W product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is PN800W?
PN800W is a LED Flood Light. PN800W is a full-color LED flood light with approx. 800W power consumption, RGBW color mixing, 4/8CH DMX channel modes, DMX512, Auto mode, Master-slave, Sound active control, color jump, color fade, pulse effects, strobe, color screen display and Chinese / English menu.
What light source does PN800W use?
The published light-source specification for PN800W is Datasheet pending.
What is the IP rating of PN800W?
The published protection rating for PN800W is TBC. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does PN800W provide?
The published optical range for PN800W is TBC.
Which DMX channel modes does PN800W support?
The current product record lists 4/8CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is PN800W typically used?
Recommended applications include Stage lighting, Architectural lighting and wall washing, Outdoor events and live shows, Clubs, bars and rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with PN800W
Overview
PN800W is a led flood light in the LED Flood range. Its published light-source specification is Datasheet pending, the optical record lists TBC, and the enclosure rating is TBC. The available control record lists 4/8CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Stage lighting, Architectural lighting and wall washing, Outdoor events and live shows, Clubs, bars and rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The TBC optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published TBC rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 4/8CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, Datasheet pending, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
