CL1940Z

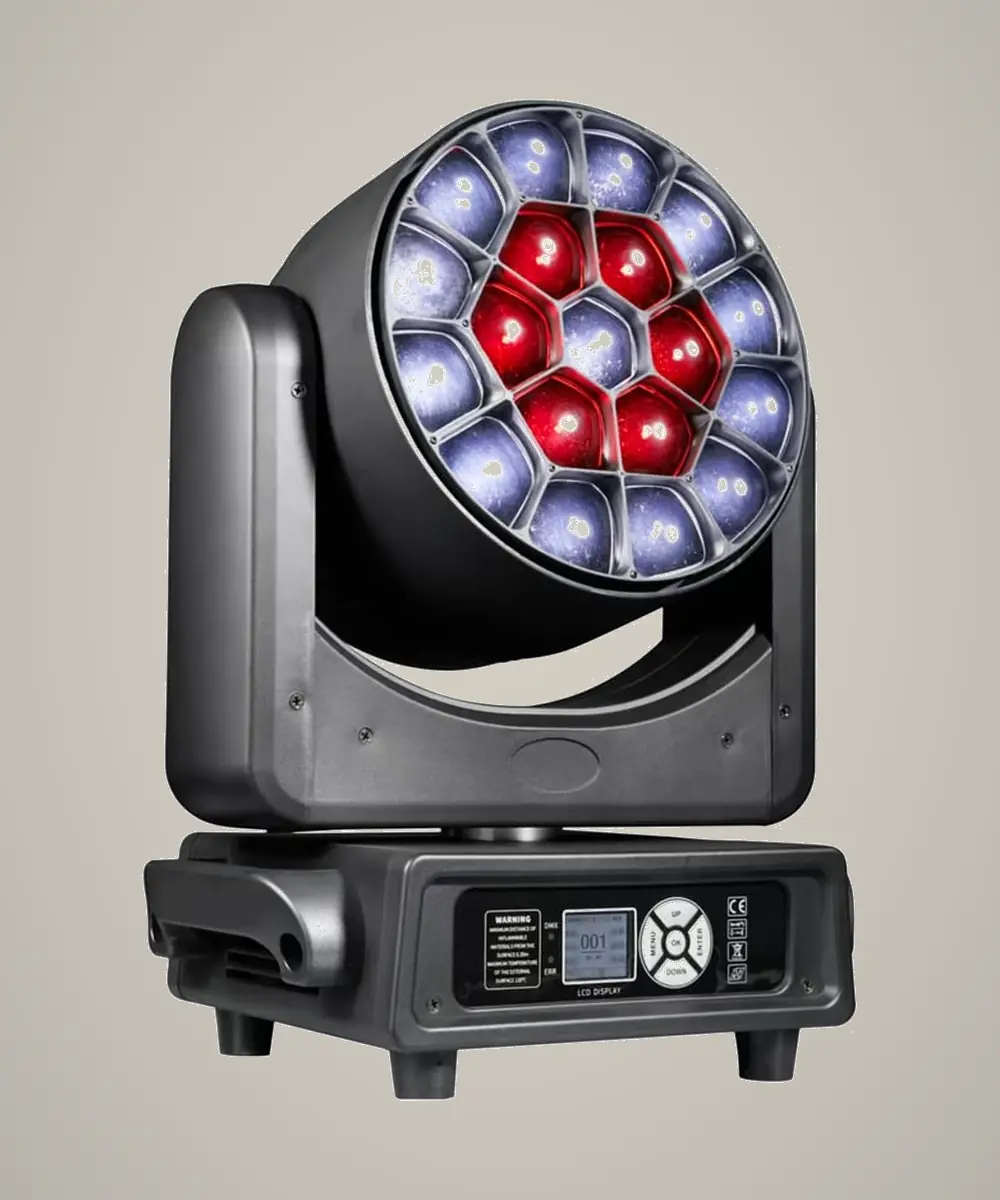

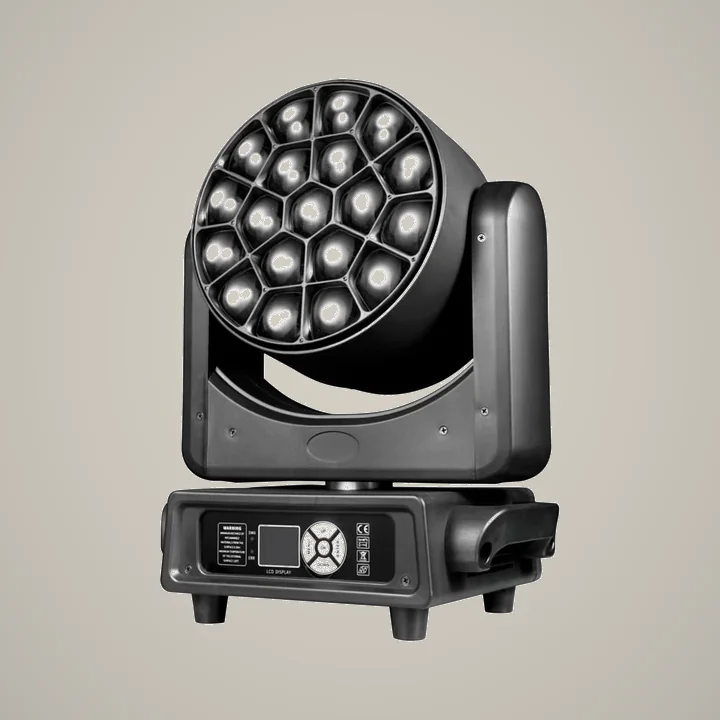

CL1940Z is an LED Wash moving head light with 19pcs 40W RGBW 4 in 1 LEDs, 4-55° zoom range, RGBW color mixing, pixel control, built-in color macro programs, 0-100% linear dimming, DMX512 control, RDM function and 18/24/68CH control modes.
| Power consumption | 820W |
|---|---|
| Power input | AC90-260V, 50/60HZ |
| Light source | 19pcs 40W LED RGBW 4 in 1 |
| LED configuration | 19pcs 40W RGBW 4 in 1 LEDs |
| Color system | Uniform RGBW color mixing system; Pixel control, each LED individually controllable; Multiple color macro programs; Preset color macro function |
| Beam angle | 4-55° |
| Zoom range | 4-55° |
| Control | DMX512 control; RDM function; Built-in programs; DMX cable upgrade; Remote DMX address setting and fixture reset from controller |
| DMX channels | 18/24/68CH |
| Dimming | 0-100% linear dimming |
| Strobe | High-speed electronic strobe; 1-25Hz or random strobe |
| Pan | 540° 16bit, automatic Pan/Tilt correction reset function |
| Tilt | 270° 16bit, automatic Pan/Tilt correction reset function |
| Display | High-brightness color LCD display; 5 buttons design |
| IP rating | IP22 |
Specifications are based on the current CL1940Z product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is CL1940Z?
CL1940Z is a LED Wash Moving Head Light. CL1940Z is an LED Wash moving head light with 19pcs 40W RGBW 4 in 1 LEDs, 4-55° zoom range, RGBW color mixing, pixel control, built-in color macro programs, 0-100% linear dimming, DMX512 control, RDM function and 18/24/68CH control modes.
What light source does CL1940Z use?
The published light-source specification for CL1940Z is 19pcs 40W LED RGBW 4 in 1.
What is the IP rating of CL1940Z?
The published protection rating for CL1940Z is IP22. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does CL1940Z provide?
The published optical range for CL1940Z is 4-55°.
Which DMX channel modes does CL1940Z support?
The current product record lists 18/24/68CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is CL1940Z typically used?
Recommended applications include Stage performance, Concerts and live shows, Clubs and bars, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with CL1940Z
Overview
CL1940Z is a led wash moving head light in the LED Wash range. Its published light-source specification is 19pcs 40W LED RGBW 4 in 1, the optical record lists 4-55°, and the enclosure rating is IP22. The available control record lists 18/24/68CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Stage performance, Concerts and live shows, Clubs and bars, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 4-55° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP22 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 18/24/68CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 19pcs 40W LED RGBW 4 in 1, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
