HL550BSW

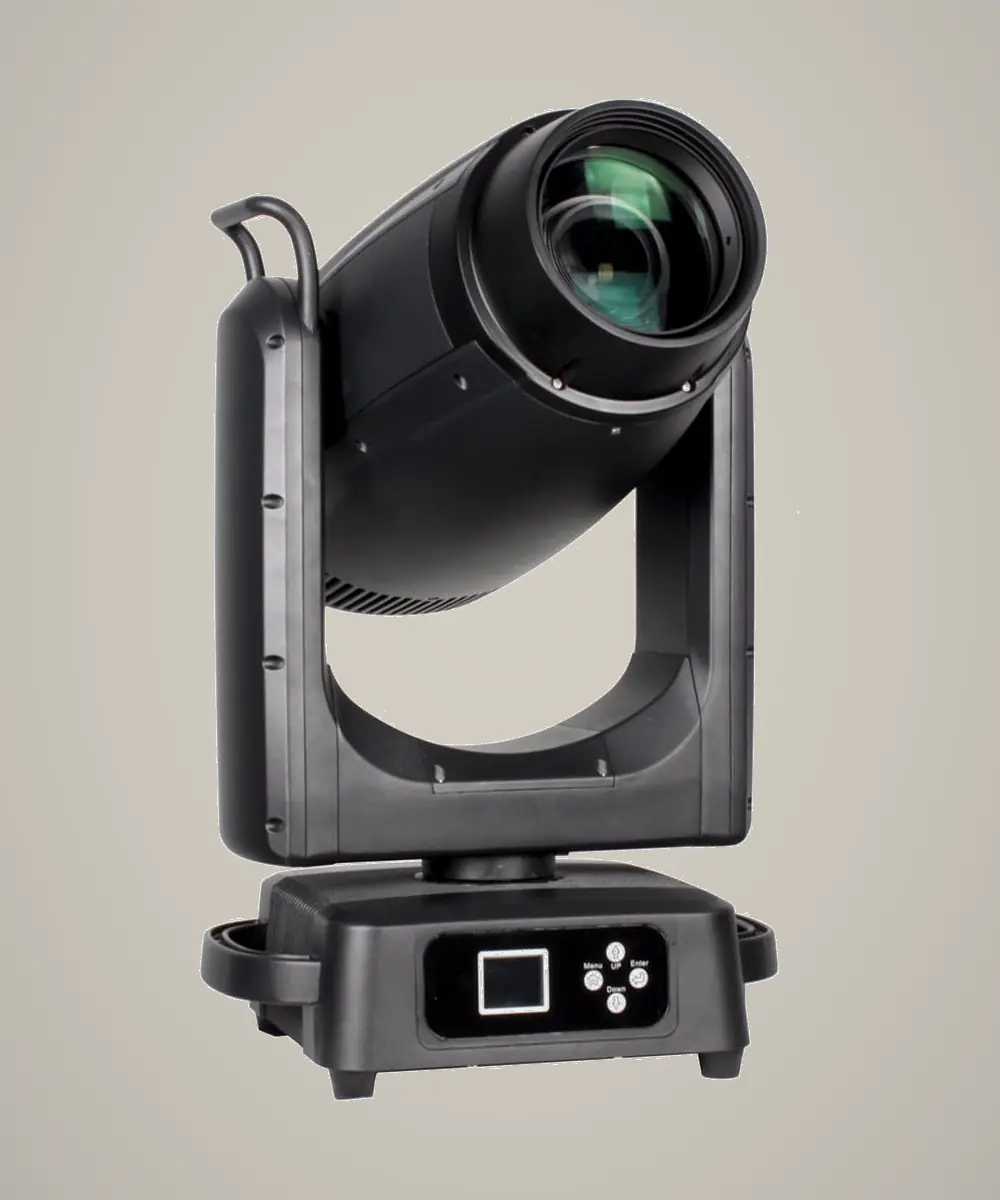

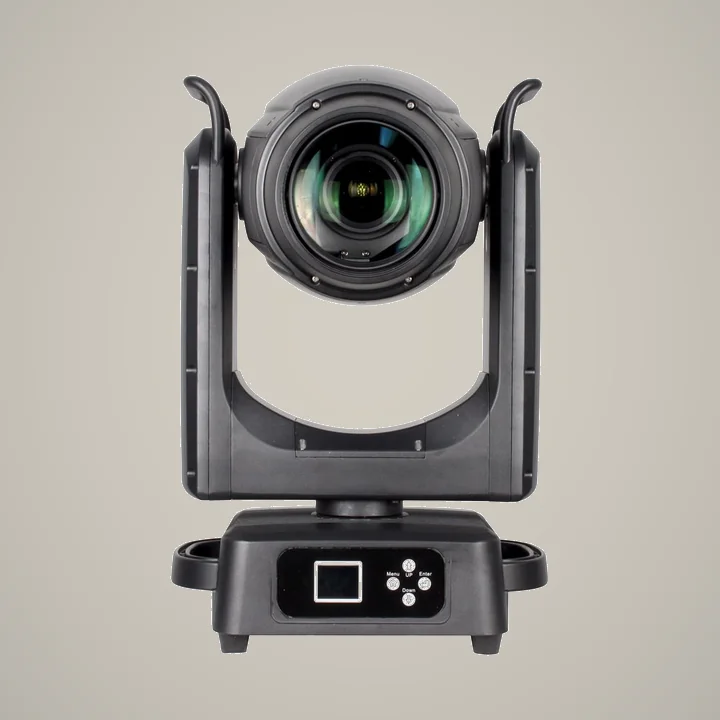

HL550BSW is an IP66 LED 3IN1 moving head light with 550W LED light source, CCT 7500K, 2-40° beam angle, CMY color mixing, linear CTO, 14-color wheel, rotating gobos, static gobos, four facet prism, linear prism, medium frost, DMX512 control, RDM protocol and 22CH/25CH control modes.
| Power consumption | 480W |
|---|---|
| Power input | AC90-260V, 50/60HZ |
| Light source | 550W LED, CCT 7500K |
| LED configuration | 550W LED |
| Color system | Color wheel: 14 colors + open; CMY color mixing + linear CTO; Half color and rainbow effect |
| CCT / color temperature | CCT 7500K |
| Beam angle | 2-40° |
| Zoom range | 2-40° |
| Control | DMX512 control; RDM protocol; Built-in programs; DMX upgrade; Remote reset DMX address |
| DMX channels | 22CH/25CH |
| Dimming | 0-100% linear dimming |
| Strobe | 1-25Hz or random |
| Pan | 540° 16bit, automatic Pan/Tilt position correction |
| Tilt | 270° 16bit, automatic Pan/Tilt position correction |
| Prism | Four facet prism; Linear prism |
| Gobo wheel | Rotating Gobo Wheel: 7 gobos + open; Static Gobo Wheel: 11 gobos + open; Bi-directional rotation with gobo shaking |
| Color wheel | 14 colors + open; CMY color mixing + linear CTO; Half color and rainbow effect |
| Frost | 1 medium frost |
| Display | LCD display; Graphical menu display; Four buttons touch panel |
| IP rating | IP66 |
| Product size | 472 x 320 x 709mm |
| Net weight | 22KG |
Specifications are based on the current HL550BSW product record and may change without prior notice. CRI, Luminous flux, Packing size, Gross weight, Certification, Warranty, MOQ, Lead time require final sales confirmation.
Product questions
What type of fixture is HL550BSW?
HL550BSW is a LED IP66 3IN1 Moving Head Light. HL550BSW is an IP66 LED 3IN1 moving head light with 550W LED light source, CCT 7500K, 2-40° beam angle, CMY color mixing, linear CTO, 14-color wheel, rotating gobos, static gobos, four facet prism, linear prism, medium frost, DMX512 control, RDM protocol and 22CH/25CH control modes.
What light source does HL550BSW use?
The published light-source specification for HL550BSW is 550W LED, CCT 7500K.
What is the IP rating of HL550BSW?
The published protection rating for HL550BSW is IP66. Confirm installation conditions and the latest production specification with iTOPLITE before use.
What beam or zoom range does HL550BSW provide?
The published optical range for HL550BSW is 2-40°.
Which DMX channel modes does HL550BSW support?
The current product record lists 22CH/25CH. Contact iTOPLITE for the latest DMX chart and firmware-specific documentation.
Where is HL550BSW typically used?
Recommended applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Rental projects. Final fixture selection should account for throw distance, required output, control plan and environmental conditions.
Planning with HL550BSW
Overview
HL550BSW is a led ip66 3in1 moving head light in the Outdoor Hybrid range. Its published light-source specification is 550W LED, CCT 7500K, the optical record lists 2-40°, and the enclosure rating is IP66. The available control record lists 22CH/25CH. These values describe the current product record and should be checked against the production version offered for a project. Selection should begin with the required visual task and site conditions rather than one headline value.
Where it is used
The published applications include Outdoor events, Concerts and live shows, Stage performance and festivals, Rental projects. In a real design, each application changes the priorities. Touring teams may focus on handling, repeatable setup and control-library consistency. Fixed installations may give more weight to access, operating cycles and planned maintenance. Outdoor work also requires compatible connections, distribution and procedures; the fixture rating does not protect unrelated parts of the system.
Reading the specifications
The 2-40° optical specification should be evaluated at the actual throw distance and target size. Request photometric data or test a production-representative sample when beam coverage or camera exposure is critical. The published IP66 rating describes enclosure protection under defined conditions, not permission to ignore mounting orientation, seals, connectors or severe-weather decisions. The 22CH/25CH control entry identifies the available channel footprint; obtain the current DMX chart and match it to the intended firmware and console profile.
The light-source entry, 550W LED, CCT 7500K, is not by itself a circuit-load calculation. Use the complete input-power and supply data in the specification table when planning distribution. Include clamps, safety devices, cables, cases and accessories when reviewing rigging and logistics. If a required value remains marked as pending, keep it as an approval item and obtain written confirmation before ordering.
Project and purchasing review
Prepare a short requirement sheet covering application, environment, mounting, throw, control, supply, required documents, accessories, quantity, spares and delivery scope. Compare alternatives at the same operating conditions. A feature is valuable only when it supports a real cue, reduces project risk or improves operation. Do not infer price, certification, warranty or performance that is not present in the approved record.
Before accepting production, confirm model identity, external condition, included accessories and control behavior. Run movement and optical functions through the modes the project will use, record the result and update the as-built patch. Keep the final data sheet, DMX chart and service contacts with the asset record so operators and technicians can trace the basis of the selection.
